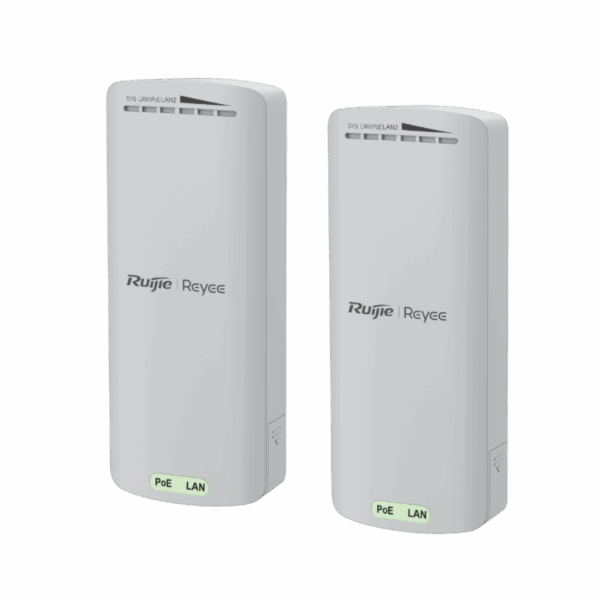

Specifications Ruijie Reyee RG-EST100-E
| Features | Description |
|---|---|
| Device Type | 2.4GHz Dual-Stream Outdoor Wireless Bridge |
| Wireless Standard | IEEE 802.11b/g/n (2.4GHz) |
| Wireless Speed | Up to 300Mbps |
| Radio Design | Single Radio 2×2 MIMO Dual-Stream |
| Antenna | Built-in Directional Antenna (70° Horizontal / 70° Vertical) |
| Ethernet Port | 1 × 10/100Mbps Fast Ethernet RJ45 Port |
| Power Supply | 24V Passive PoE |
| Maximum Distance | Up to 500m Point-to-Point Transmission |
| Protection Rating | IP55 Weatherproof |
| Management | Ruijie Cloud, Reyee App and Web Management |
| Application | CCTV, Elevator, Campus, Building-to-Building and Outdoor Wireless Link |
| Bridge Type | Outdoor Point-to-Point (PTP) Wireless Bridge |
|---|---|
| Ethernet Interface | 1 × 10/100Mbps Fast Ethernet Port |
| Wireless Capacity | Up to 60Mbps Bridging Performance (100m), 30Mbps (500m) |
| Installation | Wall Mount / Pole Mount |
| Maximum Power Consumption | ≤5W |
| Protection | IP55 Waterproof and Dust Resistant |
| SMART FEATURES | |
|---|---|
| Factory Pairing | Pre-Configured Wireless Bridge Pair for Fast Installation |
| Easy Deployment | Plug-and-Play Setup Without Complex Wireless Configuration |
| Cloud Management | Lifetime Free Remote Monitoring via Ruijie Cloud and Reyee App |
| SON | Supports Self-Organizing Network for Easy Network Deployment |
| Bridge Speed Test | Supports Wireless Link Quality and Throughput Testing |
| Security | Supports WPA2-PSK, VLAN and Network Diagnostics |
| Monitoring | Supports Remote Device Restart and Status Monitoring via Reyee App |
| GENERAL | |
|---|---|
| Power Supply | 24V Passive PoE |
| Operating Temperature | -30°C to 60°C |
| Dimensions | 68.7 × 42 × 165.5mm |
| Weight | ≤0.3kg |
| Warranty | 3 Years |
Note: The RG-EST100-E is a 2.4GHz dual-stream outdoor wireless bridge designed for short-distance Point-to-Point (PTP) connections. It supports wireless transmission up to 500m, features factory pairing, IP55 weatherproof protection, bridge speed testing, and Ruijie Cloud remote monitoring. It is suitable for CCTV, elevators, campuses, buildings, and outdoor wireless links.
Important: Ruijie Reyee RG-EST100-E is a 2.4GHz Outdoor Wireless Bridge with up to 300Mbps, 2×2 MIMO, built-in directional antenna, IP55 weatherproof protection, and Ruijie Cloud management—ideal for short-distance CCTV and wireless bridge deployments.
