| Features |
Description |
| Device Type |
5GHz Wireless Bridge PTMP Base Station |
| Wireless Standard |
IEEE 802.11a/n/ac (5GHz), IEEE 802.11b/g/n (2.4GHz Management) |
| Wireless Speed |
Up to 867Mbps (5GHz), 150Mbps (2.4GHz Management) |
| Antenna |
Built-in 15dBi Directional Antenna (120° Horizontal, 13° Vertical) |
| Ethernet Ports |
3 × 10/100/1000Mbps Gigabit RJ45 Ports |
| Power Supply |
12V DC, 24V Passive PoE or IEEE 802.3af/at PoE |
| Maximum Distance |
Up to 5km (Point-to-Multipoint) |
| Protection Rating |
IP55 Weatherproof |
| Management |
Ruijie Cloud, Reyee App, Web Management and SNMP |
| Application |
Campus, Factory, Farm, CCTV, Building-to-Building and Outdoor Wireless Bridge |
| Bridge Type |
Outdoor Point-to-Multipoint (PTMP) Base Station |
| Radio Design |
Dual Radio (2.4GHz 1×1 + 5GHz 2×2 MIMO) |
| Ethernet Interface |
3 × Gigabit RJ45 Ports |
| Maximum Power Consumption |
<12W |
| Installation |
Wall Mount / Pole Mount |
| Protection |
IP55 Waterproof, ±6kV Surge Protection and 15kV ESD Protection |
| SMART FEATURES |
| TDMA Technology |
Improves Wireless Efficiency and Reduces Interference in PTMP Deployments |
| One-Touch Pairing |
Quick Pairing for Point-to-Multipoint Deployment |
| SON |
Supports Self-Organizing Network for Automatic Network Optimization |
| Cloud Management |
Lifetime Free Remote Management via Ruijie Cloud and Reyee App |
| Spectrum Scan |
Supports Spectrum Analysis and Link Optimization |
| Bridge Management |
Supports AI Heatmap, Link Alignment Tool and Bridge Speed Test |
| Security |
Supports WPA2-PSK, VLAN, SNMP v1/v2c/v3 and Network Diagnostics |
| PTMP Capacity |
Supports Up to 16 PTMP Client Links |
| GENERAL |
| Power Supply |
12V DC, 24V Passive PoE or IEEE 802.3af/at PoE |
| Operating Temperature |
-30°C to 65°C |
| Dimensions |
355 × 124 × 48mm |
| Weight |
0.83kg |
| Warranty |
3 Years |

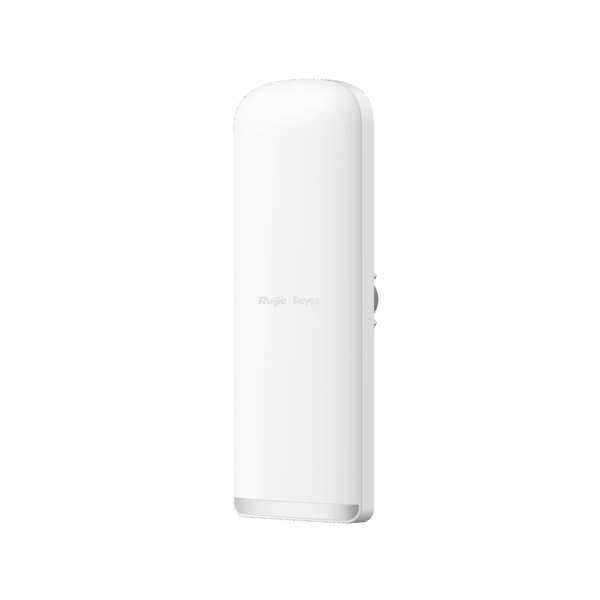

Note: The RG-EST450G is a 5GHz outdoor wireless bridge designed as a Point-to-Multipoint (PTMP) base station. It features a built-in 15dBi directional antenna with a 120° beamwidth, supports up to 16 client connections, offers up to 5km transmission distance, and provides three Gigabit Ethernet ports with flexible power options. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-EST450G is a 5GHz Wireless PTMP Base Station with up to 867Mbps, a 15dBi directional antenna, Gigabit ports, IP55 weatherproof protection, and Ruijie Cloud management—ideal for long-range wireless bridge and CCTV deployments.
