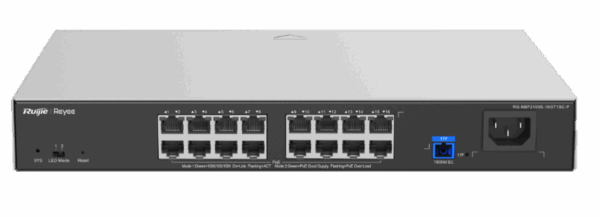

Specifications Reyee RG-NBF2100S-16GT1SC-P
| Features | Description |
|---|---|
| Product Type | Layer 2 Cloud Managed PoE+ Switch |
| Series | NBF2 Series e-Lighten Access Switch |
| Ethernet Ports | 16 × 10/100/1000BASE-T PoE+ |
| SC Port | 1 × 1G SC Optical Port |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 240W |
| Maximum PoE Output per Port | 30W |
| Switching Capacity | 34Gbps |
| Forwarding Rate | 25.296Mpps |
| Management | Ruijie Cloud / Ruijie Reyee App / Web |
| HARDWARE | |
|---|---|
| Downlink Ports | 16 × 10/100/1000Mbps RJ45 PoE+ |
| Uplink Port | 1 × 1000Mbps SC Optical Port |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE Output per Port | 30W |
| Total PoE Power Budget | 240W |
| MAC Address Table | 8K |
| Static MAC Addresses | 16 |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 34Gbps |
| Forwarding Rate | 25.296Mpps |
| PoE Power Budget | 240W |
| PoE Power per Port | Up to 30W |
| MAC Address Capacity | 8K |
| OPTICAL NETWORK | |
|---|---|
| SC Uplink | 1 × Gigabit SC Optical Port |
| Passive Optical Networking | Supported |
| Optical Connection | Direct Fiber Connection, Fiber Module-Free |
| BOSA Transmit Power | 0 to 3dB |
| BOSA Receiving Sensitivity | -8 to -28dB |
| Digital Optical Monitoring | Temperature / Voltage / Current / Rx Power / Tx Power |
| Maximum Bandwidth per ONU | 1Gbps |
| NETWORK FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q VLAN |
| VLAN Assignment | Supported, up to 16 VLANs |
| Port Isolation | Supported |
| Port Mirroring | Supported |
| Loop Prevention | Supported |
| Loop Detection | Supported |
| Flow Control | Supported |
| Broadcast Storm Suppression | Supported |
| Port Speed Limiting | Supported |
| DHCP Snooping | Supported |
| CPU Protection | Supported |
| POE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 240W |
| Maximum Power per Port | 30W |
| PoE Management | Supported |
| Remote Camera Reboot | Supported |
| PoE Device Detection | Automatic |
| Non-PoE Device Protection | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Mobile Management | Ruijie Reyee App |
| Web Management | Supported |
| Cloud Configuration | Supported |
| Remote Management | Supported |
| Network Diagnosis | Supported |
| AI Troubleshooting | Supported via Cloud |
| PROTECTION | |
|---|---|
| Port Surge Protection | Common Mode 6kV |
| Power Surge Protection | 4kV |
| Loop Protection | Supported |
| PoE Protection | Automatic PoE Device Detection |
| POWER & GENERAL | |
|---|---|
| Power Supply | Built-in AC Power Supply |
| Input Voltage | 100–240V AC |
| Maximum Power Consumption | ≤290W |
| Dimensions | 330 × 229 × 44mm |
| Installation | Rack Mounting / Desktop / Wall Mounting |
| Net Weight | 2.95kg |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5%–95% RH, Non-Condensing |
| MTBF | >200,000 Hours |
| Warranty | 3 Years |
Note: The Reyee RG-NBF2100S-16GT1SC-P is a 1G Layer 2 Cloud Managed PoE+ Switch designed for optical access networks. It features 16 × 10/100/1000BASE-T PoE+ ports and 1 × Gigabit SC optical uplink, with a total PoE power budget of 240W and up to 30W per port. It provides 34Gbps switching capacity and 25.296Mpps forwarding performance. The switch supports direct fiber connection, passive optical networking, VLAN, loop prevention, port isolation, DHCP snooping, remote camera reboot and free Ruijie Cloud management.
Important: The Reyee RG-NBF2100S-16GT1SC-P is a 1G Layer 2 Cloud Managed PoE+ Switch featuring 16 × Gigabit PoE+ ports and 1 × Gigabit SC optical uplink. It provides a total 240W PoE power budget with up to 30W per port. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, Passive Optical Networking, Loop Prevention, Port Isolation and Remote Camera Reboot. It can be managed through Ruijie Cloud, Ruijie Reyee App and Web management. The device measures 330 × 229 × 44mm, supports rack mounting, and provides 6kV common-mode port surge protection.
