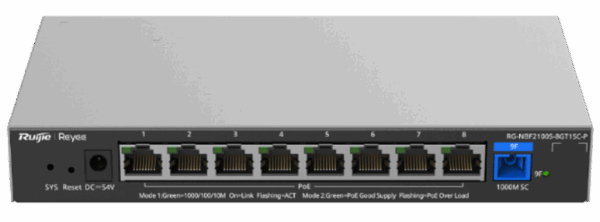

Specifications Reyee RG-NBF2100S-8GT1SC-P
| Features | Description |
|---|---|
| Product Type | Layer 2 Cloud Managed PoE+ Switch |
| Series | NBF2 Series e-Lighten Access Switch |
| Ethernet Ports | 8 × 10/100/1000BASE-T PoE+ |
| SC Port | 1 × 1G SC Optical Port |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 120W |
| Maximum PoE Output per Port | 30W |
| Switching Capacity | 18Gbps |
| Forwarding Rate | 13.392Mpps |
| Management | Ruijie Cloud / Ruijie Reyee App / Web |
| HARDWARE | |
|---|---|
| Downlink Ports | 8 × 10/100/1000Mbps RJ45 PoE+ |
| Uplink Port | 1 × 1000Mbps SC Optical Port |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE Output per Port | 30W |
| Total PoE Power Budget | 120W |
| MAC Address Table | 8K |
| Static MAC Addresses | 16 |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 18Gbps |
| Forwarding Rate | 13.392Mpps |
| PoE Power Budget | 120W |
| PoE Power per Port | Up to 30W |
| MAC Address Capacity | 8K |
| OPTICAL NETWORK | |
|---|---|
| SC Uplink | 1 × Gigabit SC Optical Port |
| Passive Optical Networking | Supported |
| Optical Connection | Direct Fiber Connection, Fiber Module-Free |
| BOSA Transmit Power | 0 to 3dB |
| BOSA Receiving Sensitivity | -8 to -28dB |
| NETWORK FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q VLAN |
| VLAN Assignment | Supported |
| Port Isolation | Supported |
| Port Mirroring | Supported |
| Loop Prevention | Supported |
| Loop Detection | Supported |
| Flow Control | Supported |
| Broadcast Storm Suppression | Supported |
| Port Speed Limiting | Supported |
| Cable Detection | Supported |
| POE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 120W |
| Maximum Power per Port | 30W |
| PoE Management | Supported |
| Remote Camera Reboot | Supported |
| PoE Device Detection | Automatic |
| Non-PoE Device Protection | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Mobile Management | Ruijie Reyee App |
| Web Management | Supported |
| Cloud Configuration | Supported |
| Remote Management | Supported |
| Network Diagnosis | Supported |
| AI Troubleshooting | Supported via Cloud |
| PROTECTION | |
|---|---|
| Port Surge Protection | Common Mode 6kV |
| Loop Protection | Supported |
| PoE Protection | Automatic PoE Device Detection |
| POWER & GENERAL | |
|---|---|
| Power Supply | External Power Adapter |
| Maximum Power Consumption | ≤130W |
| Dimensions | 202 × 108 × 28mm |
| Installation | Desktop / Wall Mounting / Waterproof or Weak-Current Box |
| Net Weight | 0.5kg |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5%–95% RH, Non-Condensing |
| MTBF | >200,000 Hours |
| Warranty | 3 Years |
Note: The Reyee RG-NBF2100S-8GT1SC-P is a 1G Layer 2 Cloud Managed PoE+ Switch designed for optical access networks. It features 8 × 10/100/1000BASE-T PoE+ ports and 1 × Gigabit SC optical uplink, with a total PoE power budget of 120W and up to 30W per port. It provides 18Gbps switching capacity and 13.392Mpps forwarding performance. The switch supports direct fiber connection, passive optical networking, VLAN, loop prevention, port isolation, remote camera reboot and free Ruijie Cloud management.
Important: The Reyee RG-NBF2100S-8GT1SC-P is a 1G Layer 2 Cloud Managed PoE+ Switch featuring 8 × Gigabit PoE+ ports and 1 × Gigabit SC optical uplink. It provides a total 120W PoE power budget with up to 30W per port. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, Passive Optical Networking, Loop Prevention, Port Isolation and Remote Camera Reboot. It can be managed through Ruijie Cloud, Ruijie Reyee App and Web management. The compact design measures only 202 × 108 × 28mm and provides 6kV common-mode port surge protection.
