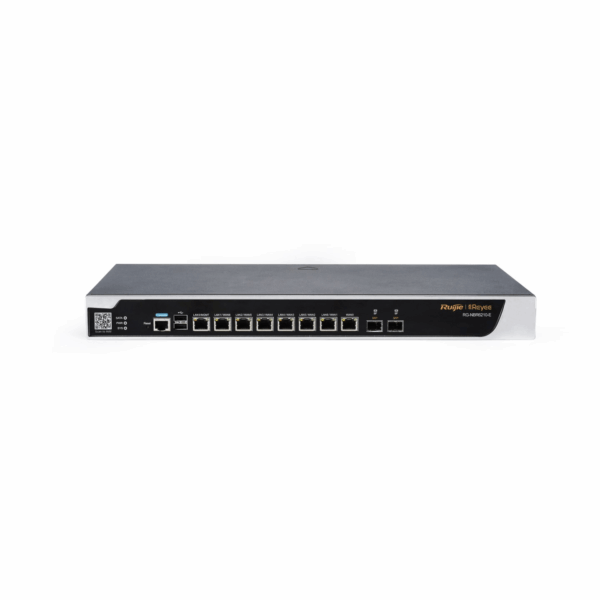

Specifications Reyee RG-NBR6210-E

Features	Description
Product Type	High-Performance Cloud Managed Security Router
Series	Reyee NBR6000 Series
WAN Ports	1 × 10/100/1000BASE-T
LAN Ports	1 × 10/100/1000BASE-T
LAN/WAN Switchable Ports	6 × 10/100/1000BASE-T + 2 × 1G SFP
Maximum WAN Ports	7 × Gigabit RJ45 + 2 × 1G SFP
Throughput	Up to 2.5Gbps
Recommended Clients	Up to 1,000 Clients
IPSec Tunnels	Up to 1,000
Management	Ruijie Cloud

HARDWARE
WAN Port	1 × 10/100/1000BASE-T
LAN Port	1 × 10/100/1000BASE-T
LAN/WAN Switchable Ports	6 × 10/100/1000BASE-T
SFP Ports	2 × 1GBase-X SFP
Console Port	1 × RS-232 Console Port
USB Port	1 × USB Port
CPU	3 Cores, 1.2GHz
RAM	2GB
Flash Memory	8MB
Optional Storage	1TB SATA HDD
HDD	Not Included

PERFORMANCE
Maximum Throughput	2.5Gbps
Recommended Clients	1,000 Clients
Maximum IPSec Tunnels	1,000
L7 DPI	Supported
Application Recognition	Supported
Intelligent Flow Control	Supported

NETWORK FEATURES
PPPoE Client	Supported
PPPoE Server	Supported via CLI
DHCP Server	Supported
DHCP Snooping	Supported
DNS Client	Supported
DNS Server	Supported
DNS Proxy	Supported
DDNS	Cloud DNS
NAT	Supported
VLAN	Supported
Static Routing	Supported
RIP	Supported
OSPF	Supported
WAN Load Balancing	Supported
WAN Failover	Supported

SECURITY
Firewall	Built-in Firewall
ACL	Supported
Application Control	Supported
Application Blocking	Supported
Web Filtering	Supported
URL Filtering	Whitelist / Blacklist
Bandwidth Control	Per-User Policies / IP-Based Dynamic Bandwidth Allocation
Traffic Audit	Network Behavior Audit
L7 DPI	Supported

VPN
IPSec VPN	Supported
Maximum IPSec Tunnels	Up to 1,000
L2TP VPN	Supported
PPTP VPN	Supported
L2TP/PPTP Performance	Up to 600Mbps
L2TP/PPTP Tunnels	Up to 600
VPN Traffic Control	Intelligent Flow Control

CAPTIVE PORTAL
Portal Authentication	Supported
Password Authentication	Supported
Voucher Authentication	Supported
SMS Authentication	Supported
Marketing Portal	Supported

MANAGEMENT
Cloud Management	Ruijie Cloud
Cloud Management	Free Cloud Management
Remote Management	Supported
Open API	Supported
Network Diagnosis	Supported
Traffic Monitoring	Supported

HARD DISK & STORAGE
Internal Storage	8MB Flash Memory
HDD Bay	Supported
Optional HDD	1TB SATA HDD
HDD Included	No

POWER & GENERAL
Power Supply	100–240V AC, 50/60Hz
Maximum Power Consumption	<25W
Dimensions	440 × 200 × 43.6mm
Rack Installation	1U 19-inch Rack-mounted
Unit Weight	2.9kg
Operating Temperature	0°C to 45°C
Operating Humidity	10%–90% RH, Non-Condensing
Cooling	Fan Cooling
Certifications	CE / RoHS

Note: The Reyee RG-NBR6210-E is a high-performance cloud-managed security router featuring 8 × 10/100/1000BASE-T Ethernet ports and 2 × 1G SFP ports. It supports up to 7 Gigabit RJ45 WAN ports plus 2 SFP WAN ports for WAN load balancing and failover. The router provides up to 2.5Gbps throughput, supports up to 1,000 recommended clients and up to 1,000 IPSec tunnels. It also provides L7 DPI, application control, web filtering, bandwidth control, built-in firewall functions and free Ruijie Cloud management.

Important: The Reyee RG-NBR6210-E is a High-Performance Cloud Managed Security Router with 8 × Gigabit RJ45 ports and 2 × 1G SFP ports. It supports up to 7 Gigabit RJ45 WAN ports + 2 × 1G SFP WAN ports for WAN load balancing and failover. The router provides up to 2.5Gbps throughput, supports up to 1,000 recommended clients and up to 1,000 IPSec tunnels. It features L7 DPI, application control, web filtering, bandwidth control, built-in firewall, VPN and free Ruijie Cloud management. It also supports an optional 1TB SATA HDD and uses a 1U rack-mounted chassis.
