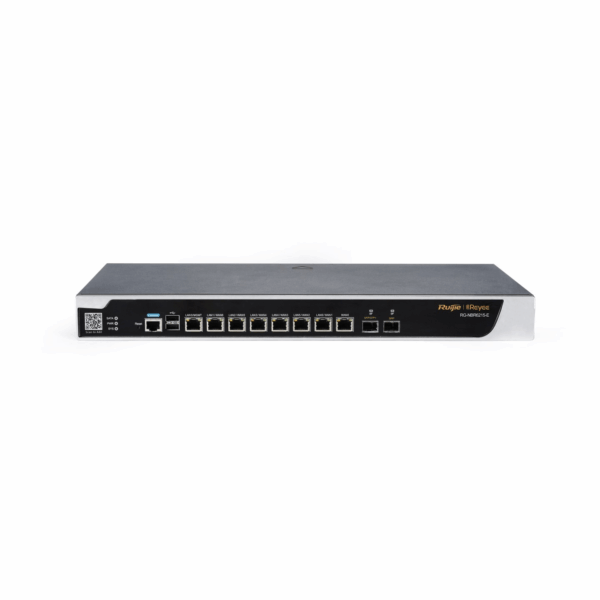

Specifications Reyee RG-NBR6215-E

Features	Description
Product Type	High-Performance Cloud Managed Security Router
Series	Reyee NBR6000 Series
WAN Port	1 × 10/100/1000BASE-T
LAN Port	1 × 10/100/1000BASE-T
LAN/WAN Switchable Ports	6 × 10/100/1000BASE-T + 1 × 1G SFP + 1 × 10G SFP+
Maximum WAN Ports	7 × Gigabit RJ45 + 1 × 1G SFP + 1 × 10G SFP+
Throughput	Up to 2.5Gbps
Recommended Clients	Up to 1,500 Clients
IPSec VPN Tunnels	Up to 1,000
Management	Ruijie Cloud

HARDWARE
WAN Port	1 × 10/100/1000BASE-T
LAN Port	1 × 10/100/1000BASE-T
LAN/WAN Switchable Ports	6 × 10/100/1000BASE-T
1G SFP Port	1 × 1G Base-X SFP
10G SFP+ Port	1 × 10G Base-X SFP+
Console Port	1 × RS-232 Console Port
USB Ports	2 × USB Ports
CPU	4 Cores, 1.2GHz
RAM	2GB
Flash Memory	8MB
eMMC	8GB
Optional HDD	1TB SATA HDD

PERFORMANCE
Throughput	2.5Gbps
Recommended Clients	1,500 Concurrent Clients and IP Devices
IPSec VPN Tunnels	Up to 1,000
L7 DPI	Supported
Application Recognition	Supported
Intelligent Flow Control	Supported
Behavior Management Rules	2,500+ Rules

NETWORK FEATURES
Internet Access Mode	PPPoE Client / DHCP Client / Static IP
PPPoE Server	Supported
DHCP Server	Supported
DHCP Snooping	Supported
DNS Client	Supported
DNS Server	Supported
DNS Proxy	Supported
DDNS	Supported
NAT	Supported
VLAN	Supported
Static Routing	Supported
RIP	Supported
OSPF	Supported
WAN Load Balancing	Supported
WAN Failover	Supported
LAN Port Aggregation	Supported

SECURITY
Firewall	Built-in Firewall
ACL	Supported
Application Control	Supported
Application Blocking	Supported
Web Filtering	Supported
URL Filtering	Whitelist / Blacklist
Bandwidth Control	Per-User Policies / IP-Based Dynamic Bandwidth Allocation
Traffic Audit	Network Behavior Audit
L7 DPI	Supported

VPN
IPSec VPN	Supported
Maximum IPSec Tunnels	Up to 1,000
L2TP VPN	Supported
PPTP VPN	Supported
L2TP/PPTP Tunnels	Up to 1,000
L2TP/IPSec VPN Performance	Up to 1Gbps
VPN Traffic Control	Intelligent Flow Control

CAPTIVE PORTAL
Portal Authentication	Supported
Password Authentication	Supported
Voucher Authentication	Supported
SMS Authentication	Supported
Marketing Portal	Supported

MANAGEMENT
Cloud Management	Ruijie Cloud
Cloud Management	Free Cloud Management
Remote Management	Supported
Open API	Supported
Network Diagnosis	Supported
Traffic Monitoring	Supported
APP Management	Ruijie Reyee App

STORAGE
Flash Memory	8MB
eMMC	8GB
HDD Support	1 × 1TB SATA HDD
HDD Included	No

POWER & GENERAL
Power Supply	100–240V AC, 50/60Hz
Maximum Power Consumption	<25W
Dimensions	440 × 200 × 43.6mm
Rack Installation	1U 19-inch Rack-mounted
Unit Weight	2.9kg
Cooling	2 × Fans
Operating Temperature	0°C to 45°C
Operating Humidity	10%–90% RH, Non-Condensing
Certifications	CE / RoHS
Warranty	3 Years

Note: The Reyee RG-NBR6215-E is a high-performance cloud-managed security router in the NBR6000 Series. It features 1 × 10/100/1000BASE-T WAN port, 1 × 10/100/1000BASE-T LAN port, 6 × switchable Gigabit RJ45 ports, 1 × 1G SFP port and 1 × 10G SFP+ port. It provides up to 2.5Gbps throughput and supports up to 1,500 concurrent clients and 1,000 IPSec VPN tunnels. It supports L7 DPI, application control, web filtering, bandwidth control, WAN load balancing, WAN failover, VPN and free Ruijie Cloud management.

Important: The Reyee RG-NBR6215-E is a High-Performance Cloud Managed Security Router with 1 × Gigabit WAN, 1 × Gigabit LAN, 6 × switchable Gigabit RJ45 ports, 1 × 1G SFP and 1 × 10G SFP+ port. It provides up to 2.5Gbps throughput and supports up to 1,500 concurrent clients and 1,000 IPSec VPN tunnels. It features L7 DPI, application control, web filtering, bandwidth control, WAN load balancing, WAN failover and VPN. The router supports free Ruijie Cloud management and can be installed in a 1U 19-inch rack
