RG-NBS3100-24GT4SFP-P-V2

RG-NBS3100-24GT4SFP-P-V2

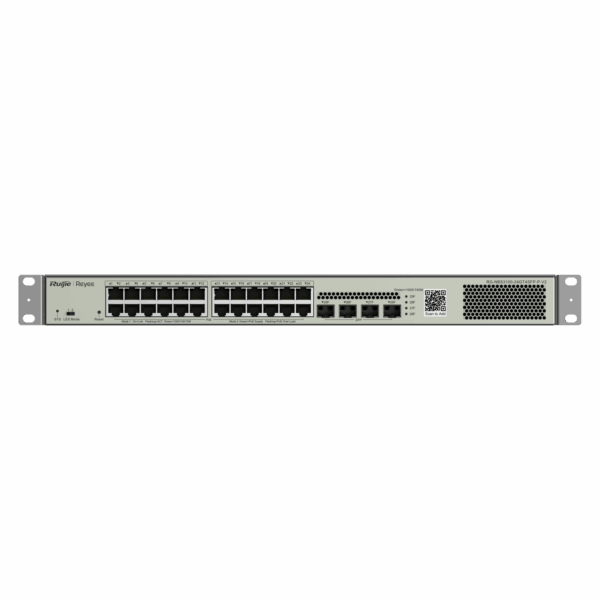

Ruijie RG-NBS3100-24GT4SFP-P-V2

28-Port Gigabit Layer 2 Cloud Managed PoE Switch

  • 24×Gigabit PoE+ ports with 4×Gigabit SFP uplink ports
  • Supports IEEE 802.3af/at with 370W PoE budget
  • Layer 2 Cloud Managed Switch with Ruijie Cloud Management
  • Supports IP Camera Recognition, VLAN, ACL, QoS and Link Aggregation
  • 56Gbps switching capacity with 41.67Mpps forwarding rate
  • 6kV surge protection with rackmount design for enterprise and CCTV networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications Ruijie Reyee RG-NBS3100-24GT4SFP-P-V2

Features Description
Device Type 28-Port Gigabit Layer 2 Cloud Managed PoE Switch
Ports 24 × 10/100/1000BASE-T PoE+ RJ45 Ports, 4 × Gigabit SFP Uplink Ports
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 370W Total PoE Budget
Switching Capacity 56Gbps
Forwarding Rate 41.66Mpps
MAC Address Table 8K Entries
Management Cloud Managed via Ruijie Cloud, Reyee App and Web Management
Surge Protection 6kV Port Surge Protection
Application Enterprise, Office, Hotel, School, CCTV and SMB Networks
Switch Type Layer 2 Cloud Managed PoE Switch
Network Ports 24 × Gigabit PoE+ RJ45 Ports, 4 × Gigabit SFP Uplink Ports
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
Installation 19-inch Rack Mount
Cooling Single Intelligent Cooling Fan
SMART FEATURES
Ruijie Cloud Lifetime Free Cloud Management for Remote Monitoring and Configuration
IP Camera Recognition Automatically Detects IP Cameras for Simplified CCTV Deployment
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Security Supports ACL, 802.1X Authentication, DHCP Snooping, IP Source Guard and Port Security
Network Protection Supports STP, RSTP, Loop Protection and Storm Control
VLAN Supports Up to 4094 IEEE 802.1Q VLANs and Voice VLAN
QoS Supports 802.1p, DSCP Priority and Traffic Management
Link Aggregation Supports Static Link Aggregation and LACP
GENERAL
Power Supply 100–240V AC, 50/60Hz (Built-in Power Supply)
Maximum Power Consumption 430W (Full PoE Load)
Operating Temperature 0°C to 50°C
Dimensions 440 × 215 × 44mm
Warranty 5 Years

Note: The RG-NBS3100-24GT4SFP-P-V2 is a 28-port Layer 2 cloud managed PoE switch featuring 24 Gigabit PoE+ ports, 4 Gigabit SFP uplinks, a 370W PoE budget, enterprise-class security, IP Camera Recognition, and lifetime Ruijie Cloud management. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-NBS3100-24GT4SFP-P-V2 is a 28-port Gigabit Layer 2 Smart PoE Switch with a 370W PoE budget, 4×Gigabit SFP uplinks, PoE Watchdog, VLAN, and Ruijie Cloud management—ideal for enterprise and CCTV networks.
