RG-NBS3100-48GT4SFP-P-V2

RG-NBS3100-48GT4SFP-P-V2

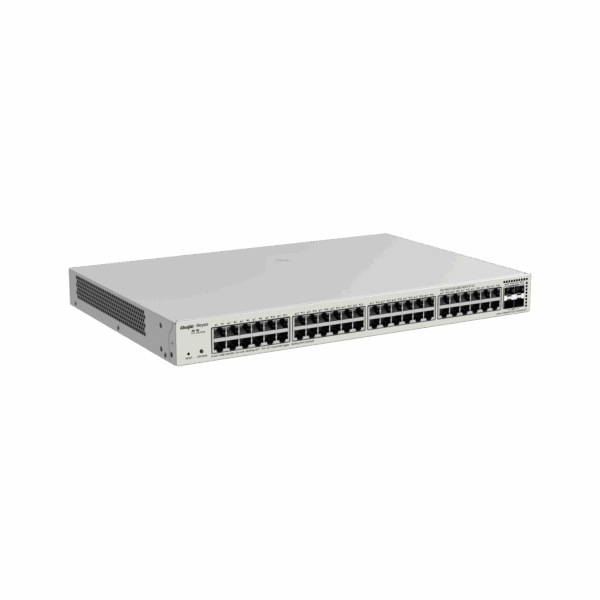

Ruijie RG-NBS3100-48GT4SFP-P-V2

52-Port Gigabit Layer 2 Cloud Managed PoE Switch

  • 48×Gigabit PoE+ ports with 4×Gigabit SFP uplink ports
  • Supports IEEE 802.3af/at with 370W PoE budget
  • Layer 2 Cloud Managed Switch with Ruijie Cloud Management
  • Supports IP Camera Recognition, VLAN, ACL and QoS
  • 104Gbps switching capacity with 77.37Mpps forwarding rate
  • 6kV surge protection with rackmount design for enterprise and CCTV networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications Ruijie Reyee RG-NBS3100-48GT4SFP-P-V2

Features Description
Device Type 52-Port Gigabit Layer 2 Cloud Managed PoE Switch
Ports 48 × 10/100/1000BASE-T PoE+ RJ45 Ports, 4 × 1GE SFP Uplink Ports
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 370W Total PoE Budget
Switching Capacity 104Gbps
Forwarding Rate 77.37Mpps
MAC Address Table 16K Entries
Management Cloud Managed via Ruijie Cloud, Web UI and CLI
Surge Protection 6kV Port Surge Protection
Application Enterprise Network, CCTV, Hotel, Campus, Office and SMB Deployment
Switch Type Layer 2 Cloud Managed PoE Switch
Network Ports 48 × Gigabit PoE+ RJ45 Ports, 4 × 1GE SFP Uplink Ports
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
Installation 19-inch Rack Mount
Cooling Intelligent Fan Cooling
SMART FEATURES
Ruijie Cloud Lifetime Free Cloud Management for Remote Monitoring and Configuration
IP Camera Recognition Automatically Detects IP Cameras for Simplified CCTV Deployment
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Security Policies Supports Port Isolation, ACL, Storm Control, DHCP Snooping and 802.1X Authentication
Network Protection Supports STP, RSTP, MSTP, Loop Protection and Broadcast Storm Control
VLAN Supports Up to 4094 VLANs for Flexible Network Segmentation
QoS Supports 802.1p/DSCP Priority and Traffic Management
Link Aggregation Supports Static and Dynamic Link Aggregation (LACP) for Higher Bandwidth
GENERAL
Power Supply 100–240V AC, 50/60Hz
Operating Temperature 0°C to 50°C
Dimensions 440 × 350 × 43.6mm
Warranty 5 Years

Note: The RG-NBS3100-48GT4SFP-P-V2 is a 52-port Layer 2 cloud managed PoE switch designed for enterprise and surveillance networks. It features 48 Gigabit PoE+ ports, 4 Gigabit SFP uplinks, a 370W PoE budget, intelligent fan cooling, and lifetime Ruijie Cloud management for simplified deployment and maintenance. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-NBS3100-48GT4SFP-P-V2 is a 52-port Gigabit Layer 2 Smart PoE Switch with a 370W PoE budget, PoE Watchdog, VLAN, QoS, ACL, and Ruijie Cloud management—ideal for enterprise, campus, and large-scale CCTV networks.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
