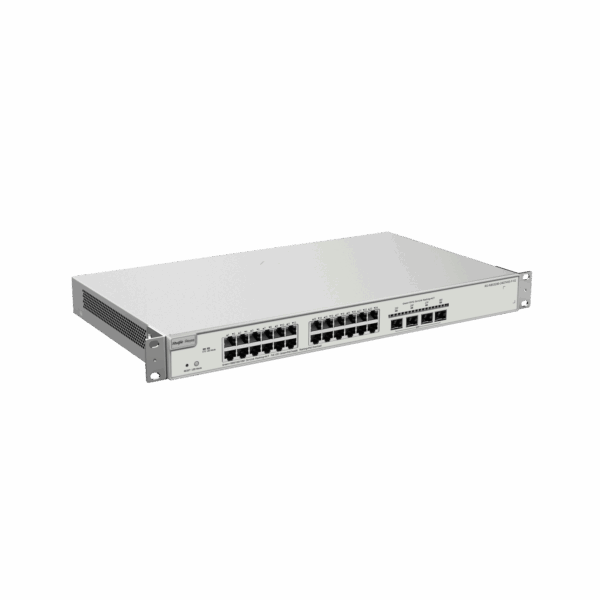

Specifications Ruijie Reyee RG-NBS3200-24GT4XS-P-V2
| Features | Description |
|---|---|
| Device Type | 28-Port Gigabit Layer 2+ Cloud Managed PoE Switch |
| Ports | 24 × 10/100/1000BASE-T PoE+ RJ45 Ports, 4 × 10GE SFP+ Uplink Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 370W Total PoE Budget |
| Switching Capacity | 128Gbps |
| Forwarding Rate | 96Mpps |
| MAC Address Table | 16K Entries |
| Management | Cloud Managed via Ruijie Cloud, Reyee App and eWeb |
| Surge Protection | 6kV Port Surge Protection |
| Application | Enterprise, Campus, Hotel, Office, CCTV and SMB Networks |
| Switch Type | Layer 2+ Cloud Managed PoE Switch |
|---|---|
| Network Ports | 24 × Gigabit PoE+ RJ45 Ports, 4 × 10GE SFP+ Uplink Ports |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Installation | 19-inch Rack Mount |
| Cooling | 2 × Intelligent Cooling Fans |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Lifetime Free Cloud Management for Remote Monitoring and Configuration |
| IP Camera Recognition | Automatically Detects IP Cameras for Simplified CCTV Deployment |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Layer 2+ Routing | Supports IPv4/IPv6 Static Routing for Efficient Network Segmentation |
| Network Protection | Supports STP, RSTP, MSTP, Loop Protection and Storm Control |
| Security | Supports ACL, 802.1X Authentication, DHCP Snooping, Port Isolation and MAC Filtering |
| QoS | Supports 802.1p, DSCP, SP, WRR and SP+WRR Queue Scheduling |
| Link Aggregation | Supports Static Aggregation and LACP for Higher Bandwidth and Redundancy |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz (Built-in Power Supply) |
| Maximum Power Consumption | 430W (Full PoE Load) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 × 222.6 × 44mm |
| Warranty | 5 Years |
Note: The RG-NBS3200-24GT4XS-P-V2 is a high-performance Layer 2+ cloud managed PoE switch designed for enterprise and surveillance networks. It features 24 Gigabit PoE+ ports, four 10G SFP+ uplinks, static routing, intelligent cooling, and lifetime Ruijie Cloud management. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-NBS3200-24GT4XS-P-V2 is a 28-port Layer 2+ Smart PoE Switch with a 370W PoE budget, 4×10G SFP+ uplinks, PoE Watchdog, IPv4/IPv6 routing, and Ruijie Cloud management—ideal for enterprise and CCTV networks.
