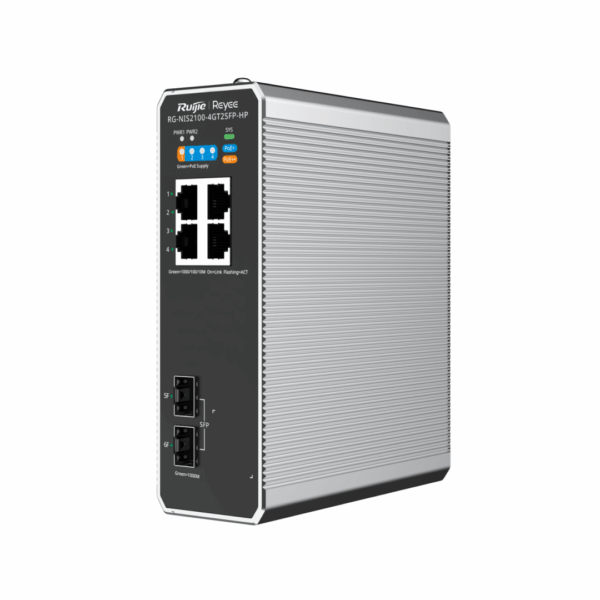

Specifications Ruijie Reyee RG-NIS2100-4GT2SFP-HP
| Features | Description |
|---|---|
| Product Type | 6-Port Cloud Managed Layer 2 Industrial PoE Switch |
| RJ45 Ports | 4 x 10/100/1000BASE-T |
| SFP Ports | 2 x 1G SFP |
| PoE Ports | 4 PoE Ports: 3 x PoE+ and 1 x PoE++ |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Budget | Default: 108 W, Maximum: 180 W |
| PoE++ Output | Up to 90 W |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.9 Mpps |
| Layer | Layer 2 |
| Management | Ruijie Cloud and Web Management |
| Installation | DIN Rail / Wall Mount |
| INDUSTRIAL FEATURES | Description |
|---|---|
| Operating Temperature | -40°C to 75°C |
| Housing | Full Aluminum Casing |
| Surge Protection | 6 kV |
| EMC | Level 4 |
| PoE Watchdog | Supported |
| Port Isolation | Supported |
| ERPS | Supported |
| Self-Organizing Network | Supported |
| NETWORK FEATURES | Description |
|---|---|
| VLAN | Supports VLAN Configuration |
| STP/RSTP | Supported |
| ERPS | Supported |
| IGMP Snooping | Supported |
| QoS | Supported |
| Storm Control | Supported |
| Loop Prevention | Supported |
| GENERAL | Description |
|---|---|
| Warranty | 5 Years |
| Power Supply | Power Adapter Not Included |
| Shipping Weight | Approx. 1.08 kg |
Note: The Ruijie Reyee RG-NIS2100-4GT2SFP-HP is a 6-port Cloud Managed Layer 2 industrial PoE switch featuring 4 Gigabit RJ45 ports, 2 Gigabit SFP uplink ports, 3 PoE+ ports, and 1 PoE++ port with up to 90 W PoE output.
Important: The switch is designed for harsh industrial environments with a -40°C to 75°C operating temperature range, full aluminum casing, 6 kV surge protection, Level 4 EMC, DIN rail mounting, ERPS, PoE Watchdog, and Ruijie Cloud management.
