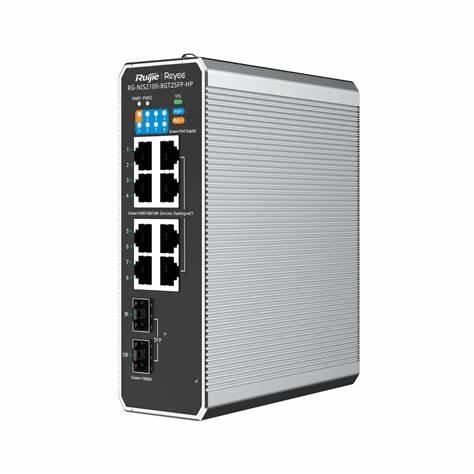

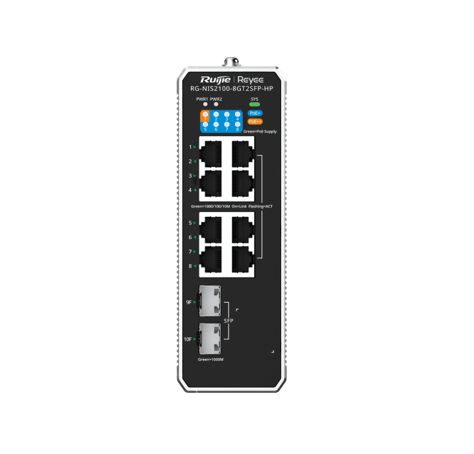

Specifications Ruijie Reyee RG-NIS2100-8GT2SFP-HP
| Features | Description |
|---|---|
| Product Type | 10-Port Cloud Managed Layer 2 Industrial PoE Switch |
| RJ45 Ports | 8 x 10/100/1000BASE-T |
| SFP Ports | 2 x 1G SFP |
| PoE Ports | 8 PoE Ports: 7 x PoE+ and 1 x PoE++ |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Budget | 228 W Default, up to 300 W |
| PoE++ Output | Up to 90 W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.8 Mpps |
| MAC Address Table | 8K |
| Layer | Layer 2 |
| Management | Ruijie Cloud, Web Management, and SNMP |
| Installation | DIN Rail / Wall Mount |
| INDUSTRIAL FEATURES | Description |
|---|---|
| Operating Temperature | -40°C to 75°C |
| Protection Rating | IP40 |
| Surge Protection | 6 kV |
| EMC | Level 4 |
| Housing | Full Aluminum Housing |
| ERPS | Supported for rapid network failover and ring network redundancy |
| PoE Watchdog | Supported |
| Port Isolation | Supported |
| Self-Organizing Network | Supported |
| NETWORK FEATURES | Description |
|---|---|
| VLAN | Supports VLAN configuration |
| Link Aggregation | Supported |
| STP/RSTP | Supported |
| ERPS | Supported |
| IGMP Snooping | Supported |
| QoS | Supported |
| DHCP Snooping | Supported |
| Storm Control | Supported |
| Loop Prevention | Supported |
| GENERAL | Description |
|---|---|
| Dimensions | 155 mm x 130 mm x 50 mm |
| Weight | Approx. 0.79 kg |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Warranty | 5 Years |
| Power Supply | External DC Power Supply, Power Adapter Not Included |
Note: The Ruijie Reyee RG-NIS2100-8GT2SFP-HP is a 10-port Cloud Managed Layer 2 industrial PoE switch featuring 8 Gigabit RJ45 ports, 2 Gigabit SFP uplink ports, 7 PoE+ ports, and 1 PoE++ port with up to 90 W PoE output.
Important: The switch is designed for harsh industrial environments with a -40°C to 75°C operating temperature range, IP40 protection, 6 kV surge protection, aluminum housing, DIN rail mounting, ERPS, and Ruijie Cloud remote management.
