Specifications Ruijie RG-PA150IB-F
| Features | Description |
|---|---|
| Product Type | 150W AC Power Module |
| Input Type | AC / HVDC |
| Rated Input Voltage | 100–240V AC, 50/60Hz; 240V DC |
| Maximum Input Voltage | 90–264V AC, 47–63Hz; 192–288V DC |
| Maximum Input Current | 3A |
| Output Voltage | 12V DC |
| Maximum Output Current | 12.5A |
| Maximum Output Power | 150W |
| Input Leakage Current | ≤3.5mA |
| Features & Protection | Description |
|---|---|
| Hot-Swappable | Yes |
| Power Redundancy | 1+1 Redundant Power Supply |
| Load Sharing | Supported |
| Protection | Overvoltage / Overcurrent / Short-Circuit Protection |
| Communication | I2C Communication |
| Power Alert | Supported |
| Cooling Direction | Rear-to-Front |
| General | Description |
|---|---|
| Power Cord | 10A Power Cord |
| Dimension (W × D × H) | 50.5 × 196 × 40 mm |
| Weight | Approximately 0.55 kg |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5%–95%, Non-Condensing |
| Operating Altitude | Up to 5,000 m |

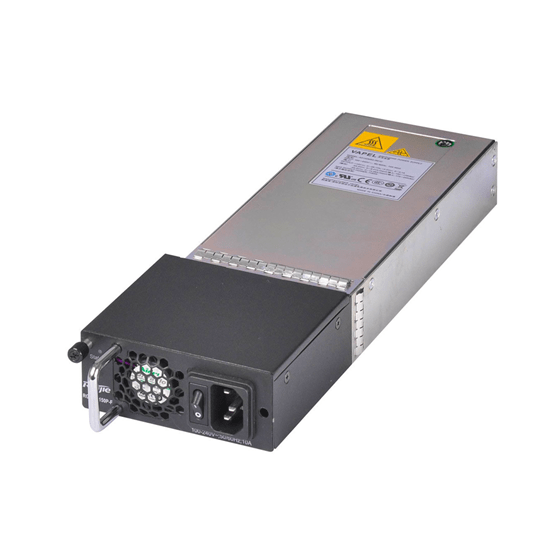

Note: The Ruijie RG-PA150IB-F is a 150W AC power module with AC/HVDC input and 12V DC output. It supports hot-swappable installation, 1+1 power redundancy, load sharing, I2C communication, and multiple protection functions. It is designed for compatible Ruijie enterprise switches.
