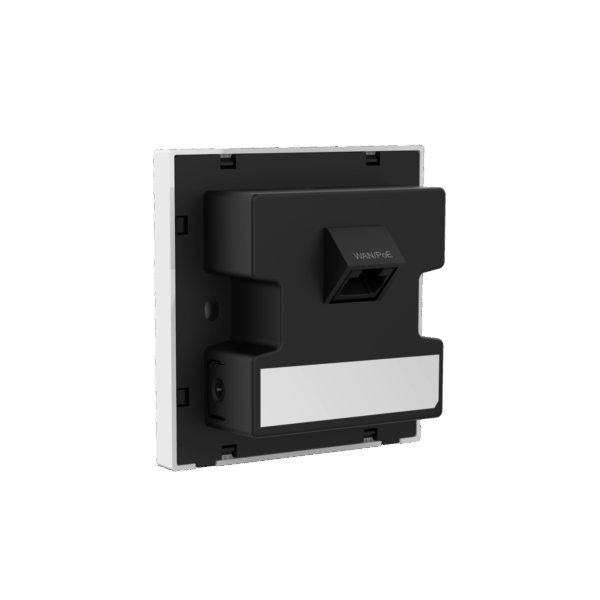

Specifications Reyee RG-RAP1261
| Features | Description |
|---|---|
| Product Type | Wi-Fi 6 AX3000 Ultra-Thin Wall Plate Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Class | AX3000 |
| Wireless Data Rate | Up to 2974Mbps |
| 2.4GHz Data Rate | 573Mbps |
| 5GHz Data Rate | 2401Mbps |
| Management | Ruijie Cloud / Reyee App / Web |
| HARDWARE | |
|---|---|
| Wireless Radio | Dual-Radio, 4 Spatial Streams |
| 2.4GHz MIMO | 2 × 2 MU-MIMO |
| 5GHz MIMO | 2 × 2 MU-MIMO |
| Antennas | 2 × Built-in Omnidirectional Antennas |
| Ethernet Ports | 2 × 10/100/1000BASE-T |
| Power Supply | PoE / PoE+ |
| PoE Standard | IEEE 802.3af |
| Maximum Power Consumption | 10.2W |
| Local Power Supply | No |
| WIRELESS PERFORMANCE | |
|---|---|
| Maximum Wireless Data Rate | 2974Mbps |
| 2.4GHz Wireless Data Rate | 573Mbps |
| 5GHz Wireless Data Rate | 2401Mbps |
| 2.4GHz Spatial Streams | 2 × 2 MU-MIMO |
| 5GHz Spatial Streams | 2 × 2 MU-MIMO |
| 6GHz Support | No |
| Maximum Associated Clients | 64 (2.4GHz) / 256 (5GHz) / 256 (2.4GHz + 5GHz) |
| NETWORK FEATURES | |
|---|---|
| Reyee Mesh | Supported |
| 802.11k/v/r Roaming | Supported |
| AP Mode | Supported |
| Routing Mode | Supported |
| IPv6 | Supported |
| Layer 2 Roaming | Supported |
| Layer 3 Roaming | Supported |
| Portal Authentication | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Mobile Management | Reyee App |
| Web Management | Supported |
| Remote Management | Supported |
| Cloud Firmware Upgrade | Supported |
| Remote Monitoring | Supported |
| Standalone Portal | Supported via Ruijie Cloud |
| Maximum Managed Devices | 300 |
| WIRELESS FEATURES | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6 |
| MU-MIMO | 2 × 2 MU-MIMO on 2.4GHz and 5GHz |
| OFDMA | Supported |
| Beamforming | Supported |
| Smart Roaming | Supported |
| Reyee Mesh | Supported |
| Cooling Technology | Patented Cooling Technology |
| INSTALLATION & DESIGN | |
|---|---|
| Design | Ultra-Thin Wall Plate |
| Thickness | 8.5mm Ultra-Thin Design |
| Standard | 86mm Standard Compatible |
| Mounting | Junction Box |
| Dimensions | 86 × 42.4 × 86mm |
| Color | White |
| Weight | ≤0.16kg |
| IP Rating | No |
| POWER & GENERAL | |
|---|---|
| Power Supply | PoE / PoE+ |
| PoE Standard | IEEE 802.3af |
| Maximum Power Consumption | 10.2W |
| Local Power Supply | No |
| Operating Temperature | 0°C to 40°C |
| Mounting Options | Junction Box |
| Dimensions | 86 × 42.4 × 86mm |
| Net Weight | ≤0.16kg |
Note: The Reyee RG-RAP1261 is a Wi-Fi 6 AX3000 ultra-thin wall plate access point designed for hotels, homes, offices and other indoor environments. It features dual-band 2.4GHz and 5GHz wireless connectivity with 2 × 2 MU-MIMO on both bands, delivering up to 2974Mbps combined wireless data rate. It provides 2 × Gigabit Ethernet ports and supports PoE/PoE+ power, Reyee Mesh, 802.11k/v/r roaming, Ruijie Cloud management and standalone portal authentication. The compact 86mm × 42.4mm × 86mm design is compatible with standard 86mm junction boxes.
Important: The Reyee RG-RAP1261 is a Wi-Fi 6 AX3000 Ultra-Thin Wall Plate Access Point featuring dual-band 2.4GHz and 5GHz, 2 × 2 MU-MIMO and a combined wireless data rate of up to 2974Mbps. It provides 2 × Gigabit Ethernet ports and supports PoE/PoE+ power, Reyee Mesh, 802.11k/v/r roaming, Ruijie Cloud and Reyee App management. The ultra-thin design is only 8.5mm thick and is compatible with standard 86mm junction boxes.
