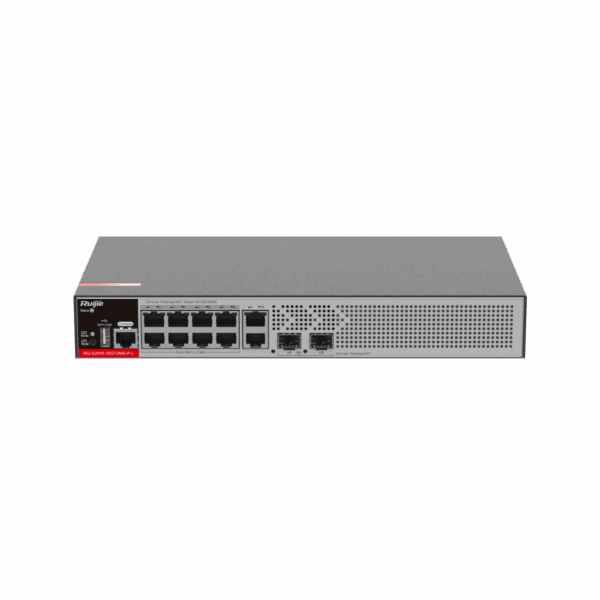

Specifications Ruijie RG-S2915-10GT2MS-P-L
| Features | Description |
|---|---|
| Product Type | Layer 2+ Managed PoE+ Switch |
| Gigabit RJ45 Ports | 10 × 10/100/1000BASE-T |
| PoE+ Ports | Ports 1–8 |
| SFP Uplink Ports | 2 × 1GE/2.5GE SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | Up to 125W |
| Switching Capacity | 30Gbps |
| Packet Forwarding Rate | 22.5Mpps |
| Layer | Layer 2+ |
| Management | Ruijie Cloud / Web / CLI / SNMP / Telnet / SSH |
| HARDWARE | |
|---|---|
| RJ45 Ports | 10 × 10/100/1000BASE-T |
| PoE+ Ports | Ports 1–8 |
| SFP Ports | 2 × 1GE/2.5GE SFP |
| Console Port | 1 × RJ45 Console Port |
| USB Port | 1 × USB Port |
| CPU | Single-Core CPU, 1.2GHz |
| Memory | 512MB DDR4 |
| Flash Memory | 64MB |
| Switch Buffer | 512KB |
| MAC Address Table | 16,000 |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | Ports 1–8 |
| PoE Output | Up to 30W per Port |
| PoE Power Budget | Up to 125W |
| PoE Power Pairs | Mode A (1-2, 3-6 pairs) |
| PoE Priority | Supported |
| Custom PoE Schedule | Supported |
| Hot Start | Uninterruptible power supply upon hot start |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 30Gbps |
| Packet Forwarding Rate | 22.5Mpps |
| MAC Address Table | 16,000 |
| ARP Table | 512 |
| IPv4/IPv6 Routing Entries | 64 |
| ACL Entries | 500 |
| Jumbo Frame | Up to 9,216 Bytes |
| NETWORK FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4,094 VLANs |
| Voice VLAN | Supported |
| Port-Based VLAN | Supported |
| QinQ | Basic QinQ / Selective QinQ |
| STP | STP / RSTP / MSTP |
| ERPS | G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| DHCP | DHCP Client / Relay / Server / Snooping |
| IP Routing | Static Routing / RIP / RIPng / OSPFv2 |
| IGMP Snooping | IGMP v1 / v2 Snooping |
| SECURITY | |
|---|---|
| Authentication | 802.1X / MAC-Based Authentication / Web Authentication |
| AAA | RADIUS / TACACS+ |
| ACL | Standard IP ACL / Extended IP ACL / Extended MAC ACL / IPv6 ACL |
| IP Source Guard | Supported |
| CPP | CPU Protection Policy |
| NFPP | Supported |
| HTTPS | Supported |
| SSH | SSH v1 / SSH v2 |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Web Management | Supported |
| CLI | Telnet / Console |
| SNMP | SNMP v1 / v2c / v3 |
| RMON | Supported |
| sFlow | Supported |
| RSPAN | Supported |
| NTP | Supported |
| Syslog | Supported |
| CWMP | TR-069 Supported |
| gRPC | Supported |
| RELIABILITY | |
|---|---|
| RLDP | Rapid Link Detection Protocol |
| Loop Detection | Supported |
| Temperature Monitoring | Supported |
| Temperature Alarm | Supported |
| Overtemperature Protection | Supported |
| Cable Hot Swapping | Supported on All Ports |
| POWER & GENERAL | |
|---|---|
| Power Supply | 1 × Fixed Power Supply |
| Power Input | 100–240V AC, 50/60Hz |
| Maximum Input Current | 3A |
| Maximum Power Consumption | 16W Non-PoE / 141W Full PoE Load |
| Dimensions | 297 × 170 × 44.5mm |
| Rack Height | 1U |
| Unit Weight | 2.5kg |
| Cooling | 1 × Fixed Fan Module |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Operating Altitude | 0–5,000m |
| PROTECTION | |
|---|---|
| Telecom Port Surge Protection | Up to 10kV |
| Power Port Surge Protection | Common Mode 6kV / Differential Mode 2kV |
| ESD Protection | Air Discharge: 8kV / 15kV; Contact Discharge: 6kV / 8kV |
Note: The Ruijie RG-S2915-10GT2MS-P-L is a Layer 2+ Managed PoE+ Switch featuring 10 × 10/100/1000BASE-T ports, with Ports 1–8 supporting IEEE 802.3af/at PoE+, and 2 × 1GE/2.5GE SFP uplink ports. It provides 30Gbps switching capacity and 22.5Mpps packet forwarding performance. The switch supports up to 125W total PoE power budget and up to 30W per PoE port. It supports VLAN, STP/RSTP/MSTP, ERPS, LACP, LLDP, DHCP, Static Routing, RIP/RIPng, OSPFv2, ACL, 802.1X, SNMP and Ruijie Cloud management.
Important: The Ruijie RG-S2915-10GT2MS-P-L is a Layer 2+ Managed PoE+ Switch with 10 × Gigabit RJ45 ports, of which Ports 1–8 support IEEE 802.3af/at PoE+, plus 2 × 1GE/2.5GE SFP uplink ports. It provides up to 125W PoE power budget and up to 30W per PoE port. The switch provides 30Gbps switching capacity and 22.5Mpps packet forwarding rate. It supports Ruijie Cloud management, VLAN, STP/RSTP/MSTP, ERPS, LACP, ACL, 802.1X, Static Routing, RIP/RIPng and OSPFv2. It also features 10kV telecom-port surge protection and RLDP for network loop detection.
