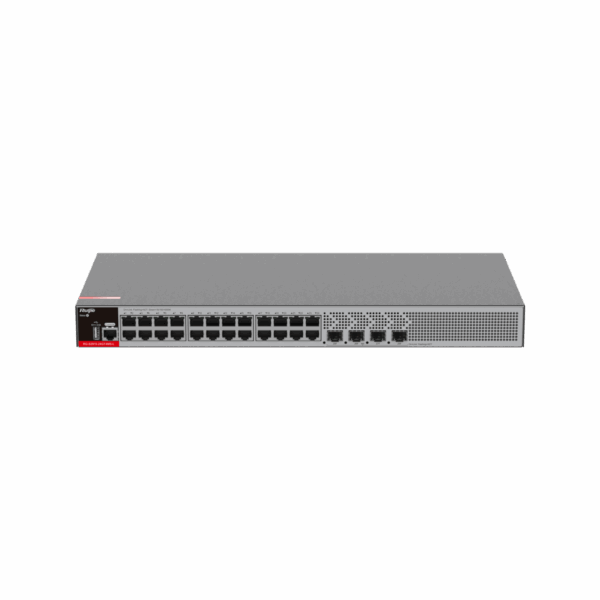

Specifications Ruijie RG-S2915-24GT4MS-L

Features	Description
Product Type	Layer 2+ Managed Switch
Gigabit RJ45 Ports	24 × 10/100/1000BASE-T
SFP Uplink Ports	4 × 1GE/2.5GE SFP
PoE	Not Supported
Switching Capacity	68Gbps
Packet Forwarding Rate	51Mpps
Management	Ruijie Cloud / Web / CLI / SNMP / Telnet / SSH
Layer	Layer 2+

HARDWARE
RJ45 Ports	24 × 10/100/1000BASE-T
SFP Ports	4 × 1GE/2.5GE SFP
Console Port	1 × RJ45 Console Port
USB Port	1 × USB Port
CPU	Single-Core CPU, 1.2GHz
Memory	512MB DDR4
Flash Memory	64MB
Switch Buffer	512KB
MAC Address Table	16,000

PERFORMANCE
Switching Capacity	68Gbps
Packet Forwarding Rate	51Mpps
MAC Address Table	16,000
ARP Table	512
IPv4/IPv6 Routing Entries	64
ACL Entries	500
Jumbo Frame	Up to 9,216 Bytes

NETWORK FEATURES
VLAN	IEEE 802.1Q, Up to 4,094 VLANs
Voice VLAN	Supported
Port-Based VLAN	Supported
QinQ	Basic QinQ / Selective QinQ
STP	STP / RSTP / MSTP
ERPS	G.8032
Link Aggregation	LACP (IEEE 802.3ad)
LLDP	LLDP / LLDP-MED
DHCP	DHCP Client / Relay / Server / Snooping
IP Routing	Static Routing / RIP / RIPng / OSPFv2
IGMP Snooping	IGMP v1 / v2 Snooping
EEE	IEEE 802.3az Energy Efficient Ethernet

SECURITY
Authentication	802.1X / MAC-Based Authentication / Web Authentication
AAA	RADIUS / TACACS+
ACL	Standard IP ACL / Extended IP ACL / Extended MAC ACL / Expert-Level ACL / IPv6 ACL
ACL Entries	Up to 500
IP Source Guard	Supported
CPP	CPU Protection Policy
NFPP	Supported
HTTPS	Supported
SSH	SSH v1 / SSH v2

MANAGEMENT
Cloud Management	Ruijie Cloud
Web Management	Supported
CLI	Telnet / Console
SNMP	SNMP v1 / v2c / v3
RMON	Supported
sFlow	Supported
RSPAN	Supported
NTP	Supported
TFTP Client	Supported
Syslog	Supported
CWMP	TR-069 Supported
gRPC	Supported

RELIABILITY
RLDP	Rapid Link Detection Protocol
Loop Detection	Supported
Temperature Monitoring	Supported
Temperature Alarm	Supported
Overtemperature Protection	Supported
Cable Hot Swapping	Supported on All Ports

POWER & GENERAL
Power Supply	1 × Fixed Power Supply
Power Input	100–240V AC, 50/60Hz
Maximum Input Voltage	90–264V AC, 47–63Hz
Maximum Input Current	0.6A
Maximum Power Consumption	15.6W
Dimensions	440 × 220 × 43.5mm
Rack Height	1U
Unit Weight	2.5kg
Cooling	Fanless Design
Heat Dissipation	Natural Heat Dissipation
Operating Temperature	0°C to 45°C
Operating Humidity	10%–90% RH, Non-Condensing
Operating Altitude	0–5,000m

PROTECTION
Telecom Port Surge Protection	Up to 10kV
Power Port Surge Protection	Common Mode 6kV / Differential Mode 2kV
ESD Protection	Air Discharge: 8kV / 15kV; Contact Discharge: 6kV / 8kV

Note: The Ruijie RG-S2915-24GT4MS-L is a Layer 2+ Managed Switch featuring 24 × 10/100/1000BASE-T RJ45 ports and 4 × 1GE/2.5GE SFP uplink ports. It provides 68Gbps switching capacity and 51Mpps packet forwarding performance. The switch supports IEEE 802.1Q VLAN, STP/RSTP/MSTP, ERPS, LACP, LLDP, DHCP, Static Routing, RIP/RIPng, OSPFv2, ACL, 802.1X, SNMP and Ruijie Cloud management. The switch uses a fanless design with natural heat dissipation and consumes up to 15.6W.

Important: The Ruijie RG-S2915-24GT4MS-L is a Layer 2+ Managed Switch with 24 × Gigabit RJ45 ports and 4 × 1GE/2.5GE SFP uplink ports. PoE is not supported on this model. It provides 68Gbps switching capacity and 51Mpps packet forwarding rate. The switch supports Ruijie Cloud management, VLAN, STP/RSTP/MSTP, ERPS, LACP, ACL, 802.1X, Static Routing, RIP/RIPng and OSPFv2. It also features 10kV telecom-port surge protection, CPP CPU protection and RLDP for reliable network operation. The fanless design provides natural heat dissipation with a maximum power consumption of only 15.6W.
