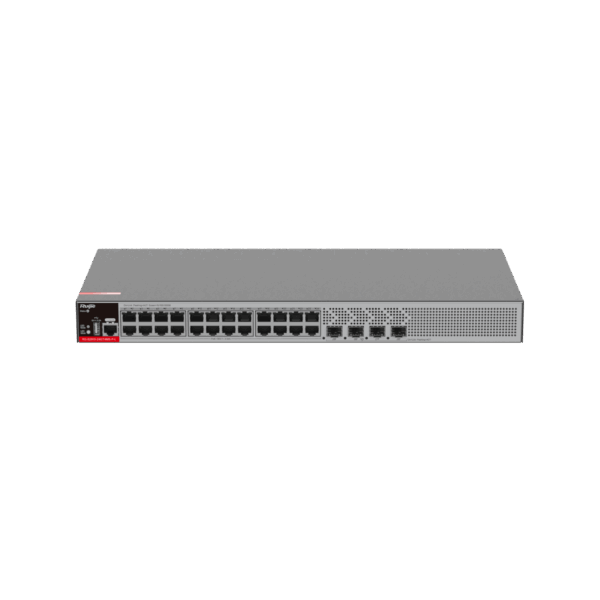

Specifications Ruijie RG-S2915-24GT4MS-P-L
| Features | Description |
|---|---|
| Product Type | Layer 2+ Managed PoE+ Switch |
| Gigabit RJ45 Ports | 24 × 10/100/1000BASE-T PoE/PoE+ |
| SFP Uplink Ports | 4 × 1GE/2.5GE SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | Up to 370W |
| PoE Output | Up to 30W per Port |
| Switching Capacity | 68Gbps |
| Packet Forwarding Rate | 51Mpps |
| Management | Ruijie Cloud / Web / CLI / SNMP / Telnet / SSH |
| Layer | Layer 2+ |
| HARDWARE | |
|---|---|
| RJ45 Ports | 24 × 10/100/1000BASE-T |
| PoE Ports | 24 × PoE/PoE+ |
| SFP Ports | 4 × 1GE/2.5GE SFP |
| Console Port | 1 × RJ45 Console Port |
| USB Port | 1 × USB Port |
| CPU | Single-Core CPU, 1.2GHz |
| Memory | 512MB DDR4 |
| Flash Memory | 64MB |
| Switch Buffer | 512KB |
| MAC Address Table | 16,000 |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | All 24 RJ45 Ports |
| PoE Output | Up to 30W per Port |
| PoE Power Budget | Up to 370W |
| PoE Power Pairs | Mode A (1-2, 3-6 pairs) |
| PoE Priority | Supported |
| Custom PoE Schedule | Supported |
| Hot Start | Uninterruptible power supply upon hot start |
| Energy Saving | IEEE 802.3az Energy Efficient Ethernet |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 68Gbps |
| Packet Forwarding Rate | 51Mpps |
| MAC Address Table | 16,000 |
| ARP Table | 512 |
| IPv4/IPv6 Routing Entries | 64 |
| ACL Entries | 500 |
| Jumbo Frame | Up to 9,216 Bytes |
| NETWORK FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4,094 VLANs |
| Voice VLAN | Supported |
| Port-Based VLAN | Supported |
| QinQ | Basic QinQ / Selective QinQ |
| STP | STP / RSTP / MSTP |
| ERPS | G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| DHCP | DHCP Client / Relay / Server / Snooping |
| IP Routing | Static Routing / RIP / RIPng / OSPFv2 |
| IGMP Snooping | IGMP v1 / v2 Snooping |
| SECURITY | |
|---|---|
| Authentication | 802.1X / MAC-Based Authentication / Web Authentication |
| AAA | RADIUS / TACACS+ |
| ACL | Standard IP ACL / Extended IP ACL / Extended MAC ACL / Expert-Level ACL / IPv6 ACL |
| ACL Entries | Up to 500 |
| IP Source Guard | Supported |
| CPP | CPU Protection Policy |
| NFPP | Supported |
| HTTPS | Supported |
| SSH | SSH v1 / SSH v2 |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Web Management | Supported |
| CLI | Telnet / Console |
| SNMP | SNMP v1 / v2c / v3 |
| RMON | Supported |
| sFlow | Supported |
| RSPAN | Supported |
| NTP | Supported |
| Syslog | Supported |
| CWMP | TR-069 Supported |
| gRPC | Supported |
| RELIABILITY | |
|---|---|
| RLDP | Rapid Link Detection Protocol |
| Loop Detection | Supported |
| Temperature Monitoring | Supported |
| Temperature Alarm | Supported |
| Overtemperature Protection | Supported |
| Cable Hot Swapping | Supported on All Ports |
| POWER & GENERAL | |
|---|---|
| Power Supply | 1 × Fixed Power Supply |
| Power Input | 100–240V AC, 50/60Hz |
| Maximum Input Current | 6A |
| Maximum Power Consumption | 33W Non-PoE / 403W Full PoE Load |
| Dimensions | 440 × 292 × 43.6mm |
| Rack Height | 1U |
| Unit Weight | 2.8kg |
| Cooling | 2 × Fixed Fan Modules |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Operating Altitude | 0–5,000m |
| PROTECTION | |
|---|---|
| Telecom Port Surge Protection | Up to 10kV |
| Power Port Surge Protection | Common Mode 6kV / Differential Mode 2kV |
| ESD Protection | Air Discharge: 8kV / 15kV; Contact Discharge: 6kV / 8kV |
Note: The Ruijie RG-S2915-24GT4MS-P-L is a Layer 2+ Managed PoE+ Switch featuring 24 × 10/100/1000BASE-T PoE/PoE+ ports and 4 × 1GE/2.5GE SFP uplink ports. It provides 68Gbps switching capacity and 51Mpps packet forwarding performance. All 24 RJ45 ports support IEEE 802.3af/at PoE with up to 30W per port and a maximum PoE power budget of 370W. The switch supports VLAN, STP/RSTP/MSTP, ERPS, LACP, LLDP, DHCP, Static Routing, RIP/RIPng, OSPFv2, ACL, 802.1X, SNMP and Ruijie Cloud management. It also provides 10kV telecom-port surge protection and RLDP for rapid link and loop detection.
Important: The Ruijie RG-S2915-24GT4MS-P-L is a Layer 2+ Managed PoE+ Switch with 24 × Gigabit PoE/PoE+ RJ45 ports and 4 × 1GE/2.5GE SFP uplink ports. All 24 RJ45 ports support IEEE 802.3af/at, providing up to 30W per port with a total 370W PoE power budget. It provides 68Gbps switching capacity and 51Mpps packet forwarding rate. The switch supports Ruijie Cloud management, VLAN, STP/RSTP/MSTP, ERPS, LACP, ACL, 802.1X, Static Routing, RIP/RIPng and OSPFv2. It also features 2.5GE SFP uplinks, 10kV telecom-port surge protection, CPP CPU protection and RLDP for reliable network operation.
