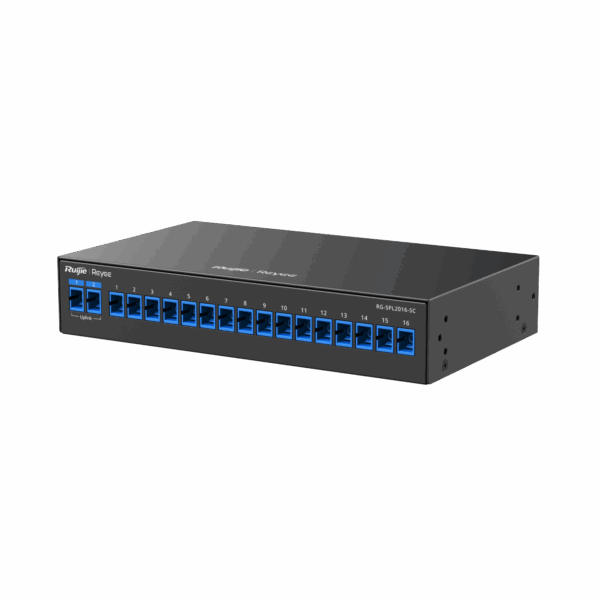

Specifications Reyee RG-SPL2016-SC
| Features | Description |
|---|---|
| Product Type | Passive Optical Splitter |
| Series | e-Lighten Passive Optical Splitter |
| Optical Configuration | 2-In 16-Out Uniform Optical Splitter |
| Optical Connector | SC |
| Uplink Optical Ports | 2 |
| Splitter Downlink Ports | 16 |
| Power Requirement | None / Passive |
| Installation | Rack Mount / Wall Mount |
| OPTICAL SPECIFICATIONS | |
|---|---|
| Splitter Type | Uniform Optical Splitter |
| Optical Input Ports | 2 |
| Optical Output Ports | 16 |
| Split Ratio | 2 × 1:8 |
| Optical Connector | SC |
| Optical Technology | Passive Optical Splitter |
| Optical Aggregation | Passive Aggregation |
| NETWORK APPLICATION | |
|---|---|
| Network Type | Passive All-Fiber LAN |
| Application | e-Lighten Optical Access Network |
| Topology | Point-to-Multipoint Optical Distribution |
| Fiber Connection | Direct Fiber Connection |
| Passive Operation | Supported |
| Power Requirement | No Power Required |
| INSTALLATION | |
|---|---|
| Rack Mounting | Supported |
| Wall Mounting | Supported |
| Waterproof Enclosure | Compatible |
| Standalone Installation | Supported |
| Combined Installation | Supported |
| Mounting Type | Rack Mount / Wall Mount |
| MECHANICAL | |
|---|---|
| Enclosure Material | Durable Iron Casing |
| Dimensions | 220 × 130 × 42mm |
| Design | Compact Metal Enclosure |
| Installation | Rack / Wall Mounting |
| ENVIRONMENT & RELIABILITY | |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Power Consumption | 0W – Passive Device |
| Reliability | High Reliability |
| Enclosure | Iron Casing |
| GENERAL | |
|---|---|
| Product Type | 2-In 16-Out Passive Optical Splitter |
| Fiber Interface | SC |
| Number of Inputs | 2 |
| Number of Outputs | 16 |
| Power Supply | Not Required |
| Dimensions | 220 × 130 × 42mm |
| Warranty | 3 Years |
Note: The Reyee RG-SPL2016-SC is a 2-In 16-Out Uniform Passive Optical Splitter designed for e-Lighten passive optical networks. It provides 2 optical input ports and 16 splitter output ports, allowing optical signals to be passively distributed without requiring electrical power. The unit features a durable iron casing, compact design and supports rack-mounted or wall-mounted installation.
Important: The Reyee RG-SPL2016-SC is a Passive Optical Splitter featuring 2 optical inputs and 16 optical outputs with SC interfaces. It requires no power supply and supports direct fiber connection and passive optical aggregation. The unit can be installed as a standalone rack-mounted unit, combined rack-mounted unit or wall-mounted unit. Its compact metal enclosure measures 220 × 130 × 42mm and supports an operating temperature of -40°C to +85°C.
