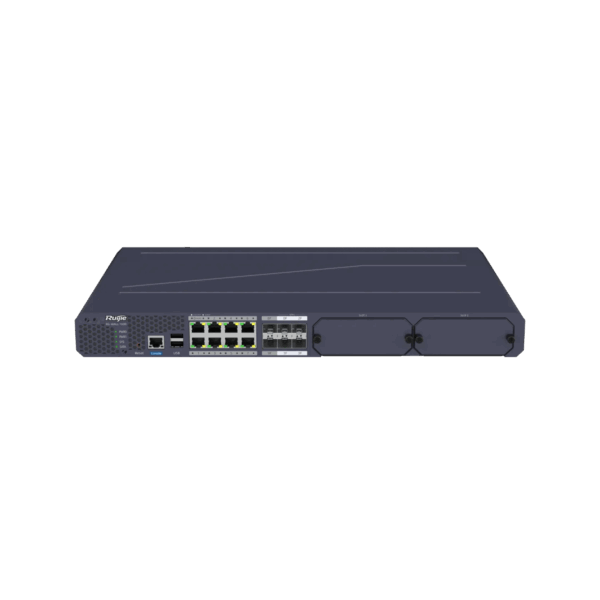

Specifications Ruijie RG-WALL 1600-Z5100-S
| Features | Description |
|---|---|
| Product Type | Next-Generation Cloud-Managed Firewall |
| Gigabit Ethernet Ports | 8 × 10/100/1000BASE-T |
| 1G SFP Ports | 2 × 1GE SFP |
| 10G SFP+ Ports | 4 × 10GE SFP+ |
| Firewall Throughput | Up to 15Gbps |
| Firewall Throughput (Packets) | 2.3Mpps |
| Concurrent TCP Sessions | 1,000,000 |
| New TCP Sessions/Second | 134,000 |
| Firewall Policies | 4,000 |
| SSL VPN Throughput | 3Gbps |
| IPsec VPN Throughput | 4Gbps |
| Management | Ruijie Cloud / Web / CLI / SNMP |
| Form Factor | 1U Rackmount |
| HARDWARE | |
|---|---|
| Fixed Service Ports | 8 × 10/100/1000BASE-T |
| 1G SFP Ports | 2 × 1GE SFP |
| 10G SFP+ Ports | 4 × 10GE SFP+ |
| Management Port | 1 × RJ45 MGMT Port (Reusing Ge0/0) |
| Console Port | 1 × RJ45 Console Port (RS-232) |
| USB Ports | 2 × USB 2.0 |
| Hard Disk | No Hard Disk Included; Supports Optional 1TB Enterprise-Class SATA HDD |
| Power Modules | 2 × Pluggable Power Module Slots; 1 Power Module Included |
| FIREWALL PERFORMANCE | |
|---|---|
| Firewall Throughput | 15Gbps |
| Packet Forwarding Rate | 2.3Mpps |
| Firewall Traffic Mix | 3Gbps–10Gbps depending on performance license |
| Concurrent TCP Sessions | 1,000,000 |
| New TCP Sessions/Second | 134,000 |
| Firewall Policies | 4,000 |
| Application Control Throughput | 10Gbps |
| IPS Throughput | 1.8Gbps–4Gbps |
| NGFW Throughput | 1.6Gbps–3.5Gbps |
| Threat Protection Throughput | 1Gbps–2Gbps |
| PERFORMANCE SCALABILITY | |
|---|---|
| Base Performance | 3Gbps |
| Performance Expansion | 1Gbps per RG-WALL 1600-Z5100-S-1G-LIC |
| Maximum Performance | 10Gbps |
| Maximum Additional Licenses | 7 × 1Gbps Performance Licenses |
| VPN | |
|---|---|
| SSL VPN Throughput | 3Gbps |
| Concurrent SSL VPN Users | 1,000 Recommended Maximum |
| IPsec VPN Throughput | 4Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 1,000 |
| IPsec VPN | Supported |
| SSL VPN | Supported |
| NETWORK FUNCTIONS | |
|---|---|
| WAN Interface | PPPoE / DHCP / Static IP |
| Routing Mode | Supported |
| Transparent Mode | Supported |
| Bypass Mode | Supported |
| VLAN | Supported |
| IPv4 / IPv6 | Supported |
| Static Routing | IPv4 / IPv6 |
| Dynamic Routing | Supported |
| Policy-Based Routing | Supported |
| Application-Based Routing | Supported |
| Load Balancing | Egress Load Balancing |
| DHCP Server | Supported |
| DNS Server | Supported |
| DDNS | Supported |
| VRRP | Supported |
| SECURITY | |
|---|---|
| Intrusion Prevention | IPS |
| Antivirus | Supported |
| Threat Intelligence | Supported |
| Application Control | Supported |
| URL Filtering | Supported |
| DDoS Protection | Supported |
| DoS Protection | Supported |
| Port Scan | Supported |
| Traffic Learning | Supported |
| Policy Simulation | Supported |
| Policy Optimization | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud / Ruijie Reyee App |
| Web Management | Supported |
| CLI | Supported |
| SNMP | Supported |
| RESTful API | Supported |
| Packet Capture | Supported |
| Network Diagnosis | Supported |
| Intelligent Diagnosis | Supported |
| Syslog | Supported |
| STORAGE | |
|---|---|
| Internal Hard Disk | Not Included |
| Optional Hard Disk | 1TB Enterprise-Class SATA HDD |
| Recommended HDD | Ruijie Enterprise-Class Hard Drive |
| POWER & GENERAL | |
|---|---|
| Power Supply | 2 × Pluggable Power Module Slots |
| Factory Power Module | 1 × Power Module Included |
| Input Voltage | 100–240V AC |
| Input Frequency | 50–60Hz |
| Maximum Input Current | 2A |
| Maximum Power Consumption | <60W |
| Dimensions | 440 × 300 × 43.6mm |
| Rack Height | 1U |
| Unit Weight | 4.44kg |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 40%–65% RH, Non-Condensing |
| Storage Humidity | 10%–90% RH, Non-Condensing |
| Operating Altitude | 0–5,000m |
| Noise Level | 36dB |
Note: The Ruijie RG-WALL 1600-Z5100-S is a Next-Generation Cloud-Managed Firewall featuring 8 × Gigabit RJ45 ports, 2 × 1GE SFP ports and 4 × 10GE SFP+ ports. It provides up to 15Gbps hardware firewall throughput, 2.3Mpps packet forwarding performance, 1,000,000 concurrent TCP sessions and 134,000 new TCP sessions per second. It supports IPS, Antivirus, Threat Intelligence, Application Control, URL Filtering, DDoS Protection, IPsec VPN, SSL VPN, VLAN, Policy-Based Routing, Load Balancing and Ruijie Cloud management. Performance can be expanded from 3Gbps to 10Gbps using optional 1Gbps performance licenses.
Important: The Ruijie RG-WALL 1600-Z5100-S is a Next-Generation Cloud-Managed Firewall with 8 × Gigabit RJ45 ports, 2 × 1GE SFP ports and 4 × 10GE SFP+ ports. It provides up to 15Gbps firewall throughput and 2.3Mpps packet forwarding performance, supporting up to 1,000,000 concurrent TCP sessions and 134,000 new TCP sessions per second. The firewall supports IPS, Antivirus, Threat Intelligence, Application Control, URL Filtering, DDoS Protection, IPsec VPN and SSL VPN. The base firewall performance starts at 3Gbps and can be expanded up to 10Gbps by adding up to 7 × 1Gbps performance licenses. It supports Ruijie Cloud management and has dual pluggable power module slots, with one power module included as standard.
