Specifications Ruijie RG-WS6512-L
| Features | Description |
|---|---|
| Product Type | High-Performance Wireless Access Controller |
| Series | RG-WS Series Wireless Access Controller |
| Manageable APs | 128 APs by default, up to 1,152 Generic APs or 2,304 Wall-mounted APs with License |
| Maximum Configurable APs | 4,096 |
| Maximum Managed Users | 32,768 |
| Forwarding Capacity | 40Gbps |
| Management | Web / Ruijie Management Platforms / Console / SSH / Telnet |
| HARDWARE | |
|---|---|
| Combo Ports | 8 × GE Combo Ports (10/100/1000BASE-T or SFP) |
| 10GE Uplink Ports | 4 × 10GE SFP+ Ports |
| Management Port | 1 × 10/100/1000BASE-T RJ45 |
| Console Port | 1 × RJ45 Console |
| USB Ports | 2 × USB |
| Reset Button | 1 × Reset Button |
| CPU | 16-Core Processor |
| Status LEDs | 1 × System Status LED + 20 × Service Port LEDs |
| PERFORMANCE | |
|---|---|
| Default Managed APs | 128 |
| Maximum Managed APs | 1,152 Generic APs / 2,304 Wall-mounted APs |
| Maximum Configurable APs | 4,096 |
| Maximum Managed Users | 32,768 |
| Wireless Forwarding Capacity | 40Gbps |
| VLAN | Up to 4,096 |
| ACL | 128K |
| MAC Address Table | 128K |
| ARP Table | 80K |
| Built-in Portal Users | Up to 7,500 |
| Intra-AC Roaming | <50ms |
| WIRELESS FEATURES | |
|---|---|
| Supported WLAN Standards | 802.11a/b/g/n/ac/ax/be |
| Centralized Forwarding | Supported |
| Local Forwarding | Supported |
| Business-Based Forwarding | Supported |
| 2.4GHz / 5GHz Band Steering | Supported |
| AP Load Balancing | Supported |
| STA Load Balancing | Supported |
| RF Management | Automatic Channel / Power Adjustment and RF Interference Detection |
| Fast Roaming | Supported |
| Layer 2 / Layer 3 Roaming | Supported |
| CAPWAP | Supported, including NAT Traversal |
| NETWORK FEATURES | |
|---|---|
| VLAN | Up to 4,096 VLANs |
| DHCP Server | Supported |
| DHCP Client | Supported |
| DHCP Relay | Supported |
| DHCP Snooping | Supported |
| Static Routing | Supported |
| RIP | Supported |
| OSPF | Supported |
| IPv6 | Full IPv6 Support |
| RIPng | Supported |
| OSPFv3 | Supported |
| SECURITY & AUTHENTICATION | |
|---|---|
| Web Authentication | Supported |
| 802.1X Authentication | Supported |
| SMS Authentication | Supported |
| QR Code Authentication | Supported |
| WPA3 | Supported |
| WPA2 / PSK | Supported |
| WEP / TKIP | Supported |
| DPI | Supported, identifying 2,500+ applications |
| User Isolation | Supported |
| Dynamic Network Isolation | Supported |
| Portal Authentication | Built-in Portal Server |
| QOS & USER MANAGEMENT | |
|---|---|
| AP Bandwidth Limiting | Supported |
| WLAN Bandwidth Limiting | Supported |
| User Bandwidth Limiting | Static and Intelligent Rate Limiting |
| Fair Scheduling | Supported |
| AP Load Balancing | Supported |
| 5GHz Priority | Supported |
| RSSI Threshold | 0–100 |
| STA Idle Timeout | 60–86,400 seconds |
| RELIABILITY | |
|---|---|
| AC Virtualization | Supported |
| Dual-AC Fast Failover | Supported |
| Multi-AC Hot Backup | 1:1 A/A, 1:1 A/S and N:1 |
| Multi-AC Cluster | N:N |
| Business Continuity Upgrade | Supported |
| Intelligent Edge Awareness | Supported |
| MANAGEMENT | |
|---|---|
| Web Management | eWeb |
| Centralized Management | Ruijie Network Management Platforms |
| Console Management | Supported |
| Telnet | Supported |
| SSH | Supported |
| SNMP | V1 / V2c / V3 |
| RMON | Supported |
| Syslog | Supported |
| Remote Probe | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Power Redundancy | Supports 2 Power Modules, 1 Included |
| Maximum Power Consumption | 70W |
| Dimensions | 440 × 340 × 43.6mm |
| Rack Height | 1U |
| Net Weight | 5.9kg (Main Unit) + 0.4kg (Power Module) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |

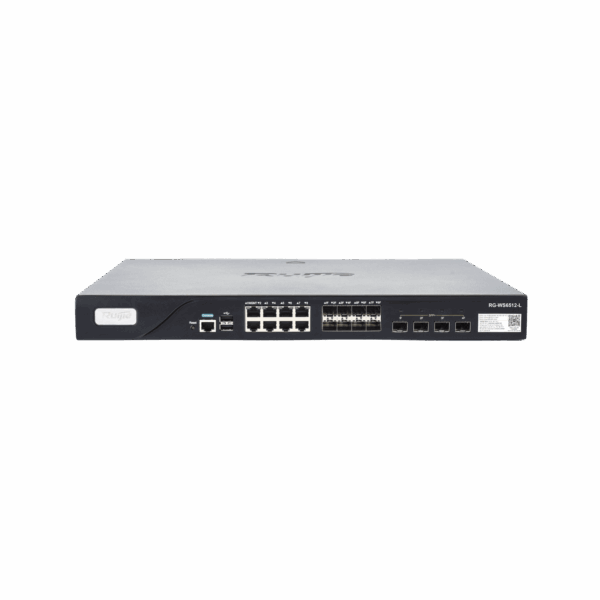

Note: The Ruijie RG-WS6512-L is a high-performance wireless access controller designed for medium-to-large enterprise and campus wireless networks. It provides 8 × Gigabit combo ports and 4 × 10GE SFP+ ports, with 40Gbps forwarding capacity. The controller supports 128 APs by default and can be expanded through licenses to support up to 1,152 generic APs or 2,304 wall-mounted APs. It supports centralized and local forwarding, intelligent RF management, AP load balancing, fast Layer 2/Layer 3 roaming, IPv6, WPA3, 802.1X, Portal authentication and AC virtualization.
Important: The Ruijie RG-WS6512-L is a High-Performance Wireless Access Controller featuring 8 × Gigabit Combo ports and 4 × 10GE SFP+ ports. It provides 40Gbps wireless forwarding capacity and supports 128 APs by default, expandable up to 1,152 Generic APs or 2,304 Wall-mounted APs with the appropriate License. The controller supports centralized/local forwarding, Layer 2/Layer 3 roaming, AP load balancing, RF management, WPA3, 802.1X, Portal authentication, IPv6 and AC virtualization. It is housed in a 1U rack-mount chassis measuring 440 × 340 × 43.6mm with maximum power consumption of 70W.
