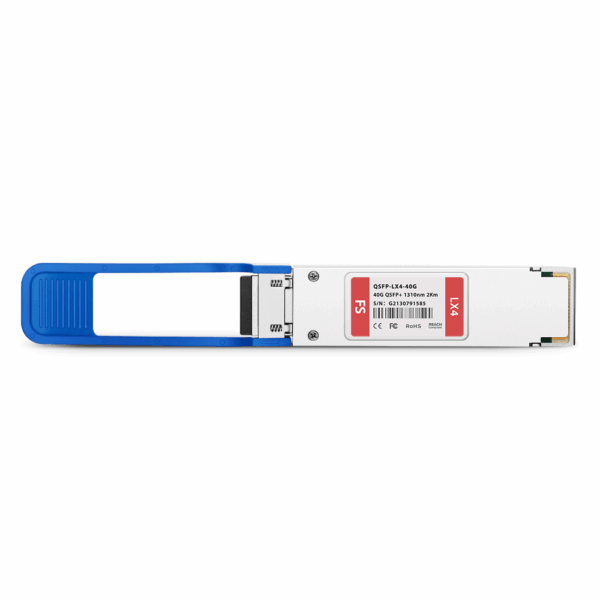

Specifications Ruijie 40G-QSFP-LX4-SM1310
| Features | Description |
|---|---|
| Product Type | 40GBASE-LX4 QSFP+ Optical Transceiver |
| Data Rate | 40 Gbps |
| Form Factor | QSFP+ |
| Standard | 40GBASE-LX4 |
| Wavelength | 1310 nm |
| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) / Multi-Mode Fiber (MMF) |
| Transmission Distance | Up to 150 m over OM3/OM4 MMF; Up to 2 km over SMF |
| Application | Description |
|---|---|
| Network Application | 40GbE Data Center and High-Speed Network Connectivity |
| Interface | QSFP+ Optical Interface |
| Fiber Connector | LC Duplex |
Note: The Ruijie 40G-QSFP-LX4-SM1310 is a 40GBASE-LX4 QSFP+ optical transceiver operating at 1310 nm with a Duplex LC connector. It supports up to 150 m over OM3/OM4 multi-mode fiber and up to 2 km over single-mode fiber, making it suitable for high-speed data center and network backbone applications.
