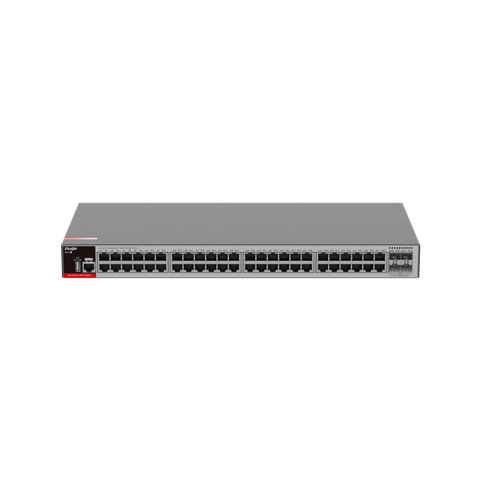

Specifications Ruijie Networks RG-S2915-48GT4MS-L
| Features | Description |
|---|---|
| Device Type | 48-Port 1G Layer 2+ Managed Switch |
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports |
| Uplink Ports | 4 × 1GE/2.5GE SFP Ports |
| Switching Capacity | 116 Gbps |
| Packet Forwarding Rate | 87 Mpps |
| MAC Address Table | 16K |
| Layer 3 Routing | Static Routing, RIP, RIPng and OSPFv2 |
| PoE | Not Supported |
| Management | Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| Design | 1U Rack-Mountable with 2 Fixed Fans |
| INTERFACE | |
|---|---|
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports |
| SFP Uplink Ports | 4 × 1GE/2.5GE SFP Ports |
| Console Port | 1 × RJ45 Console Port |
| USB | 1 × USB Port |
| SWITCHING PERFORMANCE | |
|---|---|
| Switching Capacity | 116 Gbps |
| Packet Forwarding Rate | 87 Mpps |
| MAC Address Table | 16,000 |
| ARP Table | 512 |
| IPv4/IPv6 Routing Table | 64 |
| ACL Entries | 500 |
| Switch Buffer | 512 KB |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Cloud-Based Network Management, Monitoring and Configuration |
| Zero Touch Provisioning | Supported via Ruijie Cloud |
| RLDP | Rapid Link Detection Protocol Helps Automatically Detect and Eliminate Network Loops |
| CPP | CPU Protection Policy Helps Protect the CPU from Unauthorized or Excessive Traffic |
| NFPP | Network Foundation Protection Policy Helps Protect the Network from Abnormal Traffic and Attacks |
| 10kV Surge Protection | High-Level Port Surge Protection for Improved Reliability in Harsh Environments |
| EEE | IEEE 802.3az Energy Efficient Ethernet |
| Traffic Monitoring | sFlow Supported for Network Traffic Monitoring |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | RIP / RIPng |
| OSPF | OSPFv2 |
| IPv4 / IPv6 | Dual-Stack Supported |
| SWITCHING FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4,094 VLANs |
| Voice VLAN | Supported |
| Port-Based VLAN | Supported |
| QinQ | Basic QinQ / Selective QinQ |
| STP | STP / RSTP / MSTP |
| ERPS | IEEE G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| Jumbo Frame | Up to 9,216 Bytes |
| NETWORK MANAGEMENT & SECURITY | |
|---|---|
| Management Methods | Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| SNMP | SNMP v1 / v2c / v3 |
| Authentication | RADIUS / TACACS+ |
| 802.1X | Port-Based and MAC-Based Authentication |
| Web Authentication | Supported |
| SSH | SSH v1 / SSH v2 |
| HTTPS | Supported |
| DHCP | DHCP Client / Server / Relay / Snooping |
| IP Source Guard | Supported |
| IGMP Snooping | IGMP v1 / v2 |
| sFlow | Supported |
| ACL & QOS | |
|---|---|
| ACL | Standard IP ACL, Extended IP ACL, Extended MAC ACL, Expert-Level ACL and IPv6 ACL |
| ACL Redirection | Supported |
| Traffic Rate Limiting | Supported |
| QoS | 802.1p, DSCP and IP Precedence |
| Priority Queues | 8 Queues per Interface |
| Congestion Management | RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR and SP+WFQ |
| Congestion Avoidance | Tail Drop |
| HARDWARE | |
|---|---|
| CPU | Single-Core CPU, 1.2GHz |
| Memory | 512MB DDR4 |
| Flash Memory | 64MB |
| Switch Buffer | 512KB |
| Fan | 2 × Fixed Fan Modules |
| Rack Height | 1U |
| POWER | |
|---|---|
| Power Supply | 1 × Fixed AC Power Supply |
| Rated Input Voltage | 100–240V AC, 50/60Hz |
| Maximum Input Voltage | 90–264V AC, 47–63Hz |
| Maximum Input Current | 1.5A |
| Maximum Power Consumption | 30W |
| PoE | Not Supported |
| ENVIRONMENT & RELIABILITY | |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Operating Altitude | 0m to 5,000m |
| MTBF | 200,000 Hours |
| Cooling | Forced Air Cooling |
| Acoustic Noise | ≤ 37dB |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| PHYSICAL | |
|---|---|
| Dimensions | 440 × 220 × 43.5 mm |
| Weight | 2.8kg |
| Installation | 19-inch Rack Mount, 1U |
Note: The Ruijie RG-S2915-48GT4MS-L is a 48-port Layer 2+ managed access switch designed for offices, hotels, retail stores, factories and small-to-medium-sized enterprise networks. It provides 48 × 10/100/1000BASE-T RJ45 ports and 4 × 1GE/2.5GE SFP uplink ports, with 116Gbps switching capacity and 87Mpps packet forwarding performance. It supports VLAN, STP/RSTP/MSTP, ERPS, LACP, Layer 3 static routing, RIP, OSPFv2, ACL, QoS, 802.1X, Ruijie Cloud and RLDP.
Important: The RG-S2915-48GT4MS-L is a Layer 2+ Managed Switch and does not support PoE. All 48 RJ45 ports support 10/100/1000Mbps, while the 4 SFP uplink ports support 1Gbps or 2.5Gbps. The switch uses a fixed AC power supply, has 2 fixed fans and supports 10kV port surge protection.
