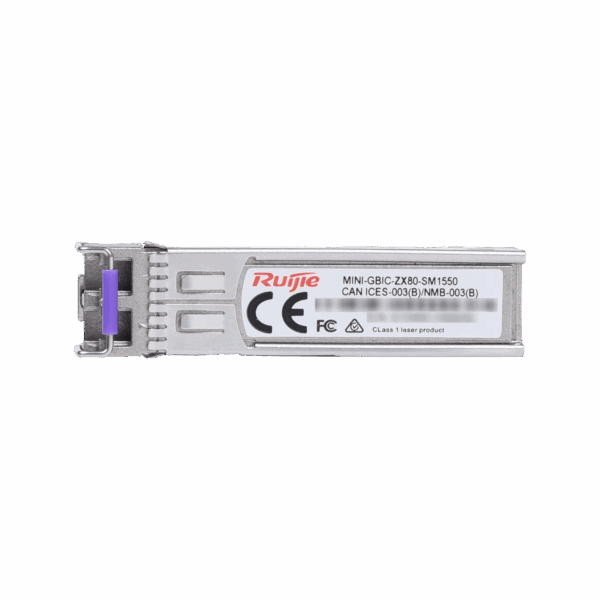

Specifications Ruijie Reyee MINI-GBIC-ZX80-SM1550
| Features | Description |
|---|---|
| Product Type | 1G 1000BASE-ZX SFP Optical Transceiver Module |
| Data Rate | 1.25 Gbps |
| Form Factor | SFP |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Wavelength | 1550 nm |
| Maximum Reach | 80 km |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Maximum Transmit Power | 5 dBm |
| Minimum Transmit Power | 0 dBm |
| Receiver Sensitivity | < -27 dBm |
| Overload Optical Power | -3 dBm |
| Digital Diagnostic Monitoring | Supported (DDM / DOM) |
| Power Consumption | ≤ 1.5 W |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Ethernet Standard | IEEE 1000BASE-ZX / IEEE 802.3z |
| Management Standard | SFF-8472 |
| SFP Standard | SFF-8431, SFF-8432, SFP+ MSA |
| Laser Safety | Class 1 Laser |
| Environmental Compliance | RoHS Compliant |
| ENVIRONMENT & GENERAL | Description |
|---|---|
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | 5% to 95% RH |
Note: The Ruijie Reyee MINI-GBIC-ZX80-SM1550 is a 1G 1000BASE-ZX SFP optical transceiver designed for long-distance Gigabit Ethernet transmission over Single-Mode Fiber. It uses a 1550 nm wavelength and supports transmission distances of up to 80 km with a Duplex LC connector.
Important: The MINI-GBIC-ZX80-SM1550 supports DDM for optical monitoring, hot-pluggable SFP MSA operation, and a maximum power consumption of 1.5 W. It is designed for switch, router, server, and network infrastructure applications.
