T3700G-52TQ | JetStream 52-Port Gigabit

T3700G-52TQ | JetStream 52-Port Gigabit

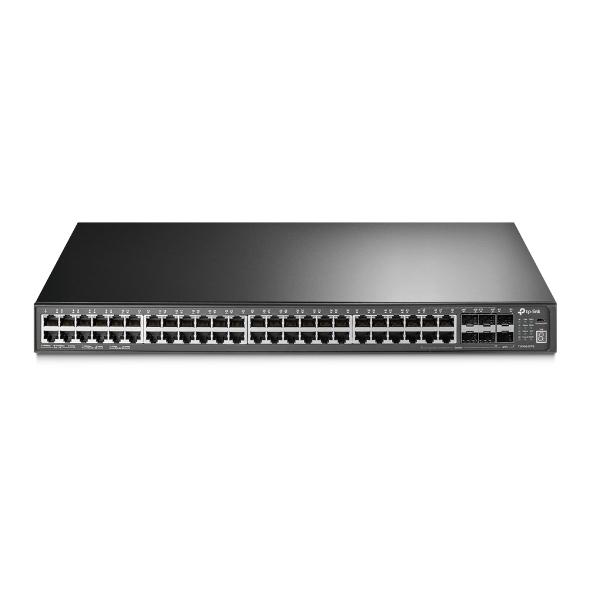

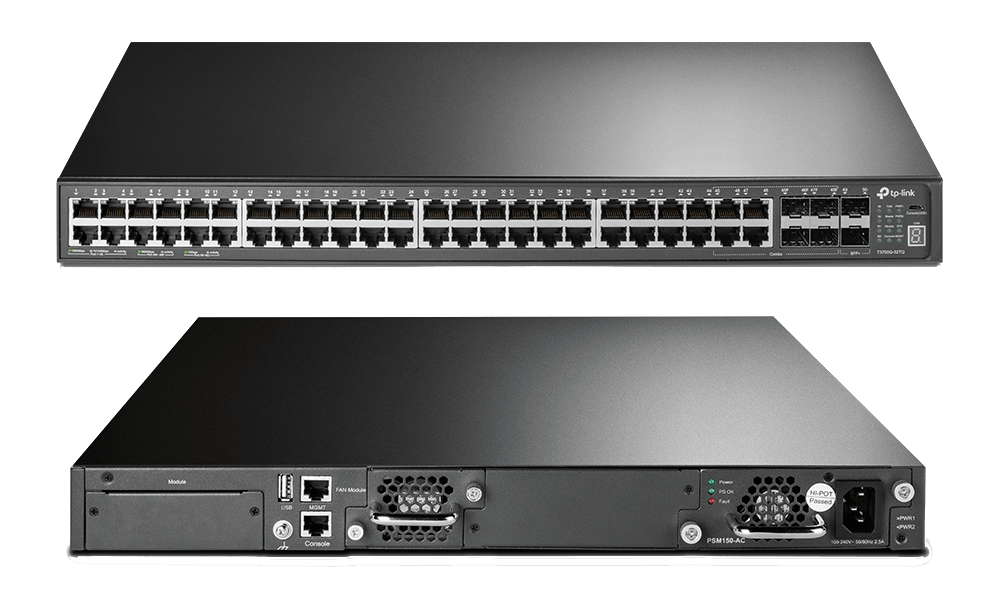

TP-Link T3700G-52TQ

52-Port L3 Managed Switch

  • 48×Gigabit RJ45 ports with 4×10G SFP+ uplink ports
  • Supports L2/L3 features, Static Routing, RIP and OSPF
  • True Physical Stacking supports up to 8 switches
  • Advanced QoS, ACL, IGMP Snooping and IPv6 support
  • Web, CLI, SNMP, RMON and USB management
  • Rackmount design for enterprise and campus networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications TP-Link T3700G-52TQ

Features Description
Device Type 52-Port L3 Managed Stackable Switch
Network Ports 48 × Gigabit RJ45 Ports + 4 × 10G SFP+ Slots
Switching Capacity 176 Gbps
Packet Forwarding Rate 130.9 Mpps
Layer Features L2/L3 Switching with Static Routing, RIP, OSPF, VRRP
Management Web UI, CLI, SNMP, RMON, USB Console
QoS & Security ACL, QoS, 802.1X, DHCP Snooping, IP-MAC-Port Binding
Stacking Physical Stacking up to 8 Switches
Design 19-inch Rackmount Metal Housing
Application Enterprise, Campus, Data Center, Surveillance Network
Power Supply 100-240V AC, Dual Redundant Power Supply Support
Device Type L3 Managed Stackable Switch
RJ45 Ports 48 × 10/100/1000Mbps Ports
10G Uplink 4 × 10G SFP+ Slots
Switching Capacity 176 Gbps
Packet Forwarding Rate 130.9 Mpps
MAC Address Table 32K
Packet Buffer Memory 1.5 MB
MANAGEMENT FEATURES
Management Web GUI, CLI, SNMP, RMON, USB Console
Layer Features L2/L3 Switching, Static Routing, RIP, OSPF, VRRP
QoS 802.1p/DSCP QoS, Queue Scheduling, Rate Limiting
Security ACL, 802.1X, DHCP Snooping, IP Source Guard, ARP Inspection
NETWORK
Network Standard IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3ae / 802.3x
VLAN 802.1Q VLAN, Private VLAN, Voice VLAN, GVRP
Multicast IGMP Snooping v1/v2/v3, PIM-SM, PIM-DM
Link Aggregation LACP (IEEE 802.3ad)
PROTECTION
Access Control ACL, 802.1X Authentication
Loop Prevention STP / RSTP / MSTP
Redundancy VRRP, Physical Stacking, Dual Power Supply Support
Housing Rackmount Metal Case
GENERAL
Power Supply 100-240V AC, 50/60Hz
Operating Temperature 0°C to 50°C
Operating Humidity 10% to 90% RH (Non-Condensing)
Dimensions 440 × 330 × 44 mm
Installation 19-inch Rackmount

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

Important: The TP-Link T3700G-52TQ is a 52-port L3 managed switch with 48 Gigabit ports, 4×10G SFP+ uplinks, and physical stacking support. It delivers advanced routing, security, and management features for enterprise, campus, and surveillance networks.
