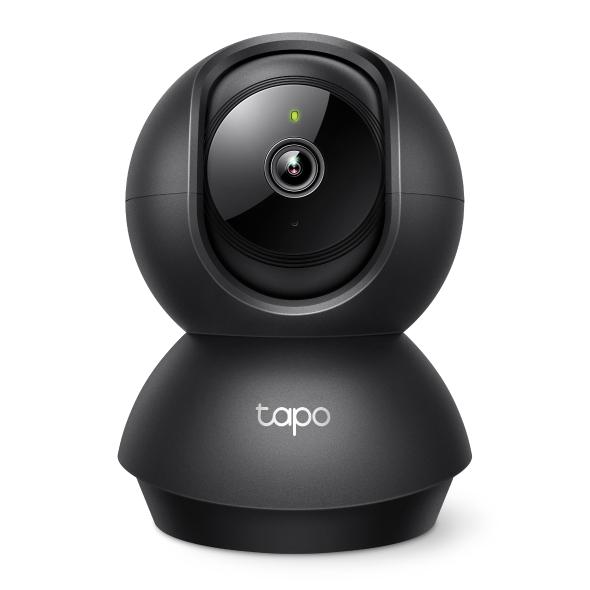

Tapo C211

TP-Link Tapo C211

2K 3MP Pan/Tilt Home Security Wi-Fi Camera

2K 3MP resolution with 360° Pan/Tilt coverage
AI detection for people, motion and baby crying
IR night vision up to 9m with motion tracking
Two-way audio and privacy mode support
Supports microSD cards up to 512GB
Works with Tapo App, Google Assistant and Amazon Alexa

หมวดหมู่: CCTV, Tapo, TP-LINK, TP-LINK CCTV ป้ายกำกับ: CCTV, TP-Link

Specifications Tapo C211

คุณสมบัติ	รายละเอียด
เซ็นเซอร์ / Image Sensor	1/2.8″ Progressive Scan CMOS
เลนส์ / Aperture	F/NO: 2.4, Focal Length: ~3.83 mm
มุมมอง / Pan-Tilt	Pan mechanical ~340° (360° coverage), Tilt ~70° (≈ 114° vertical)
ความละเอียด / Frame Rate	2K / 3MP (2304 × 1296) ที่ 15 fps
Night Vision / IR	IR LED 850 nm, ระยะ ~30 ฟุต (≈ 9 เมตร)
การบันทึก / Storage	microSD สูงสุด 512 GB + รองรับ Tapo Care Cloud Storage
เสียง / Audio	สองทาง (Two-Way Audio) พร้อมไมโครโฟน + ลำโพงในตัว
ฟีเจอร์ตรวจจับอัจฉริยะ / Feature	Motion Detection, Person Detection, Baby Crying Detection, Motion Tracking, โซนบล็อก (Privacy / Activity Zones)
เครือข่าย / Connect	Wi-Fi 2.4 GHz (802.11b/g/n) ไม่มีพอร์ต Ethernet (เชื่อมเฉพาะ Wi-Fi)
พลังงาน / แหล่งจ่ายไฟ	9.0 V DC, 0.6 A Adapter
ขนาด / มิติ	ประมาณ 86.5 × 85 × 117.7 มม.
อุณหภูมิใช้งาน / ช่วง	0 °C ถึง 40 °C
การบริโภคพลังงาน (โดยทั่วไป / สูงสุด)	ประมาณ 1.78 W (ทั่วไป) / สูงสุด ~3.27 W

อธิบายรายละเอียด Tapo C211

Image Sensor	1/2.8“
Lens	F/NO: 2.4; Focal Length: 3.83mm
Motion Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 70° (116.65° Tilt Coverage)
Night Vision	850 nm IR LED up to 30 ft
Interface & Button	1× RESET Button 1× MicroSD Card Slot (Up to 512 GB)
View Range	360° horizontal, 114° vertical
Resolution	3MP（2304 x 1296）

VIDEO & AUDIO
Maximum Resolution	2K 3MP (2304 x 1296 px)
Frame Rate	15 fps
Digital Zoom	None
Video Compression	H.264
Live View	Yes
Image Enhancement	3D DNR WDR
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	88dB (Level measured at 4-inch/10-cm distance)

STORAGE
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards >
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)

VIDEO
Frame Rate	15fps
Video Streaming	3MP
Video Compression	H.264

DETECTION and NOTIFICATIONS
AI Detection	Motion Detection Person Detection BabyCry Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)

AUDIO
Audio Communication	2-way audio
Audio Input & Output	Built-in microphone and speaker

NETWORK
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Wireless Rate	11Mbps(802.11b) 54Mbps(802.11g) 72.2Mbps(802.11n)
Wireless Security	WPA/WPA2-PSK
RTSP	Yes
ONVIF	Yes
Security	128 bit AES encryption with SSL/TLS
Frequency	2.4 GHz

SECURITY
Security	On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK

POWER
Power Source	9V DC Power Adapter
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	DC9.0V/0.6A(DC Power)

ACTIVITY NOTIFICATIONS
Input Trigger	Motion detection
Output Notification	Push notification

SYSTEM
Regulatory Certification	CE, NCC

HARDWARE
Button	Reset button
Indicator LED	System LED
Adapter Input	100-240VAC, 50/60Hz, 0.3A
Adapter Output	9.0V/0.6A
Power	3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm)
Dimensions (W x D x H)	3 Meter Power Cable

GENERAL
Smart Integration	Google Assistant, Amazon Alexa
Weather Resistance
Mounting Options	Tabletop Ceiling-Mounted
Operating Temperature	0℃~40℃
Storage Temperature	-20℃~70℃
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	5%~90% RH, Non-condensing
Dimensions ( W x D x H )	3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm)
Package Content	Tapo C211 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Anchors Mounting Template Camera Base
Certifications	CEFCCRCMJRFVCCI

Package Content
Package Content	Tapo Pan/Tilt Home Security Wi-Fi Camera Power Adapter Quick Start Guide Mounting Screws Mounting Plate Camera Base

ENVIRONMENT
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10%~90%RH non-condensing
Storage Humidity	5%~90%RH non-condensing
