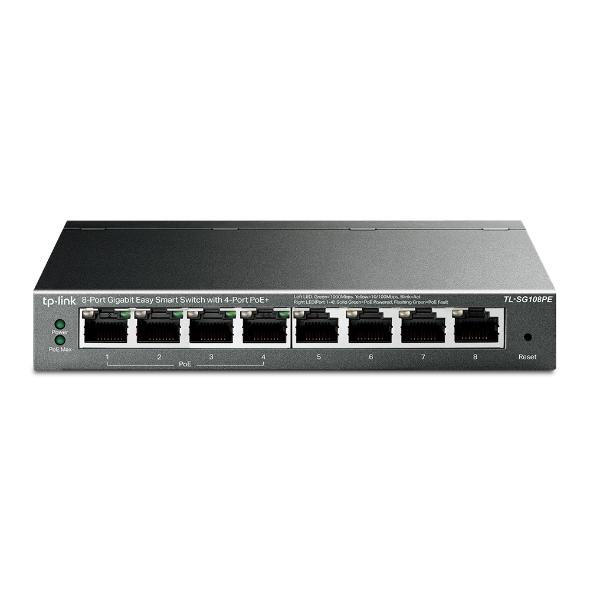

Specification TP-Link TL-SG108PE

Features	Description
Device Type	8-Port Gigabit Easy Smart Switch with 4-Port PoE+
Network Ports	8 × 10/100/1000Mbps RJ45 Ports
PoE Ports	4 × IEEE 802.3af/at PoE+ Ports (Ports 1–4)
PoE Budget	Up to 64W Total PoE Power Budget
PoE Output	Up to 30W Per PoE Port
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
Smart Features	VLAN, QoS, PoE Auto Recovery, IGMP Snooping
Application	IP Camera, Wireless AP, IP Phone, Small Business
Power Supply	External Power Adapter

Device Type	Easy Smart Gigabit PoE+ Switch
Network Ports	8 × Gigabit RJ45 Ports
PoE Ports	4 × IEEE 802.3af/at PoE+ Ports
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	4K
Jumbo Frame	16 KB

PoE FEATURES
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Ports	Ports 1–4
Total PoE Budget	64W
PoE Functions	PoE Auto Recovery, Priority Mode

SMART FEATURES
VLAN	Port-Based, 802.1Q, MTU VLAN
QoS	802.1p / DSCP QoS
Monitoring	Port Mirroring, Cable Diagnostics
Multicast	IGMP Snooping

NETWORK
Network Standard	IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.3af / 802.3at
Transmission Method	Store-and-Forward
Flow Control	IEEE 802.3x Flow Control
Management	Web GUI & Easy Smart Configuration Utility

GENERAL
Housing	Metal Desktop Case
Cooling	Fanless Design
Operating Temperature	0°C to 40°C
Dimensions	158 × 101 × 25 mm
Installation	Desktop / Wall Mount

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

Important: The TP-Link TL-SG108PE is an 8-port Gigabit Easy Smart switch with 4 PoE+ ports and a 64W PoE budget. It supports VLAN, QoS, PoE Auto Recovery, and web-based management, making it ideal for IP cameras, access points, and small business networks.
