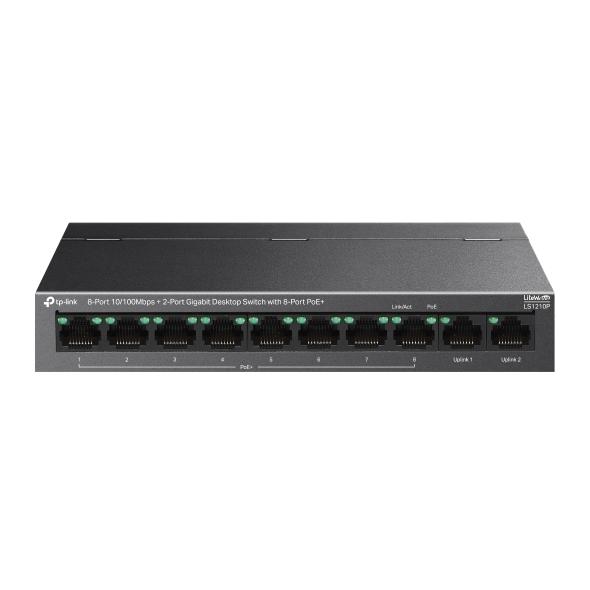

Specifications TP-Link LS1210P
| Features | Description |
|---|---|
| Device Type | 10-Port 10/100Mbps + Gigabit Desktop Switch with 8-Port PoE+ |
| Network Ports | 8 × 10/100Mbps PoE+ RJ45 Ports + 2 × 10/100/1000Mbps Non-PoE RJ45 Ports |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | Ports 1–8 |
| PoE Power | Up to 30 W per PoE Port |
| PoE Budget | 96 W |
| Transmission Distance | Up to 250 m in Extend Mode |
| Isolation Mode | Separates Client Traffic Between PoE Ports for Improved Security |
| PoE Auto Recovery | Automatically Detects and Reboots Unresponsive PoE Devices |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.1664 Mpps |
| Design | Fanless Desktop Design |
| Application | IP Cameras, Access Points, VoIP Phones and Small Surveillance Networks |
| Interface | 8 × 10/100Mbps PoE+ RJ45 Ports + 2 × 10/100/1000Mbps RJ45 Ports |
|---|---|
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | Ports 1–8 |
| PoE Power | Up to 30 W per Port |
| Total PoE Budget | 96 W |
| Network Speed | 10/100Mbps PoE Ports; 10/100/1000Mbps Non-PoE Ports |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.1664 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 2 Mbit |
| Jumbo Frame | 2 KB |
| Transmission Method | Store-and-Forward |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Extend Mode | Ports 1–8, Up to 250 m |
| Isolation Mode | Ports 1–8 |
| PoE Auto Recovery | Ports 1–8 |
| Flow Control | IEEE 802.3x Flow Control |
| Fan | Fanless |
| Power Supply | External Power Adapter, 53.5 VDC / 1.92 A |
| Maximum Power Consumption | 99.52 W |
| SMART FEATURES | |
|---|---|
| 8-Port PoE+ | Provides Eight 10/100Mbps PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port |
| 96W PoE Budget | Provides Up to 96 W Total PoE Power for IP Cameras, Access Points and VoIP Devices |
| 250m Extend Mode | Extends PoE Data and Power Transmission Distance up to 250 m for Long-Distance Surveillance Deployments |
| Isolation Mode | Separates Traffic Between PoE Ports to Improve Network Security and Reduce Network Interference |
| PoE Auto Recovery | Automatically Detects Unresponsive PoE Devices and Reboots Them to Maintain Stable Operation |
| Gigabit Uplink | Provides Two 10/100/1000Mbps Non-PoE Ports for High-Speed Uplink Connections to NVRs, Routers or Other Network Switches |
| Plug and Play | Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Fanless Design | Silent Fanless Construction Provides Quiet and Maintenance-Free Operation |
| GENERAL | |
|---|---|
| Switch Type | Unmanaged PoE+ Desktop Switch |
| PoE Ports | 8 × 10/100Mbps PoE+ |
| Non-PoE Ports | 2 × 10/100/1000Mbps Gigabit RJ45 |
| PoE Budget | 96 W |
| Installation Method | Desktop / Wall Mount |
| Extend Distance | Up to 250 m |
| MAC Address Table | 2K |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Dimensions | 171 × 98 × 27 mm |
| Maximum Power Consumption | 99.52 W |
| Certification | CE and RoHS |
Note: The TP-Link LS1210P is a 10-port unmanaged desktop switch featuring 8 × 10/100Mbps PoE+ ports and 2 × 10/100/1000Mbps Gigabit non-PoE ports. It supports IEEE 802.3af/at, up to 30 W per PoE port and a total PoE budget of 96 W, making it suitable for IP cameras, access points, VoIP phones and surveillance networks.
Important: The TP-Link LS1210P supports Extend Mode for up to 250 m data and power transmission, Isolation Mode for separating client traffic and PoE Auto Recovery for automatically rebooting unresponsive PoE devices. The switch features a fanless design and Plug-and-Play operation with no configuration required. In Extend Mode, the port speed is reduced to 10 Mbps.
