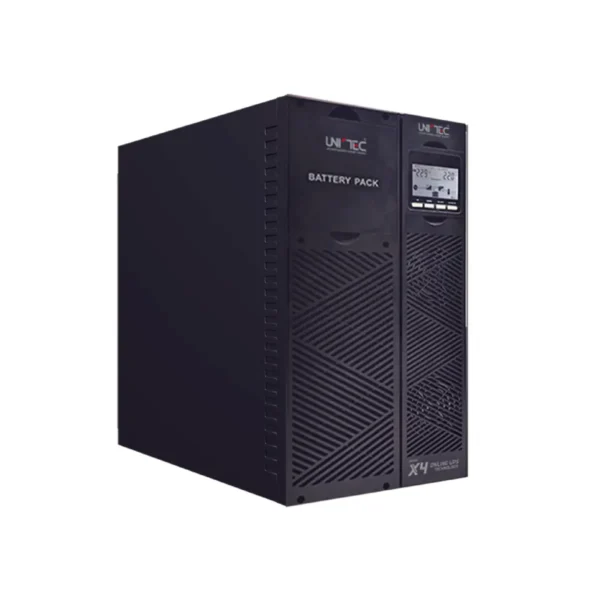

Specifications UNITEC X4-6000-RT

Features	Description
Product Type	True Online Double-Conversion UPS
Series	UNITEC X4 Series
Output Power Capacity	6000 VA / 5400 W
Power Factor	0.9
Topology	True Online Double Conversion
Waveform Type	Pure Sine Wave
Nominal Output Voltage	220/230/240 VAC
Output Voltage Regulation	±1%
Output Frequency	50/60 Hz ±0.1%
Input Voltage	220/230/240 VAC
Input Frequency	45-55 Hz / 55-66 Hz
Input Connection	Hardwire
Output Connections	Hardwire + 2 x IEC320-C13 10A
Battery Type	Lead-Acid
Recharge Time	8-10 Hours to 90% Capacity
Display	LCD Display
Rack / Tower Installation	Rack/Tower Convertible
Parallel Operation	N+X Parallel Redundancy, Up to 4 Units

PROTECTION & FEATURES	Description
UPS Technology	Online Double-Conversion Technology
AVR	Automatic Voltage Regulation
Overload Protection	Supported
Short-Circuit Protection	Supported
Battery Protection	Battery Overcharge and Deep-Discharge Protection
Surge Protection	Supported
Cold Start	Supported
Emergency Power Off	Supported

GENERAL	Description
Dimensions	443 mm x 131 mm x 580 mm
Installation	Rack-Mount or Tower
Rack Height	2U
Battery Cabinet Height	3U Battery Cabinet
Weight	Approx. 23 kg
Operating Temperature	0°C to 40°C
Operating Humidity	20% to 90% RH, non-condensing
Warranty	2 Years On-Site

Note: The UNITEC X4-6000-RT is a 6000VA/5400W True Online Double-Conversion UPS featuring Pure Sine Wave output and a 0.9 power factor. It is designed for servers, network equipment, data centers, and other critical applications requiring stable and reliable power protection.

Important: The X4-6000-RT supports Rack/Tower installation and N+X Parallel Redundancy with up to 4 units. The UPS uses a Lead-Acid battery system and provides 220/230/240 VAC output with ±1% voltage regulation.
