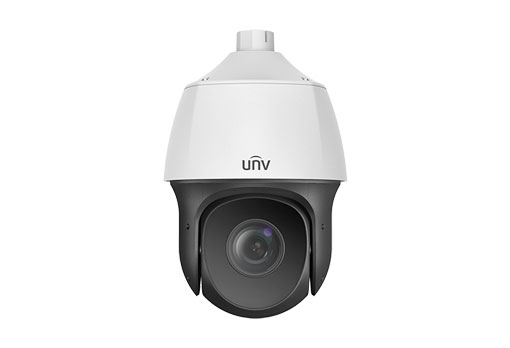

Specifications Uniview IPC6322SR-X33UP-D
| Features | Description |
|---|---|
| Product Type | 2MP 33x Starlight Network PTZ Dome Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels | 2 Megapixel |
| Maximum Resolution | 1920 × 1080 |
| Frame Rate | Up to 60fps |
| Lens | 4.5 ~ 148.5mm Motorized Zoom Lens |
| Optical Zoom | 33x |
| Digital Zoom | 16x |
| Minimum Illumination | 0.001 Lux (Color), 0 Lux with IR |
| WDR | 120dB |
| IR Range | Up to 150m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Video Streams | Triple Streams |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Up to 8 Areas |
| Privacy Mask | Up to 24 Areas |
| Image Enhancement | 2D/3D DNR / BLC / HLC / EIS / Digital Defog |
| Pan Range | 360° |
| Tilt Range | -15° ~ 90° with Auto Reverse |
| Pan Speed | 0.1°/s ~ 300°/s |
| Tilt Speed | 0.1°/s ~ 80°/s |
| Preset Positions | 1024 Presets |
| Patrol | Preset Patrol / Route Patrol / Recorded Patrol |
| Audio | 1 Input / 1 Output, Two-Way Audio |
| Alarm I/O | 2 Inputs / 1 Output |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Storage | Micro SD Card up to 256GB |
| Network Storage | ANR Supported |
| Network Protocols | IPv4 / IPv6 / TCP / UDP / DHCP / PPPoE / RTP / RTSP / HTTP / HTTPS / FTP / NTP / SNMP / QoS |
| ONVIF | Profile S / Profile G / Profile T |
| Power Supply | DC 12V ±25% / PoE+ IEEE 802.3at |
| Power Consumption | 16 ~ 30W |
| Surge Protection | 6kV |
| Ingress Protection | IP66 |
| Operating Temperature | -40°C ~ 65°C |
| Operating Humidity | 10% ~ 90% RH, Non-Condensing |
| Dimensions | Φ220 × 369mm |
| Weight | Approx. 3.4kg |
| CAMERA & LENS | |
|---|---|
| Sensor | 1/2.8″ 2.0MP Progressive Scan CMOS |
| Resolution | 1920 × 1080 |
| Lens | 4.5 ~ 148.5mm Motorized Varifocal Lens |
| Optical Zoom | 33x |
| Digital Zoom | 16x |
| Starlight | Supported |
| IR | Smart IR up to 150m |
| WDR | 120dB |
| PTZ | |
|---|---|
| Pan | 360° Continuous |
| Tilt | -15° ~ 90° |
| Pan Speed | 0.1°/s ~ 300°/s |
| Tilt Speed | 0.1°/s ~ 80°/s |
| Preset | 1024 |
| Preset Patrol | Supported |
| Auto Tracking | Supported |
| NETWORK & STORAGE | |
|---|---|
| Network Port | 1 × RJ45 10/100 Base-TX |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Storage | Micro SD up to 256GB |
| ANR | Supported |
| ONVIF | Profile S / Profile G / Profile T |
| POWER & PROTECTION | |
|---|---|
| Power | DC 12V ±25% / PoE+ IEEE 802.3at |
| Power Consumption | 16 ~ 30W |
| Surge Protection | 6kV |
| Ingress Protection | IP66 |
| Operating Temperature | -40°C ~ 65°C |
| APPLICATION | |
|---|---|
| Outdoor Surveillance | Outdoor PTZ Security Monitoring |
| Large Area Monitoring | Wide-Area Surveillance with 33x Optical Zoom |
| Enterprise | Enterprise and Industrial Security |
| Transportation | Road and Traffic Monitoring |
| Critical Infrastructure | Long-Distance Security Monitoring |
Note: The Uniview IPC6322SR-X33UP-D is a 2MP 33x Starlight Network PTZ Dome Camera featuring a 4.5~148.5mm motorized zoom lens, 33x optical zoom, Smart IR up to 150m, 120dB WDR, Ultra 265 video compression, 360° pan, -15°~90° tilt, Micro SD storage up to 256GB, PoE+ support and IP66 protection. It is designed for outdoor and large-area surveillance applications.
