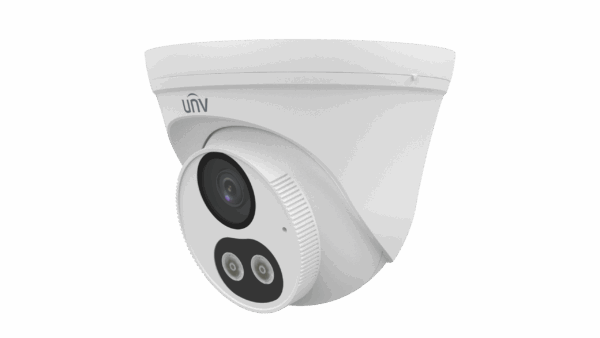

Specifications Uniview IPC3612LB-AF28K-DL
| Features | Description |
|---|---|
| Product Type | 2MP ColorHunter Fixed Dual-Light Turret Network Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Up to 30 fps at 1080P |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, AGC ON; 0 Lux with light |
| Lens Type | Fixed Lens |
| Focal Length | 2.8 mm |
| Horizontal Field of View | 101.1° |
| Vertical Field of View | 55.0° |
| Diagonal Field of View | 111.0° |
| DORI Distance | Detect: 45 m, Observe: 18 m, Recognize: 9 m, Identify: 4.5 m |
| WDR | DWDR |
| IR Range | Up to 30 m |
| Warm Light Range | Up to 30 m |
| Video Compression | Ultra 265, H.265, H.264 |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Power Supply | DC 12 V ±25% or PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.5 W |
| Protection | IP67 |
| SMART FEATURES | Description |
|---|---|
| Dual-Light Technology | Combines Smart IR and warm light illumination for enhanced night-time surveillance |
| Smart IR | Automatically adjusts IR intensity according to the scene |
| Warm Light | Provides full-color illumination up to 30 m |
| Human Body Detection | Detects human body targets to improve event monitoring |
| Motion Detection | Supports motion detection for surveillance events |
| Audio Detection | Detects abnormal audio events using the built-in microphone |
| Digital Defog | Improves image clarity in foggy or hazy conditions |
| 2D/3D DNR | Reduces image noise for clearer video in low-light environments |
| GENERAL | Description |
|---|---|
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| Dimensions | Φ118 mm × 98 mm |
| Weight | Approx. 0.29 kg |
| Material | Metal + Plastic |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤ 95% RH, non-condensing |
| Surge Protection | 4 kV |
| ONVIF | Profile S, Profile G, Profile T |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, and SNMP |
Note: The Uniview IPC3612LB-AF28K-DL is a 2MP ColorHunter fixed dual-light turret network camera featuring a 2.8 mm fixed lens, Smart IR up to 30 m, warm light up to 30 m, built-in microphone, MicroSD storage up to 512 GB, and IP67 protection.
Important: The camera supports both DC 12 V and IEEE 802.3af PoE power, making it suitable for indoor and outdoor surveillance applications requiring reliable low-light performance and dual-light illumination.
