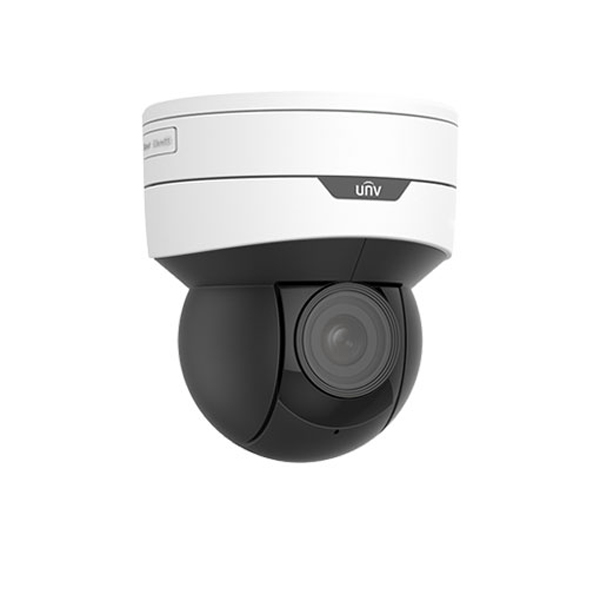

Specifications Uniview IPC6412LR-X5P
| Features | Description |
|---|---|
| Product Type | 2MP 5X IR Network Indoor Mini PTZ Dome Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Up to 30 fps |
| Lens Type | AF Automatic Focusing and Motorized Zoom Lens |
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Digital Zoom | 16X |
| Horizontal Field of View | 29.1° to 104.3° |
| Vertical Field of View | 16° to 55.1° |
| Minimum Illumination | Color: 0.03 Lux @ F1.2, AGC ON; B/W: 0 Lux with IR |
| IR Range | Up to 30 m |
| WDR | DWDR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Storage | MicroSD Card up to 256 GB |
| Audio | Built-in Microphone, Two-way Audio Support |
| Power Supply | DC 12 V ±25% or PoE (IEEE 802.3af) |
| Power Consumption | Max. 12 W |
| PTZ CHARACTERISTICS | Description |
|---|---|
| Pan Range | 0° to 350° |
| Pan Speed | 0.1°/s to 60°/s |
| Preset Pan Speed | 60°/s |
| Tilt Range | 0° to 90° |
| Tilt Speed | 0.1°/s to 50°/s |
| Preset Tilt Speed | 50°/s |
| Number of Presets | Up to 1024 Presets |
| Patrol | Preset Patrol, Route Patrol, and Recorded Patrol |
| Home Position | Supported |
| SMART FEATURES | Description |
|---|---|
| Smart IR | Automatically adjusts IR intensity for improved night-time image quality |
| Backlight Compensation | Supports BLC and HLC |
| Electronic Image Stabilization | Supports EIS |
| Motion Detection | Up to 4 Detection Areas |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 2 Areas |
| ANR | Automatic Network Replenishment with MicroSD Card |
| DORI DISTANCE | Description |
|---|---|
| 2.7 mm | Detect: 43.4 m, Observe: 17.4 m, Recognize: 8.7 m, Identify: 4.3 m |
| 13.5 mm | Detect: 217 m, Observe: 86.8 m, Recognize: 43.4 m, Identify: 21.7 m |
| GENERAL | Description |
|---|---|
| Dimensions | Φ129 mm × 143 mm |
| Weight | Approx. 0.75 kg |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | ≤ 95% RH, non-condensing |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, and SSL |
| ONVIF | Profile S, Profile G |
| Installation Type | Indoor |
Note: The Uniview IPC6412LR-X5P is a 2MP 5X optical zoom indoor Mini PTZ dome camera featuring a 2.7 to 13.5 mm motorized lens, Smart IR up to 30 m, DWDR, Ultra 265 compression, MicroSD storage up to 256 GB, and built-in microphone.
Important: The camera supports 0° to 350° pan and 0° to 90° tilt, up to 1024 presets, DC 12 V or IEEE 802.3af PoE power, and is designed primarily for indoor surveillance applications.
