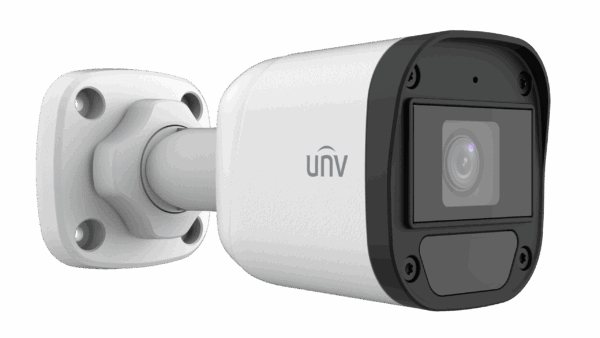

Specifications Uniview UAC-B112-AF28
| Features | Description |
|---|---|
| Product Type | 2MP Fixed IR Bullet Analog Camera |
| Resolution | 2MP (1920 × 1080) |
| Image Sensor | 1/3″ CMOS |
| Lens | Fixed 2.8 mm Lens |
| Lens Mount | M12 |
| Angle of View | Horizontal 90.5° / Vertical 49.6° / Diagonal 109.5° |
| IR Distance | Up to 20 m |
| Video Output | TVI / AHD / CVI / CVBS via BNC |
| Frame Rate | 1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| Audio | Built-in Microphone, audio transmission via coaxial cable |
| Protection | IP67 |
| CAMERA | |
|---|---|
| Image Sensor | 1/3″ CMOS |
| Pixel | 2MP |
| Minimum Illumination | 0.02 Lux (F2.0, AGC ON); 0 Lux with IR ON |
| Day/Night | Auto / Day / Night |
| IR-Cut Filter | ICR with Auto-Switch |
| LENS | |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Horizontal FOV | 90.5° |
| Vertical FOV | 49.6° |
| Diagonal FOV | 109.5° |
| ILLUMINATOR | |
|---|---|
| IR Illuminator | 1 IR Illuminator |
| IR Wavelength | 850 nm |
| IR Distance | Up to 20 m |
| IR Lifetime | ≥ 60,000 hours |
| Smart IR | Supported |
| VIDEO | |
|---|---|
| Resolution | 1080P: 1920 × 1080 / 720P: 1280 × 720 |
| TVI | 1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| AHD | 1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| CVI | 1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| CVBS | PAL / NTSC |
| Shutter Speed | PAL: 1/25s–1/50000s; NTSC: 1/30s–1/50000s |
| Exposure Mode | Global / BLC / HLC / DWDR |
| Digital Noise Reduction | 2D / 3D DNR |
| White Balance | Auto / Manual |
| WDR | DWDR |
| Flip | 180° Horizontal / 180° Vertical |
| Defog | N/A |
| AUDIO | |
|---|---|
| Microphone | Built-in Microphone |
| Audio Transmission | Via Coaxial Cable |
| Audio Support | TVI 1080P @ 25fps / 30fps; CVI 1080P @ 25fps / 30fps |
| INTERFACE | |
|---|---|
| Video Output | 1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface | 5.5 mm DC Power Interface |
| Power Supply | DC 12V ±25% |
| GENERAL | |
|---|---|
| Material | Plastic |
| Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Surge Protection | 4 kV |
| Power Consumption | Max. 2.2W |
| Dimensions | 142 × 63 × 65 mm |
| Weight | 135 g |
| Mounting | Surface Mount; Optional Backbox and Pole Mount Bracket |
| OSD Languages | 11 Languages |
| Certifications | CE, FCC, RoHS, WEEE |
Note: The Uniview UAC-B112-AF28 is a 2MP Fixed IR Bullet Analog Camera featuring a 1/3″ CMOS sensor, 2.8 mm fixed lens, 1080P resolution, TVI/AHD/CVI/CVBS video output, 20 m IR illumination, built-in microphone, DWDR, 2D/3D noise reduction and IP67 protection. It supports DC 12V power and coaxial audio transmission.
Important: This is an Analog Camera, not an IP network camera. Video is transmitted through BNC coaxial cable and supports TVI / AHD / CVI / CVBS. The built-in microphone can transmit audio through the coaxial cable when used with a compatible DVR.
