| Features |
Description |
| Device Type |
4 Channel PoE+ Network Video Recorder (NVR) |
| Video Input |
4-Channel IP Camera Input |
| Maximum Resolution |
Up to 8MP (4K) Recording |
| PoE Ports |
4 × 10/100 Mbps PoE+ Ports |
| PoE Budget |
53W Total PoE Power Budget |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability |
2-ch @ 8MP / 4-ch @ 4MP |
| Playback |
4-Channel Synchronous Playback |
| Storage |
1 × SATA HDD Support Up to 10TB |
| Video Output |
HDMI 4K + VGA Output |
| Network |
1 × RJ45 10/100 Mbps Ethernet Port |
| Management |
VIGI App / Web Interface / VIGI Security Manager |
| Power Supply |
53.5V DC / 1.31A |
| Video Input |
4-Channel IP Video Input |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
60 Mbps |
| Recording Resolution |
8MP / 5MP / 4MP / 3MP / 1080p / 720p |
| HDMI Output |
3840 × 2160 @ 30Hz (4K) |
| VGA Output |
1920 × 1080 @ 60Hz |
| DECODING & RECORDING |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability |
2 Channel @ 8MP / 4 Channel @ 4MP |
| Playback Mode |
Instant Playback, Event Playback, Tag Playback, Regular Playback |
| Recording Mode |
Manual, Schedule, Motion Detection Recording |
| Backup |
USB Backup / Video Clip Export |
| PoE |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Ports |
4 × RJ45 10/100 Mbps PoE Ports |
| Total PoE Budget |
53W |
| Maximum Power Per Port |
30W |
| NETWORK |
| Ethernet |
1 × RJ45 10/100 Mbps Adaptive Ethernet Port |
| Protocols |
TCP/IP, DHCP, DNS, NTP, HTTP, HTTPS, RTSP, RTP, UPnP |
| Compatibility |
ONVIF / CGI |
| Remote Access |
Android, iOS, Web Browser |
| STORAGE & INTERFACE |
| HDD Interface |
1 × SATA Interface |
| Maximum HDD Capacity |
Up to 10TB |
| USB Port |
2 × USB 2.0 |
| Audio Interface |
1 × Audio Input / 1 × Audio Output |
| Video Output |
1 × HDMI / 1 × VGA |
| SMART FEATURES |
| AI Detection |
Human Detection, Vehicle Detection |
| Smart Event |
Motion Detection, Line Crossing, Intrusion Detection |
| Alarm |
Video Loss, Disk Error, Network Error |
| Remote Monitoring |
Mobile App Notification & Remote Viewing |
| GENERAL |
| Power Supply |
53.5V DC / 1.31A |
| Power Consumption |
4.25W (Without HDD) |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
246.2 × 148.2 × 45 mm |
| Weight |
Approx. 1 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

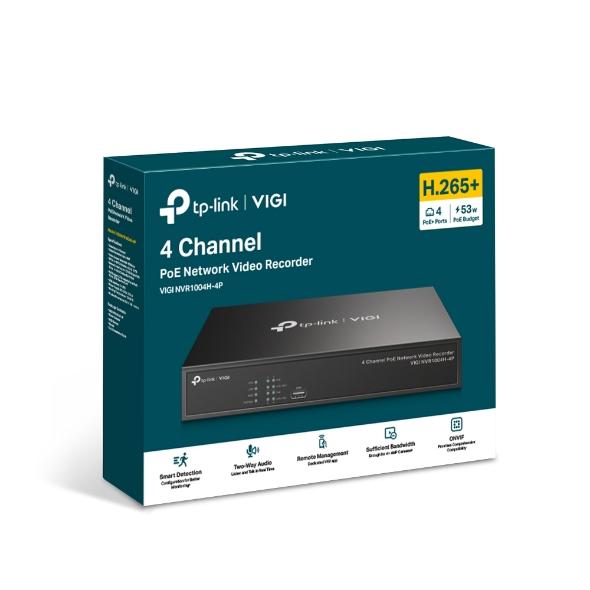

Important: The TP-Link VIGI NVR1004H-4P is a 4-channel PoE+ Network Video Recorder designed for IP surveillance systems. It supports 4K recording, 4 PoE+ ports with 53W power budget, H.265+ video compression, AI detection features, HDMI 4K output, synchronous playback, and HDD storage up to 10TB. Suitable for homes, offices, shops, and small business CCTV installations.
