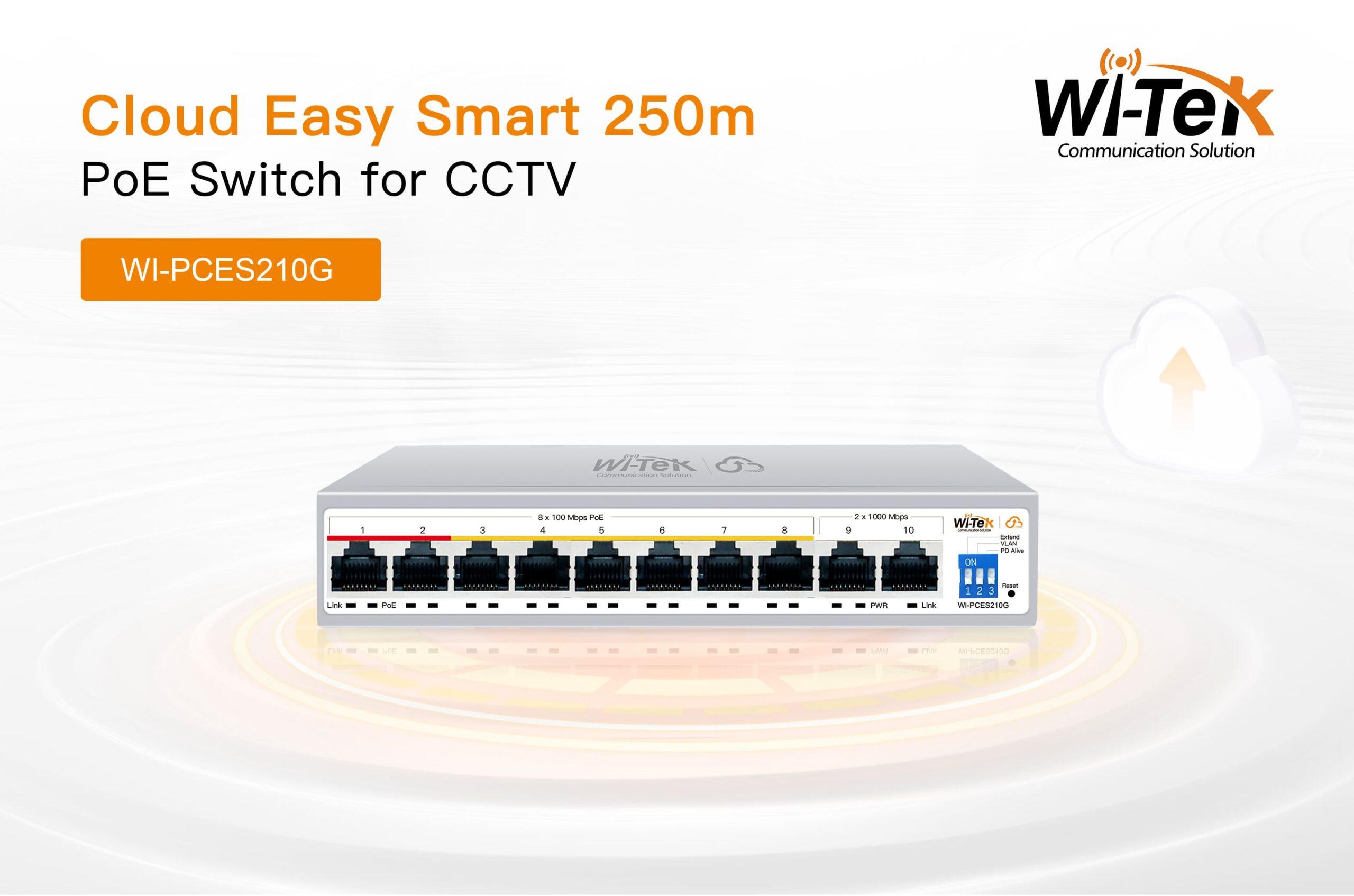

WI-PCES210G | Cloud easy smart 250m PoE switch

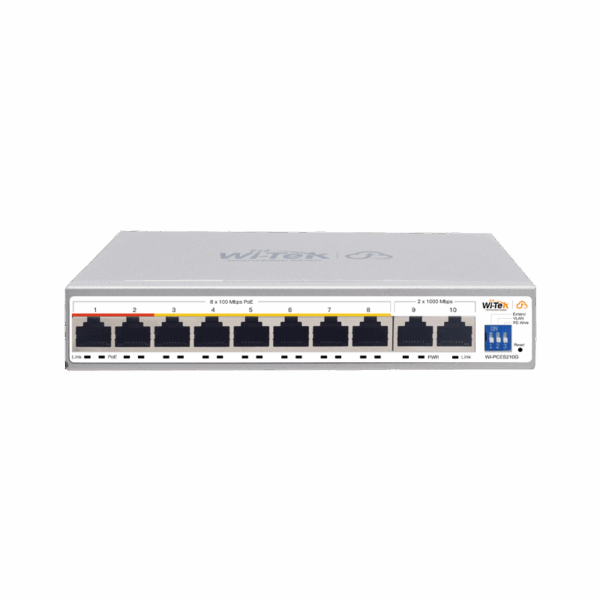

Wi-Tek WI-PCES210G

8-Port Gigabit PoE Easy Smart Switch

8×10/100Mbps PoE ports with 2×Gigabit Uplink ports
Supports IEEE 802.3af/at PoE with 100W power budget
Supports VLAN, Extend PoE up to 250m and PD Alive
Supports ONVIF detection and Wi-Tek Cloud management
Ideal for IP Camera, IP Phone and Wi-Fi installations
Plug & Play with easy smart management features

Specifications Wi-Tek WI-PCES210G

Features	Description
Device Type	Easy Smart PoE Switch
Network Ports	8 × 10/100 Mbps PoE RJ45 Ports + 2 × Gigabit Uplink Ports
PoE Standard	IEEE 802.3af/at PoE+
PoE Budget	Up to 100W Total PoE Power Budget
PoE Distance	Extend PoE Transmission Distance Up to 250m
Switch Capacity	5.6 Gbps
Management	Web Management / Wi-Tek Cloud Management
Smart Functions	VLAN Isolation, PD Alive Watchdog, ONVIF Detection
Application	IP Camera, IP Phone, Wireless AP, Network Devices
Power Supply	AC 100-240V

Device Type	Managed PoE Ethernet Switch
PoE Ports	8 × 10/100 Mbps RJ45 PoE Ports
Uplink Ports	2 × 10/100/1000 Mbps Gigabit Ethernet Ports
Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.17 Mpps
MAC Address Table	4K

PoE FEATURES
PoE Standard	IEEE 802.3af / IEEE 802.3at
Port 1-2 Power	Hi-PoE Up to 45W Per Port
Port 3-8 Power	802.3af/at Up to 30W Per Port
Total PoE Budget	Up to 100W
PoE Extend Mode	Supports Long Distance PoE Transmission Up to 250m

NETWORK FEATURES
Management	Web Interface / Wi-Tek Cloud Platform
VLAN	Port-Based VLAN / Port Isolation
Watchdog Function	PD Alive Automatically Detects and Reboots PoE Devices
ONVIF Support	Automatically Detects ONVIF IP Cameras
Storm Control	Broadcast Storm Prevention

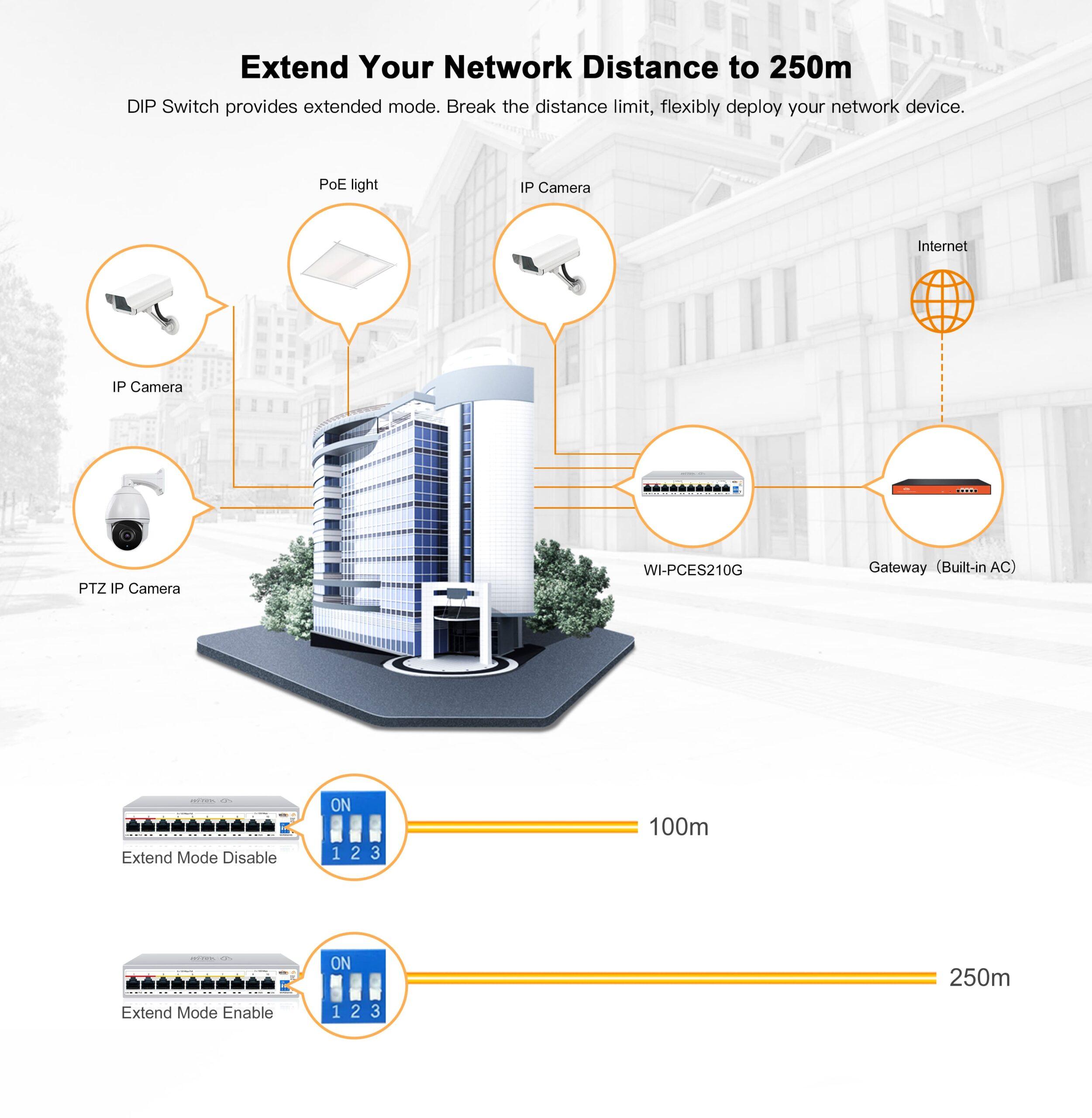

DIP SWITCH MODES
Extend Mode	Extends PoE Transmission Distance Up to 250m
VLAN Mode	Isolates PoE Ports to Improve Network Security
PD Alive Mode	Enables Automatic PoE Device Monitoring and Restart

GENERAL
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	2.4W (Without PoE Load)
Operating Temperature	-10°C to 50°C
Operating Humidity	10% to 90% RH (Non-Condensing)
Dimensions	169 × 95 × 32 mm
Weight	Approx. 0.48 kg

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation. :contentReference[oaicite:0]{index=0}

Important: The Wi-Tek WI-PCES210G is an Easy Smart PoE Switch designed for IP surveillance, Wi-Fi networks, and IoT applications. It provides 8 PoE ports with up to 100W power budget, 2 Gigabit uplink ports, long-distance PoE extension up to 250 meters, VLAN isolation, PD Alive watchdog, ONVIF detection, and cloud management support.
