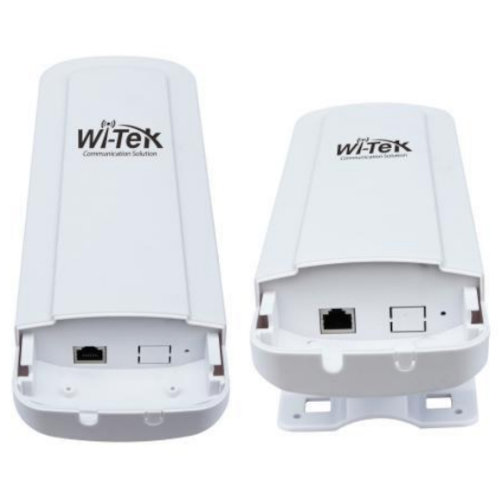

Specifications Wi-Tek WI-AP315
| Features |
Description |
| Product Type |
750Mbps Dual-Band Outdoor Wireless Access Point |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac |
| Operating Frequency |
2.4GHz + 5GHz |
| Wireless Speed |
Up to 300Mbps at 2.4GHz + 450Mbps at 5GHz |
| Antenna |
Built-in Omni Antennas |
| Ethernet Ports |
2 × 10/100Mbps RJ45 |
| PoE |
IEEE 802.3at PoE |
| Maximum Clients |
Up to 90 Users |
| Protection Rating |
IP65 |
| Management |
Web / Hardware Controller / Wi-Tek Cloud |
| HARDWARE |
| Ethernet Ports |
2 × 10/100Mbps Base-T RJ45 |
| WAN/LAN Configuration |
2 × WAN/LAN |
| Reset Button |
1 × Reset Button |
| RAM |
128MB DDR2 |
| Flash Memory |
16MB |
| Power Supply |
IEEE 802.3at PoE / DC 12V 1.5A |
| Power Consumption |
15W |
| WIRELESS |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac |
| Operating Band |
2.4GHz + 5GHz |
| 2.4GHz MIMO |
2 × 2 MIMO |
| 5GHz MIMO |
1 × 1 MIMO |
| 2.4GHz Speed |
Up to 300Mbps |
| 5GHz Speed |
Up to 450Mbps |
| 2.4GHz Antenna Gain |
3.5dBi |
| 5GHz Antenna Gain |
4dBi |
| Channel Width |
2.4GHz: 20/40MHz
5GHz: 20/40/80MHz |
| Maximum Transmit Power |
Up to 27dBm |
| WIRELESS FEATURES |
| Multi-SSID |
Supported |
| SSID per Radio |
Multiple SSIDs |
| SSID to VLAN Mapping |
Supported |
| QVLAN |
Supported |
| Rate Limit |
Per SSID / Per Client |
| Fast Roaming |
802.11k / 802.11v |
| Load Balancing |
Supported |
| OPERATING MODES |
| Fit AP |
Supported |
| Fat AP / Router Mode |
Supported |
| Repeater |
Supported |
| WISP |
Supported |
| NETWORK FEATURES |
| WAN Type |
Static IP / DHCP / PPPoE |
| LAN Type |
Static IP / DHCP |
| VLAN |
IEEE 802.1Q / QVLAN |
| SSID VLAN Binding |
Supported |
| DHCP Server |
Supported |
| NAT |
Supported |
| QoS |
Supported |
| SECURITY |
| Wireless Security |
WPA / WPA2-PSK / WPA2-Enterprise |
| 802.1X |
Supported |
| MAC Blacklist |
Supported |
| MAC Whitelist |
Supported |
| Wireless Client Isolation |
Supported |
| Captive Portal |
Supported |
| CAPTIVE PORTAL |
| Captive Portal |
Supported |
| Authentication |
Local Authentication / External Authentication |
| Voucher |
Supported |
| Portal Page |
Customizable |
| MANAGEMENT |
| Local Management |
Web Management |
| Hardware Controller |
Supported |
| Cloud Management |
Wi-Tek Cloud Platform |
| Remote Management |
Supported |
| Centralized Configuration |
Supported |
| Centralized Monitoring |
Supported |
| Firmware Upgrade |
Supported |
| POE |
| PoE Standard |
IEEE 802.3at |
| PoE Input |
48V PoE |
| Power Consumption |
15W |
| OUTDOOR & GENERAL |
| Protection Rating |
IP65 Weatherproof |
| Installation |
Wall Mount / Pole Mount |
| Dimensions |
315 × 145 × 80mm |
| Weight |
0.8kg |
| Operating Temperature |
-40°C to 55°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
5%–95% RH, Non-Condensing |
| Storage Humidity |
5%–95% RH, Non-Condensing |
Note: The Wi-Tek WI-AP315 is a 750Mbps Dual-Band Outdoor Wireless Access Point supporting IEEE 802.11ac, with up to 300Mbps on 2.4GHz and 450Mbps on 5GHz. It features 2 × 10/100Mbps Ethernet ports, IEEE 802.3at PoE, built-in omni-directional antennas, IP65 weatherproof protection, Fit AP, Router, Repeater and WISP modes, Captive Portal, QVLAN, Multi-SSID, hardware controller and Wi-Tek Cloud management.
Important: The WI-AP315 is a Dual-Band Wi-Fi 5 (802.11ac) Outdoor Access Point with a maximum combined wireless rate of 750Mbps — up to 300Mbps at 2.4GHz and 450Mbps at 5GHz. It provides 2 × 10/100Mbps Ethernet ports and supports IEEE 802.3at PoE. The enclosure is rated IP65, with a wireless coverage range of up to approximately 400m LOS and support for up to 90 users. It also supports Fit AP, Router, Repeater, WISP, QVLAN, Multi-SSID, Captive Portal, Fast Roaming and Cloud/Hardware Controller management.
