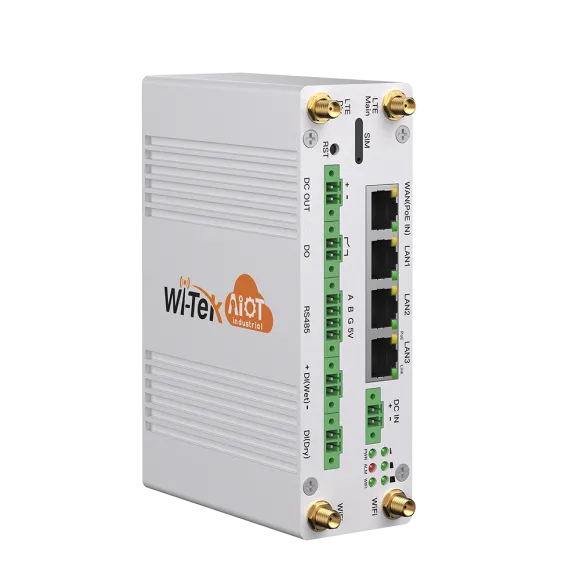

Specifications Wi-Tek WI-IOT110(V2)

Features	Description
Product Type	Industrial 4G LTE IoT Gateway
4G LTE Category	Cat4
4G LTE Speed	Up to 150Mbps Download / 50Mbps Upload
Wireless Standard	IEEE 802.11b/g/n
Wireless Frequency	2.4GHz
Wireless Speed	Up to 300Mbps
Ethernet Ports	4 × 10/100Mbps RJ45 (1 WAN + 3 LAN)
SIM Card	2 × Nano SIM Slots
PoE Input	IEEE 802.3bt PoE Input
PoE Output	IEEE 802.3af/at PoE Output
DC Output	12V / 1.5A
Industrial Interface	1 × RS-485
IoT Interface	1 × DI (Dry) + 1 × DI (Wet) + 1 × DO
Management	Web / Wi-Tek Cloud / SD-LAN
Mounting	DIN-Rail

HARDWARE
Ethernet Ports	4 × 10/100Mbps RJ45
WAN Port	1 × 10/100Mbps WAN
LAN Ports	3 × 10/100Mbps LAN
SIM Slots	2 × Nano SIM
RS-485	1 × RS-485
DI	1 × Dry Contact DI + 1 × Wet Contact DI
DO	1 × Digital Output
Wi-Fi	2.4GHz 300Mbps
Power Input	IEEE 802.3bt PoE / DC Power
DC Output	12V / 1.5A

4G LTE
LTE Category	Cat4
Download Speed	Up to 150Mbps
Upload Speed	Up to 50Mbps
SIM Slots	2 × Nano SIM
SIM Failover	Supported
Network Support	4G LTE / 3G / 2G
Dual SIM	Supported

WIRELESS
Wireless Standard	IEEE 802.11b/g/n
Operating Frequency	2.4GHz
Wireless Speed	Up to 300Mbps
Channel Width	20MHz / 40MHz
Wireless Security	WPA / WPA2

POE
PoE Input	IEEE 802.3bt
PoE Output	IEEE 802.3af / 802.3at
PoE Input Port	1 × WAN Port
PoE Output Ports	3 × LAN Ports
PoE Output	Supported on LAN Ports

DC POWER
DC Input	DC Power Input
DC Output	12V / 1.5A
Output Application	Power Supply for Compatible External Devices

INDUSTRIAL & IOT INTERFACES
RS-485	1 × RS-485
Digital Input	1 × Dry Contact DI
Digital Input	1 × Wet Contact DI
Digital Output	1 × DO
Modbus	Supported
Solar IoT Controller	Supported
Solar Power Monitoring	Supported
Battery Status Monitoring	Supported

NETWORK FEATURES
WAN	4G LTE / Ethernet
WAN Backup	Supported
Dual SIM Failover	Supported
DHCP Server	Supported
Static IP	Supported
PPPoE	Supported
NAT	Supported
Port Forwarding	Supported
DDNS	Supported
VLAN	Supported

SD-LAN & CLOUD
SD-LAN	Supported
Cloud Management	Wi-Tek Cloud
Remote Management	Supported
Remote Monitoring	Supported
Centralized Management	Supported
Solar Monitoring	Real-Time Monitoring / Trendline Monitoring

VPN & SECURITY
OpenVPN	Supported
VPN Pass-through	Supported
Firewall	Supported
Access Control	Supported
MAC Filtering	Supported
IP Filtering	Supported

MANAGEMENT & PROTOCOLS
Web Management	Supported
Cloud Management	Wi-Tek Cloud
SD-LAN	Supported
SNMP	Supported
MQTT	Supported
Modbus TCP/IP	Supported
Hardware Watchdog	Supported

POWER & GENERAL
Power Input	IEEE 802.3bt PoE / DC Power
DC Output	12V / 1.5A
Mounting	DIN-Rail, Vertical / Horizontal
Operating Temperature	-40°C to 75°C
Application	Industrial / Energy / Agriculture / Remote Monitoring

Note: The Wi-Tek WI-IOT110(V2) is an Industrial 4G LTE IoT Gateway supporting 4G LTE Cat4 with speeds up to 150Mbps download and 50Mbps upload. It provides 4 × 10/100Mbps Ethernet ports, 2 × Nano SIM slots, 2.4GHz Wi-Fi up to 300Mbps, RS-485, DI/DO interfaces, IEEE 802.3bt PoE Input, IEEE 802.3af/at PoE Output and a 12V/1.5A DC output. It is designed for industrial IoT, solar power, remote monitoring and automation applications.

Important: The WI-IOT110(V2) is an Industrial 4G LTE IoT Gateway with 4 × 10/100Mbps Ethernet ports (1 WAN + 3 LAN) and Dual Nano-SIM connectivity for reliable 4G failover. It supports IEEE 802.3bt PoE Input through the WAN port and IEEE 802.3af/at PoE Output through the LAN ports, together with a 12V / 1.5A DC Output. The device also includes RS-485, 1 × Dry DI, 1 × Wet DI and 1 × DO for IoT/industrial applications. Through RS-485, it can act as a Solar IoT Controller to monitor photovoltaic status, battery capacity and charging information in real time through Wi-Tek Cloud. It also supports SD-LAN, OpenVPN, Modbus and Cloud Management.
