Specifications Wi-Tek WI-LTE115-O V2
| Features |
Description |
| Product Type |
Outdoor 4G LTE Wireless Router |
| 4G LTE Category |
Cat4 |
| 4G LTE Speed |
Up to 150Mbps Download / 50Mbps Upload |
| Wireless Standard |
IEEE 802.11b/g/n |
| Wireless Frequency |
2.4GHz |
| Wireless Speed |
Up to 300Mbps |

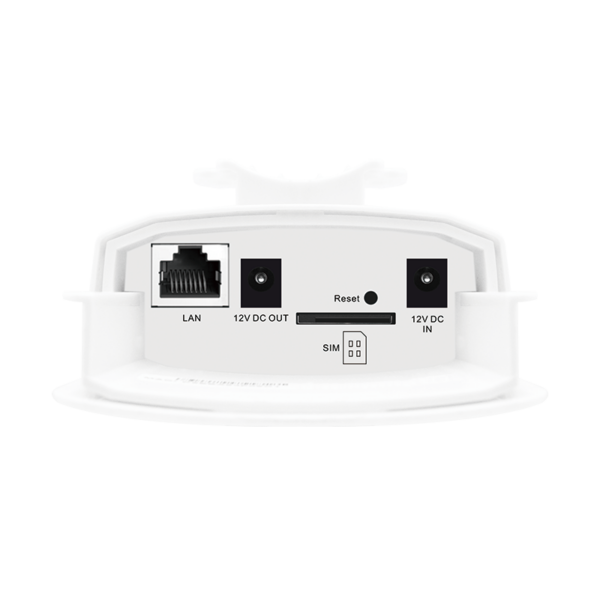

| Ethernet Port |
1 × 10/100Mbps RJ45 |
| SIM Card |
1 × SIM Card Slot |
| DC Output |
1 × DC 12V / 1A Output |
| Protection Rating |
IP65 |
| Management |
Web Management / Wi-Tek Cloud |
| HARDWARE |
| Ethernet Port |
1 × 10/100Mbps Base-T RJ45 |
| SIM Slot |
1 × SIM Card Slot |
| DC Input |
1 × DC 12V / 1.5A |
| DC Output |
1 × DC 12V / 1A |
| Reset Button |
1 × Reset Button |
| Wi-Fi Antenna |
5dBi |
| Transmit Power |
20dBm |
| Power Consumption |
<5W |
| 4G LTE |
| LTE Category |
Cat4 |
| Download Speed |
Up to 150Mbps |
| Upload Speed |
Up to 50Mbps |
| Network Support |
4G LTE / 3G / 2G |
| SIM Card |
Supported |
| LTE FDD |
B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| LTE TDD |
B40 |
| WCDMA |
B1 / B5 / B8 |
| GSM |
800 / 850 / 900 / 1800 / 1900MHz |
| WIRELESS |
| Wireless Standard |
IEEE 802.11b/g/n |
| Operating Frequency |
2.4GHz |
| Wireless Speed |
Up to 300Mbps |
| Antenna Gain |
5dBi |
| Transmit Power |
20dBm |
| Channel Width |
20MHz / 40MHz |
| NETWORK FEATURES |
| Internet Connection |
4G LTE / Ethernet |
| DHCP Server |
Supported |
| DHCP Client |
Supported |
| NAT |
Supported |
| Port Forwarding |
Supported |
| Static Route |
Supported |
| DDNS |
Supported |
| IPv4 / IPv6 |
Supported |
| SD-LAN & CLOUD |
| SD-LAN |
Supported |
| Cloud Management |
Wi-Tek Cloud |
| Web Management |
Supported |
| Remote Management |
Supported |
| Remote Monitoring |
Supported |
| Firmware Upgrade |
Supported |
| SECURITY |
| Firewall |
Supported |
| Wireless Security |
WPA / WPA2 |
| MAC Filtering |
Supported |
| IP Filtering |
Supported |
| Port Filtering |
Supported |
| Access Control |
Supported |
| OUTDOOR & GENERAL |
| Protection Rating |
IP65 Weatherproof |
| Installation |
Outdoor Wall / Pole Mount |
| Dimensions |
152 × 78 × 35mm |
| Power Supply |
DC 12V / 1.5A |
| DC Output |
DC 12V / 1A |
| Power Consumption |
<5W |
| Operating Temperature |
-40°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
10%–95% RH, Non-Condensing |

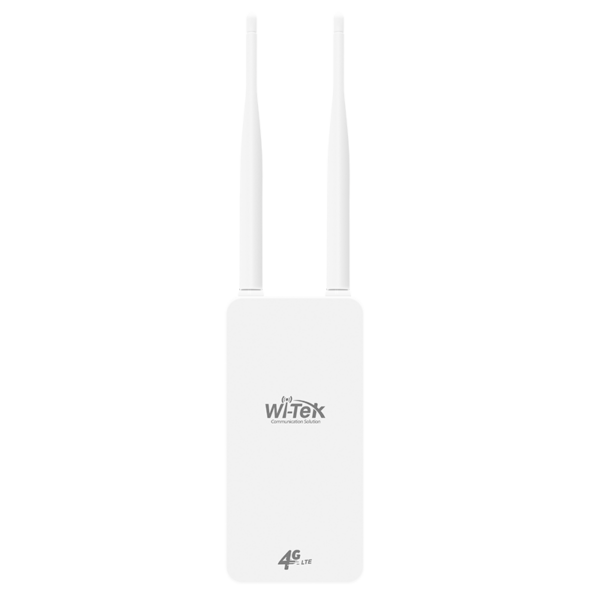

Note: The Wi-Tek WI-LTE115-O V2 is an Outdoor 4G LTE Cat4 Wireless Router featuring up to 150Mbps download and 50Mbps upload speeds, 2.4GHz Wi-Fi up to 300Mbps, 1 × 10/100Mbps Ethernet port and a built-in SIM card slot. It also provides a DC 12V/1A output for powering compatible devices such as IP cameras. The router supports SD-LAN, OpenVPN, Static Routing, Port Forwarding, DDNS and Wi-Tek Cloud management.
Important: The WI-LTE115-O V2 is an Outdoor 4G LTE Cat4 Router with 1 × 10/100Mbps Ethernet port and 2.4GHz Wi-Fi up to 300Mbps. It supports up to 150Mbps download / 50Mbps upload over 4G LTE and features IP65 weatherproof protection. A key feature is the DC 12V / 1A output, which can be used to directly power compatible devices such as an IP camera. It also supports SD-LAN, OpenVPN, Cloud Management and Web Management.
