Specifications Wi-Tek WI-LTE117-O(V2)
| Features | Description |
|---|---|
| Product Type | Outdoor 4G LTE PoE Router |
| 4G LTE Category | Cat4 |
| 4G LTE Speed | Up to 150Mbps Download / 50Mbps Upload |
| Wireless Standard | IEEE 802.11b/g/n |
| Wireless Frequency | 2.4GHz |
| Wireless Speed | Up to 300Mbps |

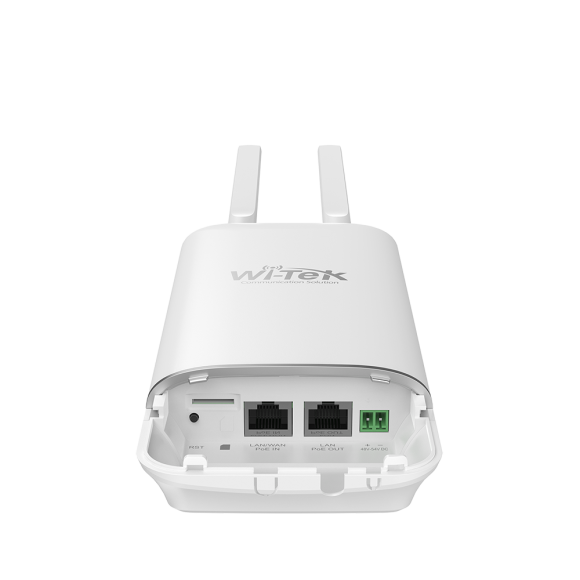

| Ethernet Ports | 2 × 10/100Mbps RJ45 |
| PoE Input | 1 × IEEE 802.3at PoE+ |
| PoE Output | Up to 2 × IEEE 802.3af PoE Out |
| SIM Card | 1 × Micro SIM (3FF) |
| Protection Rating | IP65 |
| Management | Web Management / Wi-Tek Cloud |
| HARDWARE | |
|---|---|
| Ethernet Ports | 2 × 10/100Mbps RJ45 |
| WAN/LAN Configuration | 1 × LAN/WAN + 1 × LAN PoE Out |
| SIM Slot | 1 × Micro SIM (3FF) |
| Reset Button | 1 × Reset Button |
| RAM | 128MB |
| Flash Memory | 16MB |
| 4G Antenna | 2 × 5dBi Detachable Antennas |
| Wi-Fi Antenna | Built-in / External 5dBi Antennas |
| 4G LTE | |
|---|---|
| LTE Category | Cat4 |
| Download Speed | Up to 150Mbps |
| Upload Speed | Up to 50Mbps |
| SIM Card | 1 × Micro SIM (3FF) |
| LTE FDD | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 / B66 |
| LTE TDD | B38 / B40 / B41 |
| WCDMA | B1 / B2 / B4 / B5 / B8 |
| GSM | 850 / 900 / 1800 / 1900MHz |
| WIRELESS | |
|---|---|
| Wireless Standard | IEEE 802.11b/g/n |
| Operating Frequency | 2.4GHz |
| Wireless Speed | Up to 300Mbps |
| MIMO | 2 × 2 MIMO |
| Antenna Gain | 5dBi |
| Transmit Power | 20dBm |
| Channel Width | 20MHz / 40MHz |
| POE | |
|---|---|
| PoE Input | IEEE 802.3at PoE+ |
| PoE Output | Up to 2 × IEEE 802.3af |
| PoE Output Power | Up to 30W per Port |
| PoE Output Ports | 2 × 10/100Mbps PoE Out |
| PoE Input Limitation | When powered via PoE Input, only 1 PoE Output port is available |
| NETWORK FEATURES | |
|---|---|
| Operating Mode | Cellular Router / Wireless Router |
| Internet Connection | 4G LTE / Ethernet |
| WAN Type | DHCP / Static IP / PPPoE |
| DHCP Server | Supported |
| NAT | Supported |
| Port Forwarding | Supported |
| Static Routing | Supported |
| DDNS | Supported |
| IPv4 / IPv6 | Supported |
| Network Backup | Supported |
| Automatic Failover | Supported |
| SD-LAN | |
|---|---|
| SD-LAN | Supported |
| Cloud Networking | Supported |
| Remote Network Access | Supported |
| Network Monitoring | Supported |
| Centralized Management | Supported |
| VPN | |
|---|---|
| OpenVPN | Supported |
| VPN Pass-through | Supported |
| SECURITY | |
|---|---|
| Firewall | Supported |
| Wireless Security | WPA / WPA2 |
| MAC Filtering | Supported |
| IP Filtering | Supported |
| Port Filtering | Supported |
| Access Control | Supported |
| MANAGEMENT | |
|---|---|
| Local Management | Web Management |
| Cloud Management | Wi-Tek Cloud |
| Remote Management | Supported |
| Remote Monitoring | Supported |
| Firmware Upgrade | Supported |
| Traffic Monitoring | Supported |
| OUTDOOR & GENERAL | |
|---|---|
| Protection Rating | IP65 Weatherproof |
| Installation | Outdoor Wall Mount / Pole Mount |
| Power Supply | 48–54V DC / 2A or IEEE 802.3at PoE+ |
| Maximum Power Consumption | <12W |
| Dimensions | 349 × 84 × 41mm |
| Operating Temperature | -30°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–95% RH, Non-Condensing |
Note: The Wi-Tek WI-LTE117-O(V2) is an Outdoor 4G LTE Cat4 Router featuring up to 150Mbps download and 50Mbps upload, 2.4GHz Wi-Fi up to 300Mbps, 2 × 10/100Mbps Ethernet ports and IP65 weatherproof protection. It supports SD-LAN, OpenVPN, automatic failover, Wi-Tek Cloud management and up to 2 × IEEE 802.3af PoE output ports for powering connected devices such as IP cameras.
Important: The WI-LTE117-O(V2) is an Outdoor 4G LTE PoE Router with 2 × 10/100Mbps Ethernet ports. It supports 4G LTE Cat4 up to 150Mbps download / 50Mbps upload and 2.4GHz Wi-Fi up to 300Mbps. The main feature is its up to 2 × IEEE 802.3af PoE output ports, allowing the router to provide both data and power to compatible PoE devices such as IP cameras. When the router itself is powered through 802.3at PoE Input, only 1 PoE Output is available; with DC power input, up to 2 PoE Outputs are available. The unit is IP65 rated and supports SD-LAN, automatic failover, OpenVPN and Wi-Tek Cloud management.
