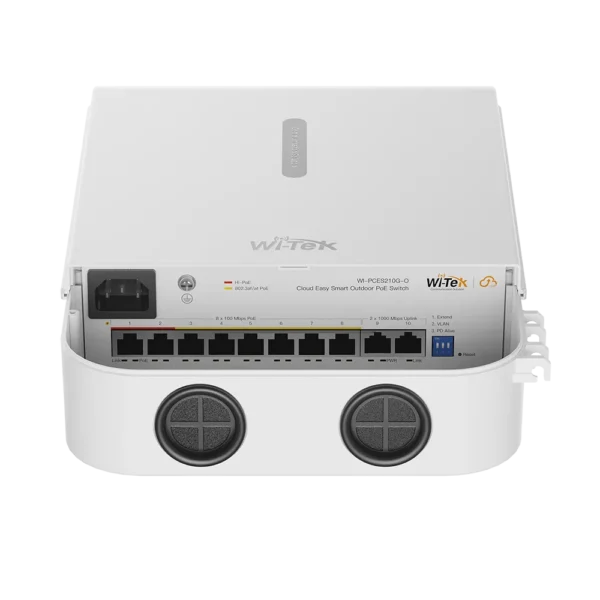

Specifications Wi-Tek WI-PCES210G-O
| Features | Description |
|---|---|
| Product Type | Cloud Easy Smart Outdoor PoE Switch |
| PoE Ports | 8 × 10/100Mbps RJ45 PoE |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45 |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 100W |
| Switching Capacity | 5.6Gbps |
| Forwarding Rate | 4.17Mpps |
| Management | Web Management / Wi-Tek Cloud / Mobile App |
| Enclosure | IP65 Weatherproof and Dustproof |
| HARDWARE | |
|---|---|
| PoE Ports | 8 × 10/100Mbps RJ45 |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45 |
| PoE Port 1–2 | Hi-PoE up to 45W per port |
| PoE Port 3–8 | IEEE 802.3af/at, up to 30W per port |
| MAC Address Table | 4K Entries |
| Packet Buffer | 4Mbit |
| Jumbo Frame | Up to 9216 Bytes |
| Flash Memory | 16MB |
| Fan | Fanless |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 5.6Gbps |
| Forwarding Rate | 4.17Mpps |
| Forwarding Mode | Store and Forward |
| MAC Address Table | 4K Entries |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Ports | 8 × 10/100Mbps PoE |
| Port 1–2 | Hi-PoE up to 45W per port |
| Port 3–8 | 802.3af/at up to 30W per port |
| Total PoE Budget | 100W |
| PoE Watchdog | PD Alive |
| PoE Pin Assignment | 1/2(+), 3/6(-) |
| SMART FEATURES | |
|---|---|
| Extend Mode | PoE transmission up to 250m at 10Mbps |
| VLAN Mode | Each PoE port sends data only to the Uplink ports |
| PD Alive Mode | Automatically Detects and Restarts Unresponsive PoE Devices |
| ONVIF | Automatically Detects Compatible IP Cameras |
| MANAGEMENT | |
|---|---|
| Cloud Management | Wi-Tek Cloud |
| Mobile App | Remote Monitoring and Configuration |
| Alarm Notification | Supported |
| Remote Management | Supported |
| OUTDOOR & GENERAL | |
|---|---|
| Protection Rating | IP65 |
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | 2.4W Idle / Up to 102.4W Full Load |
| Dimensions | 314 × 210 × 89mm |
| Installation | Wall Mount / Pole Mount |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Fan | Fanless |
Note: The Wi-Tek WI-PCES210G-O is an Outdoor Cloud Easy Smart PoE Switch featuring 8 × 10/100Mbps PoE ports and 2 × Gigabit uplink ports. It provides a 100W total PoE budget, IP65 weatherproof protection, Wi-Tek Cloud management, ONVIF support, Extend Mode up to 250m and PD Alive PoE watchdog.
Important: The WI-PCES210G-O is a Fast Ethernet PoE switch with 8 × 10/100Mbps PoE ports and 2 × 10/100/1000Mbps Gigabit uplink ports. Ports 1–2 support Hi-PoE up to 45W per port, while Ports 3–8 support IEEE 802.3af/at up to 30W per port. The total PoE budget is 100W. Extend Mode supports PoE transmission up to 250m at 10Mbps, and the outdoor enclosure is rated IP65 with an operating temperature of -30°C to 60°C.
