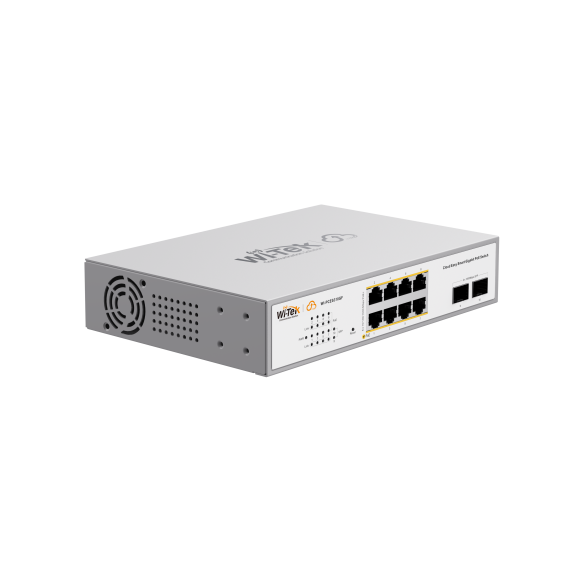

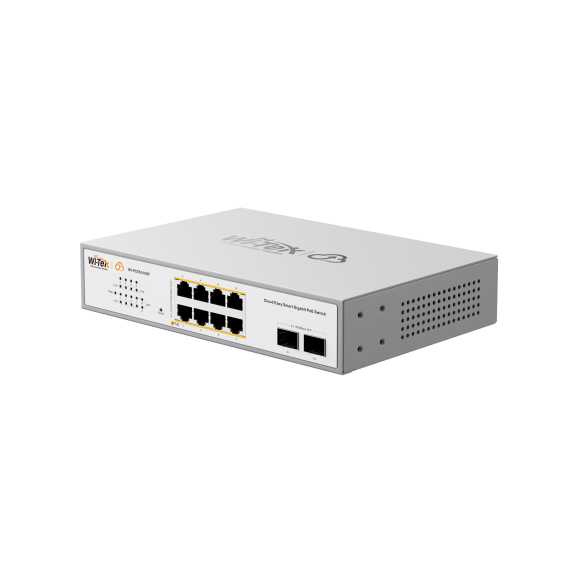

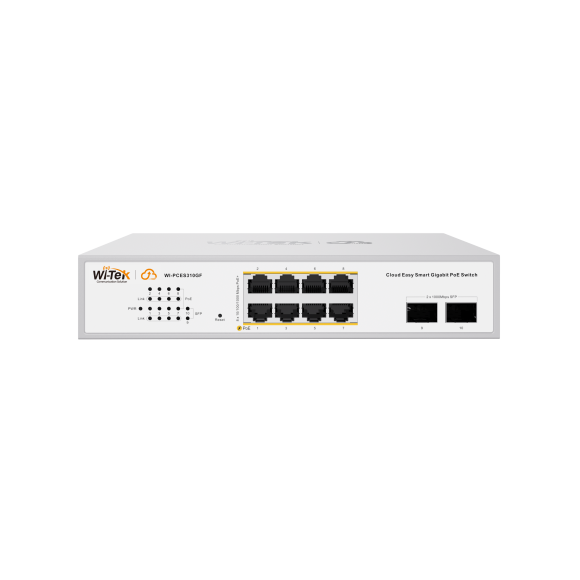

Specifications Wi-Tek WI-PCES310GF(V2)
| Features | Description |
|---|---|
| Product Type | Cloud Easy Smart Gigabit PoE Switch |
| PoE Ports | 8 × 10/100/1000Mbps RJ45 PoE+ |
| Uplink Ports | 2 × 1000Mbps SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | Up to 120W |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| Management | Web Management / Wi-Tek Cloud / Mobile App |
| HARDWARE | |
|---|---|
| PoE Ports | 8 × 10/100/1000Mbps RJ45 |
| Uplink Ports | 2 × 1000Mbps SFP |
| PoE Port 1–8 | IEEE 802.3af/at |
| MAC Address Table | 8K Entries |
| Jumbo Frame | Up to 9000 Bytes |
| Mounting | Rack-Mountable |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| Forwarding Mode | Store and Forward |
| MAC Address Table | 8K Entries |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Ports | 8 × Gigabit PoE+ |
| PoE Power per Port | Up to 30W |
| Total PoE Budget | Up to 120W |
| PoE Watchdog | Supported |
| SMART FEATURES | |
|---|---|
| Loop Prevention | Automatic Anti-Loop |
| ONVIF | Automatically Detects Compatible IP Cameras |
| Link Aggregation | Supported |
| QoS | Supported |
| VLAN | Supported |
| Port Mirroring | Supported |
| Storm Control | Supported |
| Bandwidth Control | Supported |
| SFP | |
|---|---|
| SFP Ports | 2 × 1000Mbps SFP |
| Uplink Speed | 1Gbps |
| Fiber Connectivity | Supported with Compatible 1000Mbps SFP Modules |
| MANAGEMENT | |
|---|---|
| Web Management | Supported |
| Cloud Management | Wi-Tek Cloud |
| Mobile App | Remote Monitoring and Configuration |
| Alarm Notification | Supported |
| Firmware Upgrade | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | Up to 130W |
| Dimensions | 222 × 156 × 46mm |
| Installation | Rack Mount / Desktop |
| Operating Temperature | -10°C to 50°C |
Note: The Wi-Tek WI-PCES310GF(V2) is a Cloud Easy Smart Gigabit PoE Switch featuring 8 × Gigabit PoE+ ports, 2 × 1000Mbps SFP uplink ports, up to 120W PoE budget, ONVIF detection, automatic loop prevention, link aggregation, QoS and Wi-Tek Cloud management.
Important: The WI-PCES310GF(V2) is a Gigabit PoE+ switch with 8 × 10/100/1000Mbps PoE ports and 2 × 1000Mbps SFP uplink ports. Each PoE port supports up to 30W, with a total PoE budget of 120W. The switch also supports Wi-Tek Cloud management, ONVIF, automatic loop prevention, link aggregation and QoS.
