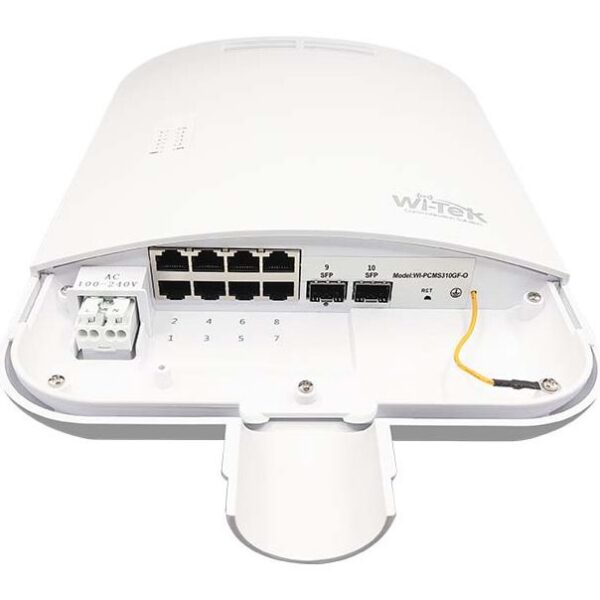

WI-Tek WI-PCMS310GF-O V2

Wi-tek WI-PCMS310GF-O V2

WI-Tek WI-PCMS310GF-O V2

Cloud Managed Outdoor L2+ Gigabit PoE Switch

  • 8 × Gigabit PoE+ ports and 2 × Gigabit SFP uplink slots
  • 110W total PoE budget with 802.3af/at/bt support
  • 20Gbps switching capacity with 14.88Mpps forwarding rate
  • Supports Static Routing, VLAN, QoS, STP/RSTP/MSTP and Link Aggregation
  • Supports ACL, 802.1X, DHCP/ARP Snooping and ONVIF
  • IP65 outdoor design with Wi-Tek Cloud, Web/CLI/SNMP management
หมวดหมู่: , , ป้ายกำกับ:

Specifications Wi-Tek WI-PCMS310GF-O V2

Features Description
Product Type Cloud Managed Outdoor L2+ Gigabit PoE Switch
PoE Ports 8 × 10/100/1000Mbps RJ45 PoE
Uplink Ports 2 × 100/1000Mbps SFP
PoE Standard IEEE 802.3af/at/bt
PoE Budget Up to 110W
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps
Layer Layer 2+
Management Web / CLI / SNMP / RMON / Wi-Tek Cloud
Enclosure Outdoor Weatherproof and Dustproof Design
HARDWARE
PoE Ports 8 × 10/100/1000Mbps RJ45
Uplink Ports 2 × 100/1000Mbps SFP Slots
Console Port 1 × Console Port
PoE Port 1–2 IEEE 802.3af/at/bt, up to 90W per port
PoE Port 3–8 IEEE 802.3af/at, up to 30W per port
MAC Address Table 8K Entries
Packet Buffer 4.1Mbit
Jumbo Frame Up to 10000 Bytes
Memory 128MB
Flash 32MB
PERFORMANCE
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps
Forwarding Mode Store and Forward
MAC Address Table 8K Entries
Packet Buffer Memory 4.1Mbit
Jumbo Frame Up to 10000 Bytes
POE
PoE Standard IEEE 802.3af / 802.3at / 802.3bt
PoE Port 1–2 Up to 90W per port
PoE Port 3–8 Up to 30W per port
Total PoE Budget Up to 110W
PoE Power Supply Type End-Span
PoE Pin Assignment 1/2(-), 3/6(+) and 4/5(+), 7/8(-)
NETWORK FEATURES
VLAN IEEE 802.1Q VLAN
Static Routing Supported
DHCP Server Supported
DHCP Snooping Supported
ACL Layer 2–Layer 4 Access Control List
QoS 802.1p / DSCP / WRR / Priority Queue
Link Aggregation IEEE 802.3ad LACP
STP STP / RSTP
IGMP Snooping Supported
Storm Control Supported
SECURITY
802.1X Supported
Port Security Supported
IP-MAC-Port Binding Supported
DoS Defense Supported
DHCP Snooping Supported
ACL L2–L4 ACL
SFP
SFP Slots 2 × 100/1000Mbps SFP
Supported Speed 100Mbps / 1000Mbps
Fiber Connectivity Supported with Compatible SFP Modules
MANAGEMENT
Web Management Supported
CLI Console / Telnet / SSH
Cloud Management Wi-Tek Cloud
SNMP SNMP v1 / v2c / v3
RMON Supported
LLDP IEEE 802.1AB
Firmware Upgrade Supported
Configuration Backup Supported
OUTDOOR & GENERAL
Enclosure Weatherproof and Dustproof
Power Supply AC 100–240V, 50/60Hz
Installation Wall Mount / Outdoor Installation
Operating Temperature -40°C to 75°C
Operating Humidity 10%–90% RH, Non-Condensing

Note: The Wi-Tek WI-PCMS310GF-O V2 is a cloud-managed outdoor Layer 2+ Gigabit PoE switch featuring 8 × 10/100/1000Mbps RJ45 PoE ports and 2 × 100/1000Mbps SFP uplink slots. It supports IEEE 802.3af/at/bt, up to 110W total PoE power, Static Routing, VLAN, QoS, ACL, DHCP Snooping, STP/RSTP, SNMP, RMON and Wi-Tek Cloud management.

Important: The WI-PCMS310GF-O V2 is a Layer 2+ Gigabit managed outdoor PoE switch. Ports 1–2 support 802.3af/at/bt up to 90W per port, while Ports 3–8 support 802.3af/at up to 30W per port. The total PoE power budget is 110W. It provides 2 × 100/1000Mbps SFP uplinks and supports advanced features including Static Routing, ACL, DoS Defense, DHCP Snooping, SNMP, RMON and cloud management.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ่อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
