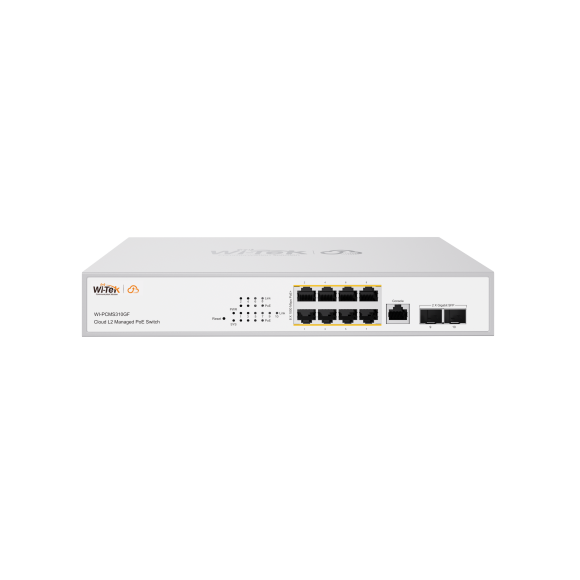

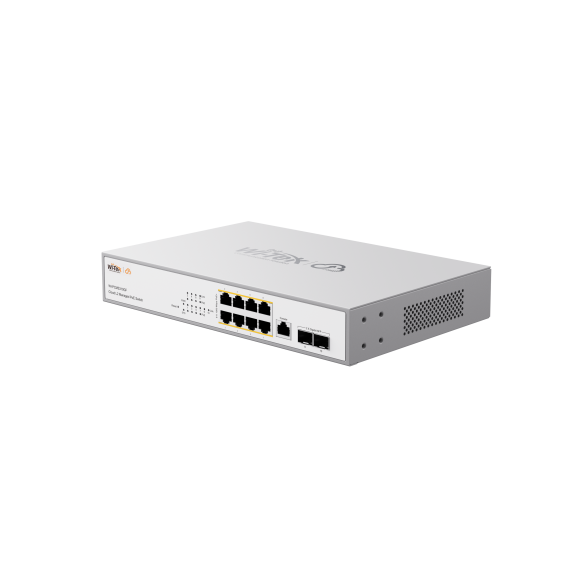

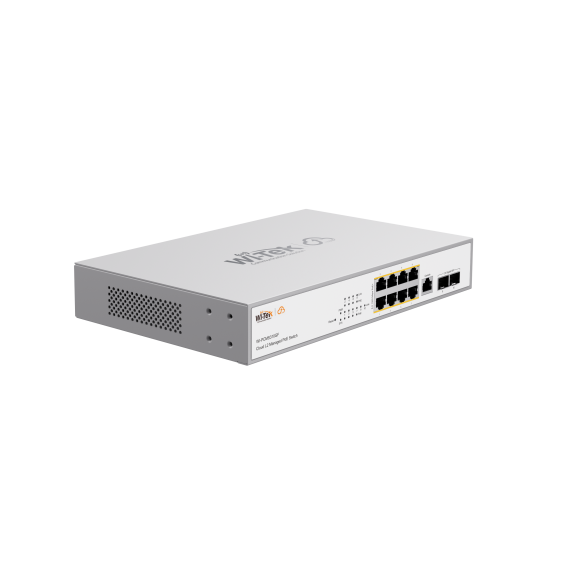

Specifications Wi-Tek WI-PCMS310GF V2
| Features | Description |
|---|---|
| Product Type | Cloud L2+ Managed Gigabit PoE Switch |
| PoE Ports | 8 × 10/100/1000Mbps RJ45 PoE+ |
| Uplink Ports | 2 × 1000Mbps SFP Slots |
| Console Port | 1 × Console Port |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | Up to 140W |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| Layer | Layer 2+ |
| Management | Web / CLI / SNMP / RMON / Wi-Tek Cloud |
| HARDWARE | |
|---|---|
| Downlink Ports | 8 × 10/100/1000Mbps RJ45 |
| Uplink Ports | 2 × 1000Mbps SFP Slots |
| Management Port | 1 × Console Port |
| PoE Ports | Port 1–8 |
| MAC Address Table | 8K Entries |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | Up to 10KB |
| Memory | 128MB DDR3 |
| Flash | 32MB |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| Forwarding Mode | Store and Forward |
| MAC Address Table | 8K Entries |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | Up to 10KB |
| Standards | IEEE 802.3i / 802.3u / 802.3ab / 802.3z |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Ports | 8 × Gigabit PoE+ |
| PoE Power per Port | Up to 30W |
| Total PoE Budget | Up to 140W |
| PoE Power Supply Type | End-Span |
| PoE Pin Assignment | 1/2(+) and 3/6(-) |
| NETWORK FEATURES | |
|---|---|
| VLAN | 802.1Q VLAN / Management VLAN / Private VLAN / Voice VLAN / Protocol-Based VLAN / MAC-Based VLAN / Q-in-Q |
| Static Routing | Supported |
| DHCP Server | Supported |
| DHCP Snooping | Supported |
| IGMP Snooping | Supported |
| Link Aggregation | Supported |
| Loop Prevention | Supported |
| QoS | Supported |
| Bandwidth Control | Supported |
| STP | STP / RSTP / MSTP |
| SECURITY | |
|---|---|
| ACL | L2–L4 Access Control List |
| 802.1X | Supported |
| Port Security | Supported |
| IP-MAC-Port Binding | Supported |
| DoS Defense | Supported |
| Storm Control | Supported |
| DHCP Snooping | Supported |
| SFP | |
|---|---|
| SFP Slots | 2 × 1000Mbps SFP |
| Uplink Speed | 1Gbps |
| Fiber Connectivity | Supported with Compatible 1000Mbps SFP Modules |
| MANAGEMENT | |
|---|---|
| Web Management | Supported |
| CLI | Console / Telnet / SSH |
| Cloud Management | Wi-Tek Cloud |
| SNMP | SNMP v1 / v2c / v3 |
| RMON | Supported |
| LLDP | IEEE 802.1AB |
| NTP / SNTP | Supported |
| Firmware Upgrade | Supported |
| Configuration Backup | Supported |
| Cloud VLAN Configuration | Supported |
| Topology Display | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 14.2W Idle / Up to 154.2W at 100% Traffic with PoE |
| Dimensions | 280 × 180 × 44mm |
| Installation | Rack Mount / Desktop |
| Fan | Fanless |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
Note: The Wi-Tek WI-PCMS310GF V2 is a Cloud L2+ Managed Gigabit PoE Switch featuring 8 × 10/100/1000Mbps PoE+ ports, 2 × 1000Mbps SFP uplink slots and 1 × console port. It supports IEEE 802.3af/at PoE with up to 140W total PoE budget, 20Gbps switching capacity, Static Routing, VLAN, QoS, Link Aggregation, STP/RSTP/MSTP, ACL, DHCP Snooping, SNMP, RMON and Wi-Tek Cloud management.
Important: The WI-PCMS310GF V2 is a Layer 2+ Gigabit Managed PoE+ Switch with 8 × 10/100/1000Mbps PoE ports and 2 × 1000Mbps SFP uplink slots. Each PoE port supports up to 30W, with a total PoE budget of 140W. It also supports Static Routing, VLAN, ACL, DHCP Snooping, STP/RSTP/MSTP, QoS, Link Aggregation, SNMP, RMON and Wi-Tek Cloud management. Unlike the WI-PCMS310GF-O V2, this model is designed for indoor/rack installation and is not an outdoor IP-rated switch.
