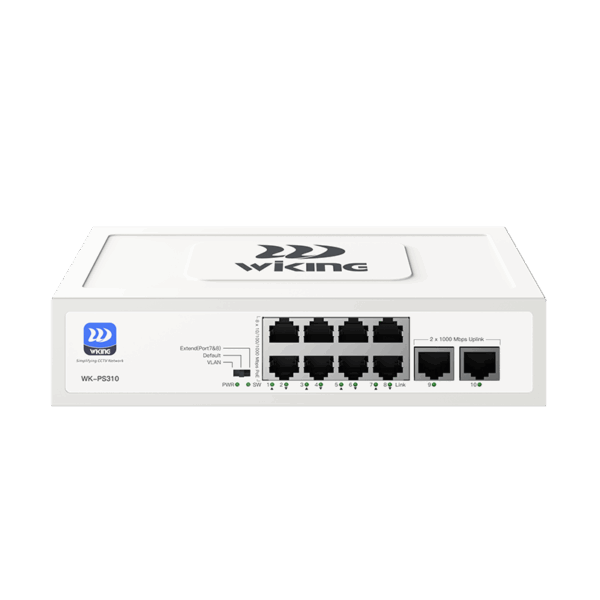

WK-PS310 | 1000 Mbps PoE Switch

Wi-Tek WK-PS310

10-Port Gigabit PoE Switch

8×Gigabit PoE ports with 2×Gigabit Uplink ports
Supports IEEE 802.3af/at PoE with 76W power budget
Supports Extend PoE up to 250m, Port VLAN and PD Alive
PD Alive automatically restarts unresponsive PoE devices
Fanless metal design with quiet operation
Plug & Play suitable for CCTV and network devices

Specifications Wi-Tek WK-PS310

Features	Description
Device Type	10-Port Gigabit PoE Switch
Network Ports	8 × Gigabit PoE Ports + 2 × Gigabit RJ45 Uplink Ports
PoE Standard	IEEE 802.3af/at PoE+
PoE Budget	Up to 76W Total PoE Power Budget
PoE Output	Up to 30W Per PoE Port
Transmission Distance	Extend PoE Transmission Distance Up to 250m
Switch Capacity	20 Gbps
Smart Functions	Port VLAN, Extend Mode, PD Alive Function
Design	Metal Housing with Fanless Silent Operation
Application	IP Camera, Wireless AP, IP Phone, Network Devices
Power Supply	AC 100-240V

Device Type	Unmanaged Gigabit PoE Ethernet Switch
PoE Ports	8 × 10/100/1000Mbps RJ45 PoE Ports
Uplink Ports	2 × 10/100/1000Mbps RJ45 Ports
SFP Port	None
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	2K

PoE FEATURES
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Output	Up to 30W Per Port
Total PoE Budget	Up to 76W
PoE Pin Assignment	1/2(+), 3/6(-)

SMART FEATURES
Extend Mode	Extends PoE Data and Power Transmission Up to 250m
Port VLAN	Isolates PoE Ports to Improve Network Security
PD Alive	Automatically Detects and Reboots Unresponsive PoE Devices
Plug & Play	No Configuration Required

NETWORK
Network Standard	IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab / IEEE 802.3x / IEEE 802.3af / IEEE 802.3at
Transmission Method	Store and Forward
Jumbo Frame	9KB
Flow Control	IEEE 802.3x Full Duplex Flow Control

PROTECTION
Surge Protection	Up to ±4kV
ESD Protection	Contact ±6kV / Air ±8kV
Housing	Metal Case
Cooling	Fanless Passive Cooling

GENERAL
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	Max. 90W
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% RH (Non-Condensing)
Dimensions	200 × 118 × 44 mm
Weight	Approx. 1.5 kg

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

Important: The Wi-Tek WK-PS310 is a 10-port Gigabit PoE switch with 8 PoE ports, 2 Gigabit uplinks, and a 76W PoE budget. It supports Extend Mode up to 250m, Port VLAN, and PD Alive, making it ideal for IP cameras, wireless APs, and other PoE network devices.
