| Features |
Description |
| Device Type |
10GBASE-LR SFP+ Optical Transceiver Module |
| Form Factor |
SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate |
10.3125Gbps |
| Fiber Type |
Single Mode Fiber (SMF) |
| Wavelength |
1310nm |
| Connector Type |
Duplex LC Connector |
| Transmission Distance |
Up to 10km |
| Transmitter Type |
1310nm DFB Laser |
| Receiver Type |
PIN Photodiode |
| Compatible Devices |
Ruijie Switch, Router and Network Devices with SFP+ Port |
| Optical Standard |
IEEE 802.3ae 10GBASE-LR |
| Fiber Mode |
Single Mode Fiber (SMF) 9/125μm |
| Fiber Connector |
Duplex LC UPC |
| Digital Diagnostic Monitoring (DDM/DOM) |
Supported |
| Hot Swappable |
Supported |
| Application |
Data Center, Campus Network, Switch Uplink, Server and Storage Connection |
| SMART FEATURES |
| High-Speed Fiber Link |
Provides 10Gbps Fiber Connectivity for High-Bandwidth Network Backbone |
| Long Distance Transmission |
Supports Up to 10km Transmission Over Single Mode Fiber Cable |
| SFP+ Hot Plug Design |
Allows Easy Installation and Replacement Without Network Downtime |
| DDM Monitoring |
Supports Optical Power, Temperature, Voltage and Transceiver Status Monitoring |
| Low Power Consumption |
Energy-Efficient Design with Maximum Power Consumption ≤1.5W |
| GENERAL |
| Dimensions |
56.5 × 13.5 × 8.5mm |
| Weight |
Approximately 35g |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Power Supply |
3.3V DC |
| Warranty |
3 Years |

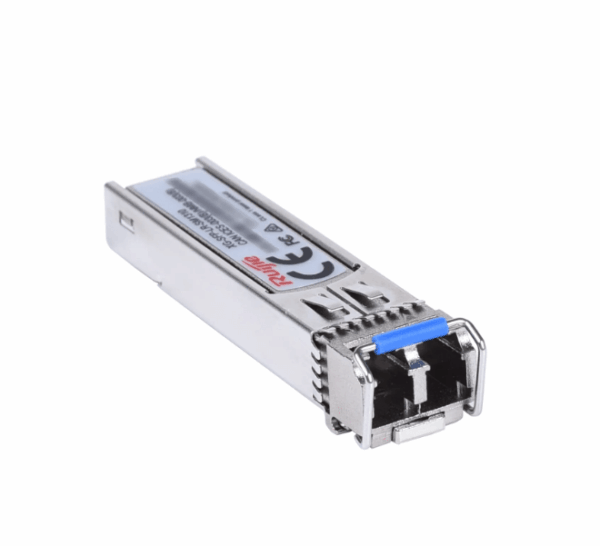

Note: The XG-SFP-LR-SM1310 is a 10GBASE-LR SFP+ optical transceiver module designed for high-speed single-mode fiber networks. It supports 10Gbps data transmission, 1310nm wavelength, Duplex LC connector, DDM monitoring, and transmission distances up to 10km over SMF. It is suitable for data centers, enterprise networks, campus networks, switch uplinks, servers, and storage systems.
Important: The Ruijie XG-SFP-LR-SM1310 is a 10G SFP+ single-mode optical module featuring IEEE 802.3ae 10GBASE-LR support, 10.3125Gbps data rate, 1310nm wavelength, Duplex LC interface, DDM/DOM monitoring, hot-swappable design, low power consumption, and transmission distance up to 10km. It is ideal for long-distance 10GbE fiber uplink connections between switches, routers, servers, and network infrastructure devices.
