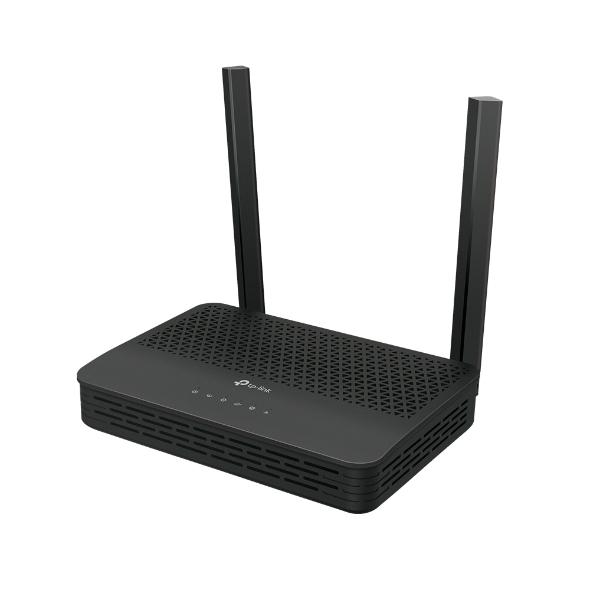

คุณสมบัติ TP-Link XX230
| Features | Description |
|---|---|
| Device Type | AX1800 Dual Band Wi-Fi 6 XPON Router |
| XPON Support | Supports GPON and EPON Dual Mode |
| Wireless Speed | 574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Network Ports | 1 × Gigabit WAN/LAN + 3 × Gigabit LAN Ports |
| Antennas | 4 × External High-Gain Antennas |
| Mesh Support | EasyMesh Compatible |
| Management | Aginet App, Web UI, OMCI, TR-069, TR-369 |
| Application | FTTH Home, Office, IPTV, High-Speed Internet |
| Power Supply | 12V DC / 1.5A |
| Device Type | AX1800 XPON Router |
|---|---|
| XPON Port | 1 × SC/APC GPON/EPON Port |
| WAN/LAN Port | 1 × 10/100/1000Mbps RJ45 WAN/LAN |
| LAN Ports | 3 × 10/100/1000Mbps RJ45 |
| Wireless Speed | 1201Mbps (5GHz) + 574Mbps (2.4GHz) |
| USB Port | 1 × USB 2.0 |
| Antennas | 4 × External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/n/b/g 2.4GHz |
| Mesh Technology | EasyMesh with 802.11k/v/r Support |
| Wireless Security | WPA/WPA2/WPA3 Encryption |
| Advanced Features | MU-MIMO, OFDMA, Beamforming |
| NETWORK | |
|---|---|
| Network Protocol | IPv4 / IPv6 |
| VPN | PPTP, IPSec, OpenVPN Server |
| IPTV | IGMP Proxy, Snooping, Bridge, Tag VLAN |
| Management | Web GUI, Aginet App, OMCI, TR-069, TR-369 |
| GENERAL | |
|---|---|
| Power Supply | 12V DC / 1.5A |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Dimensions | Compact Desktop Design |
| Installation | Desktop |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link XX230 is an AX1800 Wi-Fi 6 XPON router supporting GPON/EPON dual mode, EasyMesh, and Gigabit Ethernet ports. It delivers high-speed fiber connectivity for homes and small offices with advanced wireless performance.
