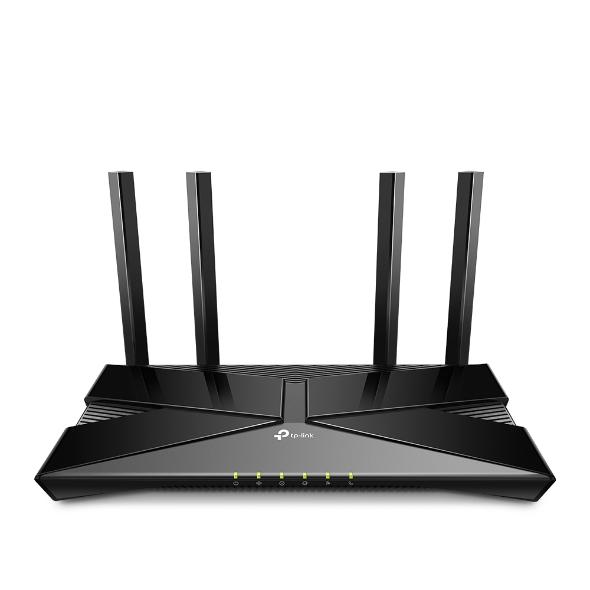

คุณสมบัติ TP-Link XX230v
| Features | Description |
|---|---|
| Device Type | AX1800 Dual Band Wi-Fi 6 XPON VoIP Router |
| XPON Support | Supports GPON and EPON Dual Mode |
| Wireless Speed | 574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Network Ports | 1 × Gigabit WAN/LAN + 3 × Gigabit LAN Ports + 1 × FXS Phone Port |
| Voice Features | SIP VoIP, Caller ID, Call Waiting, Call Forwarding |
| Antennas | 4 × External High-Gain Antennas |
| Mesh Support | EasyMesh Compatible |
| Management | Aginet App, Web UI, OMCI, TR-069, TR-369 |
| Power Supply | 12V DC / 1.5A |
| Device Type | AX1800 XPON VoIP Router |
|---|---|
| XPON Port | 1 × SC/APC GPON/EPON Port |
| WAN/LAN Port | 1 × 10/100/1000Mbps RJ45 WAN/LAN |
| LAN Ports | 3 × 10/100/1000Mbps RJ45 |
| Phone Port | 1 × FXS (RJ11) |
| USB Port | 1 × USB 2.0 |
| Antennas | 4 × External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax/ac/n/a (5GHz), IEEE 802.11ax/n/b/g (2.4GHz) |
| Wireless Speed | 1201Mbps (5GHz) + 574Mbps (2.4GHz) |
| Wireless Security | WPA/WPA2/WPA3 |
| Advanced Features | OFDMA, MU-MIMO, Beamforming, EasyMesh |
| VOICE FEATURES | |
|---|---|
| VoIP Protocol | SIP v1 / v2 |
| Voice Services | Caller ID, Call Waiting, Call Forwarding, 3-Way Conference |
| Codec | G.711, G.722, G.729, G.726 |
| Management | TR-104 Remote VoIP Provisioning |
| NETWORK | |
|---|---|
| Network Protocol | IPv4 / IPv6 |
| IPTV | IGMP Proxy, Snooping, Bridge, Tag VLAN |
| VPN | PPTP, IPSec, OpenVPN Server |
| Management | Web GUI, Aginet App, OMCI, TR-069, TR-369 |
| GENERAL | |
|---|---|
| Power Supply | 12V DC / 1.5A |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Installation | Desktop |
| Dimensions | Compact Desktop Design |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link XX230v is an AX1800 Wi-Fi 6 XPON router with built-in VoIP, supporting GPON/EPON dual mode, EasyMesh, Gigabit Ethernet, and an FXS phone port. It provides high-speed fiber connectivity and reliable voice services for homes and small businesses.
